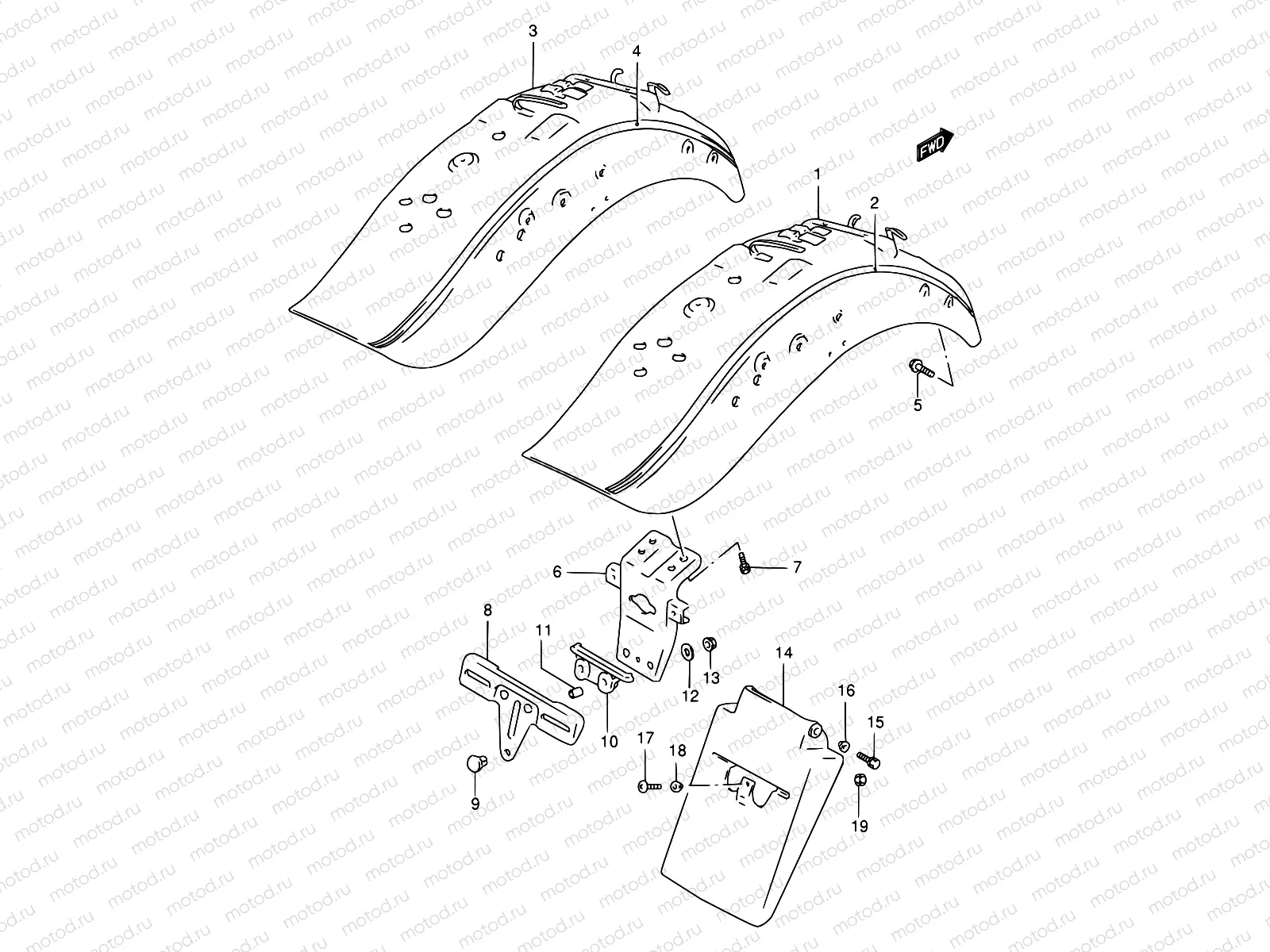

44A - REAR FENDER (MODEL V/W)

44A - REAR FENDER (MODEL V/W)
Например: 63100-38B40-E6L
1
63100-38B40-E6L
Fender, rear
1
63100-38B40-G2F
ender, rear
1
63100-38B20-G2P
Fender, rear
1
63100-38B20-J4U
REAR FENDER
1
63100-38B40-J4U
Fender, rear
2
68170-38B01-J5S
.tape set, rear fender
2
68170-38B01-J5T
.tape set, rear fender
3
63100-38B30-G2E
Fender, rear
4
68170-38B11-G2W
Tape set,rr fnd
5
01550-0820A
БОЛТ
102 ₽/шт
6
63460-38B10
racket,license
7
01570-0612A
Болт
85 ₽/шт
8
63463-38B10
PLATE,RR LICENSE
3 030 ₽/шт
9
09321-08005
Damper
10
63464-38B01
Cushion,rr lice
11
09180-05050
Кольцо/шайба
3 010 ₽/шт
12
09160-05501
Шайба (5.5X20X1.2)
81 ₽/шт
13
08316-2005A
Гайка
85 ₽/шт
14
63311-38B00
EXTENSION,RR FENDER
2 620 ₽/шт
15
01570-0616A
Болт
85 ₽/шт
16
09169-06045
Шайба
1 060 ₽/шт
17
02112-3612A
Болт
1 250 ₽/шт
18
09169-06033
Шайба
85 ₽/шт
19
08319-2106A
Гайка
114 ₽/шт
