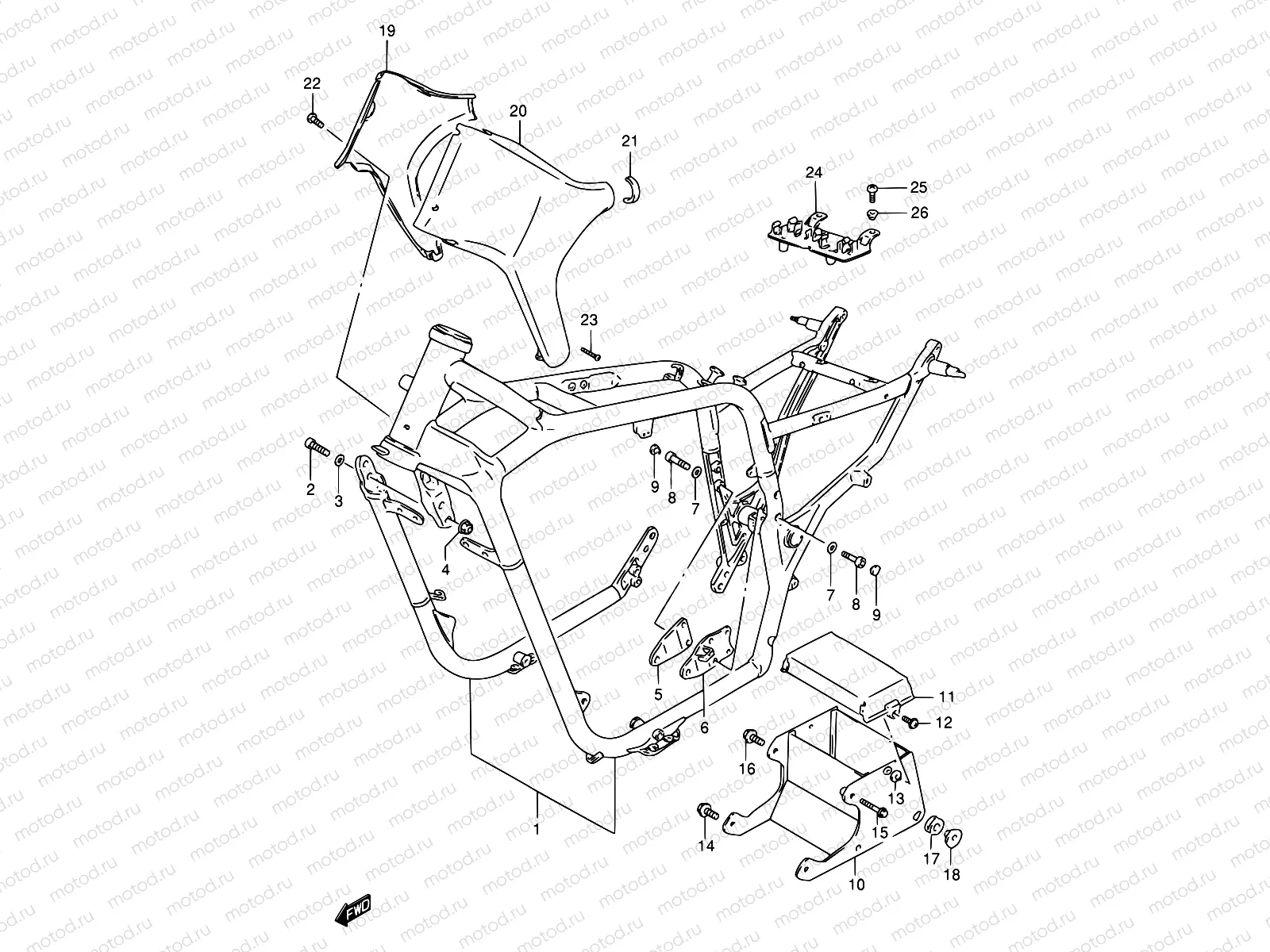

34B - FRAME (MODEL W/X)

34B - FRAME (MODEL W/X)

Например: 41101-38822-YAY

1

41101-38822-YAY

Frame set

1

41101-38822-22U

Frame comp, j2p

1

41101-38822-YD8

FRAME SET

1

41101-38822-Y7F

rame set (brown)

2

09106-10019

BOLT(10X33)

2 310 ₽/шт

3

09164-10010

Шайба

3 250 ₽/шт

4

08319-3110B

Гайка

1 920 ₽/шт

5

41951-38B00-33J

Plate,eng mnt 4

5

41951-38B00-22U

Plate, no.4 rh (maroon)

5

41951-38B00-Y2D

Plate, no.4 rh (silver)

5

41951-38B00-33J

Plate,eng mnt 4

6

41960-38B00-33J

Plate, no.4 lh (maroon)

1 799 ₽/шт

6

41960-38B00-22U

Plate,mount,4,l

6

41960-38B00-Y2D

Plate, no.4 lh (silver)

6

41960-38B00-Y7F

Plate, no.4 lh (brown)

7

09164-08015

Шайба

162 ₽/шт

8

09106-08072

BOLT(8X32)

3 010 ₽/шт

9

09250-06004

CAP(OD:14.5)

97 ₽/шт

10

41540-38B02

HOLDER,BATTERY

11 104 ₽/шт

11

33658-38B00

Крышка аккумулятора

2 295 ₽/шт

12

09138-05012

Болт

97 ₽/шт

13

09169-05014

Шайба

2 181 ₽/шт

14

01550-0616B

БОЛТ

81 ₽/шт

15

01550-0820A

БОЛТ

102 ₽/шт

16

09103-08222

BOLT(8X40)

179 ₽/шт

17

09320-12042

CUSHION

2 230 ₽/шт

18

09301-08009

Кольцо/шайба

3 400 ₽/шт

19

47350-38B01-13L

COVER,FRAME HEAD,R(13L)

15 523 ₽/шт

19

47350-38B01-22U

Cover,frm hd.,r

19

47350-38B01-13L

COVER,FRAME HEAD,R(13L)

15 523 ₽/шт

20

47360-38B11-YAY

COVER,FRAME HEAD,L(BLACK)

16 930 ₽/шт

20

47360-38B11-22U

Cover,frm hd.,l

20

47360-38B11-YAY

COVER,FRAME HEAD,L(BLACK)

16 930 ₽/шт

21

47359-38B00

PROTECTOR,FRAME HEAD COVER

164 ₽/шт

22

02142-0610B

Винт держатель

85 ₽/шт

23

02112-0425B

Болт

85 ₽/шт

24

47411-38B02

HOLDER,COUPLER

1 263 ₽/шт

25

02142-0616A

Болт

81 ₽/шт

26

09169-06010

WASHER

211 ₽/шт
