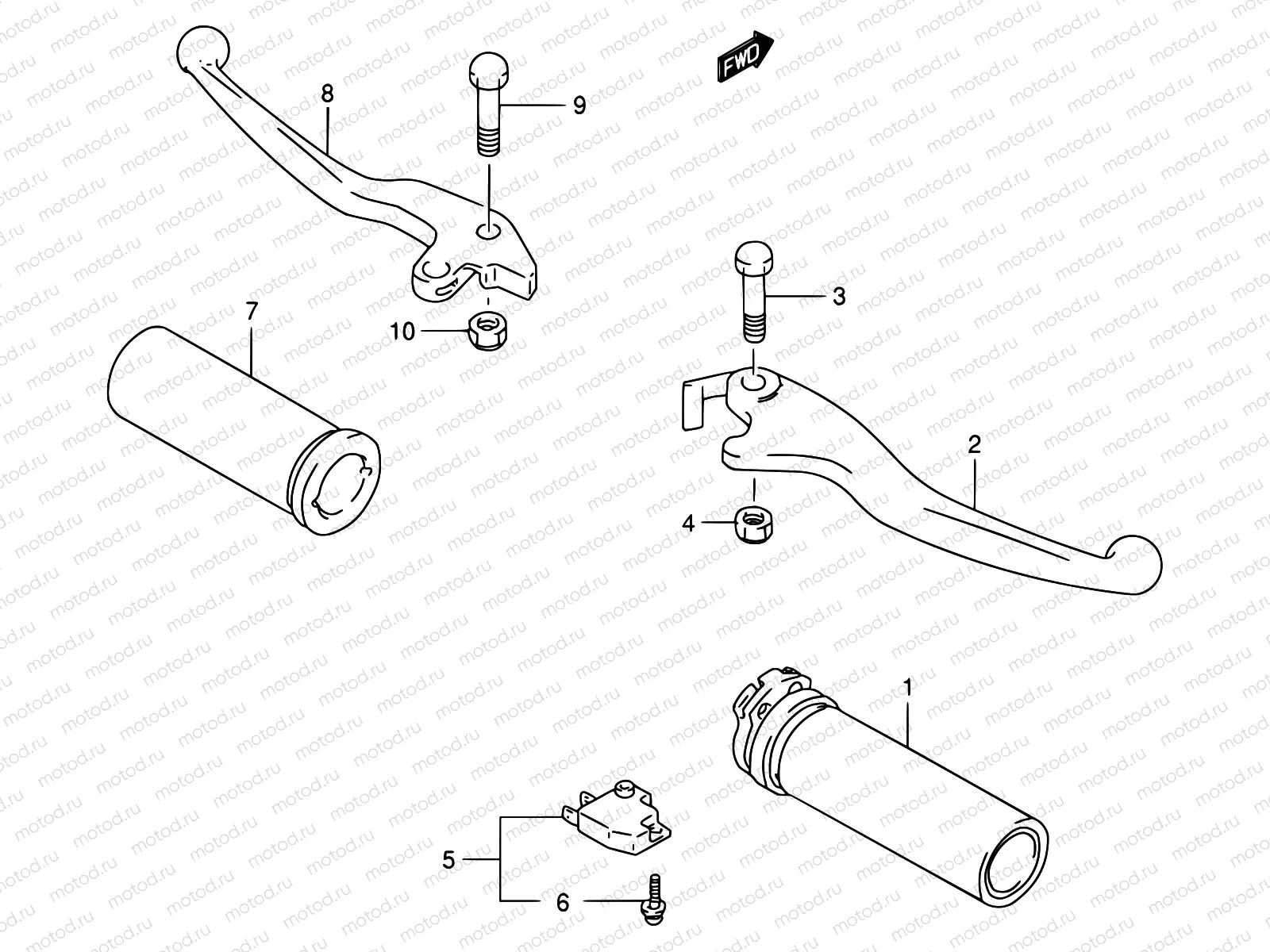

44A - HANDLE LEVER (MODEL S/T/V)

44A - HANDLE LEVER (MODEL S/T/V)
Например: 57110-26D01
1
57110-26D01
Grip,throttle
8 042 ₽/шт
2
57420-24B01
Рукоятка
3 949 ₽/шт
3
57431-38A10
BOLT,LEVER SET
477 ₽/шт
4
08319-2106A
Гайка
114 ₽/шт
5
57460-14J02
Switch Assy,stop
3 366 ₽/шт
6
57465-17C00
Болт
170 ₽/шт
7
57210-26D01
КОЖУХ РУЧКИ, ЛЕВЫЙ
1 938 ₽/шт
8
57621-38A02
Рукоятка муфты
7 140 ₽/шт
9
57431-38A10
BOLT,LEVER SET
477 ₽/шт
10
08319-2106A
Гайка
114 ₽/шт
