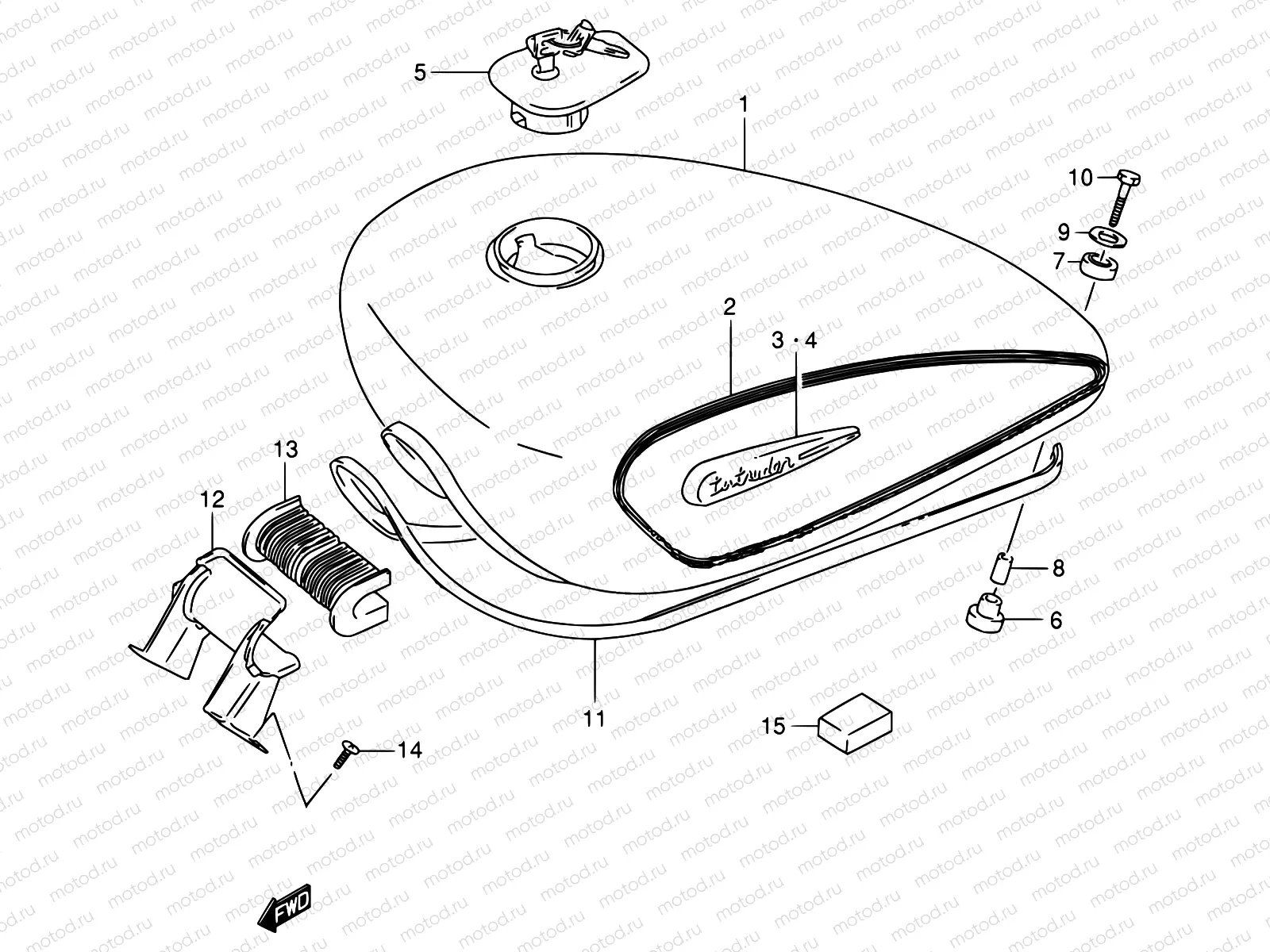

38C - FUEL TANK (MODEL V)

38C - FUEL TANK (MODEL V)

Например: 44100-38E10-Y0N

1

44100-38E10-Y0N

TANKJ ASSY,FUEL(BLUE)

1

44100-38E10-19A

Fuel tank (Red)

1

44100-38E10-33J

Fuel tank (Black)

1

44100-38E10-33J

Fuel tank (Black)

2

68110-38A10-G4M

.tape set, fuel tank

2

68110-38A10-G8B

.tape set, fuel tank

2

68110-38A10-G4L

.tape set, fuel tank

3

68111-38E00

MBLEM,FUEL TANK,R

3 949 ₽/шт

4

68121-38E00

MBLEM,FUEL TANK,L

5 373 ₽/шт

5

44200-38820

CAP SET,FUEL TANK

9 384 ₽/шт

6

09320-10038

CUSHION

115 ₽/шт

7

09320-14013

Валик топливного бака

221 ₽/шт

8

09180-06273

Кольцо/шайба

2 460 ₽/шт

9

09160-06501

Шайба

102 ₽/шт

10

01500-0635A

Болт

1 330 ₽/шт

11

68241-04X50-00B

MOLDING

1 696 ₽/шт

12

44250-38A01-019

Кронштейн

6 803 ₽/шт

13

44511-38A01

CUSHION,FUEL TANK FR

790 ₽/шт

14

02112-7616A

Болт

102 ₽/шт

15

56314-48B10

CUSHION

210 ₽/шт
