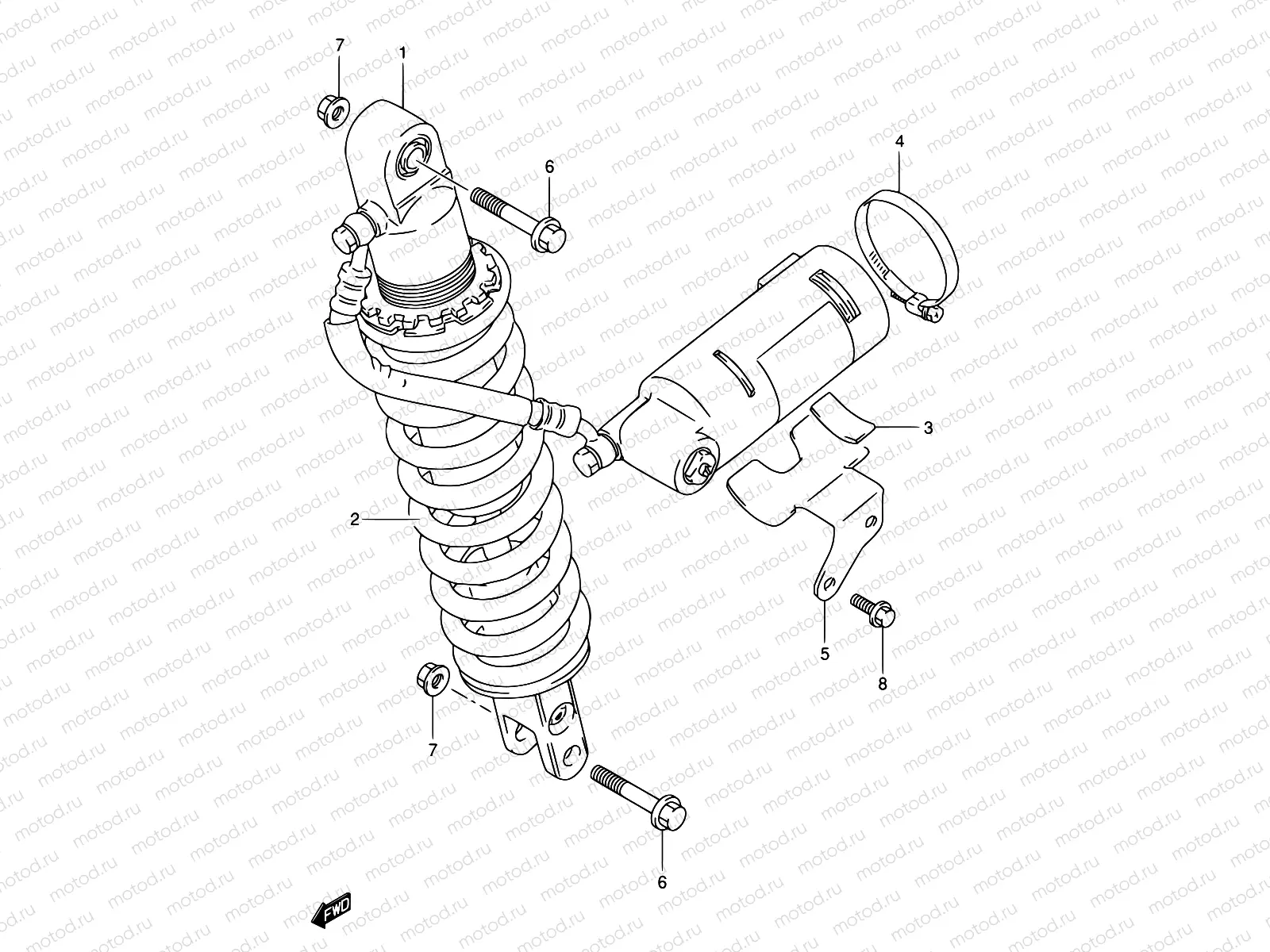

44 - REAR SHOCK ABSORBER

44 - REAR SHOCK ABSORBER
Например: 62100-14D61-1TS
1
62100-14D61-1TS
Amortisseur arrière
1
62100-14D40-1TS
Absorber assy, rear shock (white)
1
62100-14D41-1TS
Absorber assy, rear shock (white)
2
62211-14D00-28W
Spring (white)
2
62211-14D60-28W
.spring (white)
2
62211-14D60-1TS
.spring (white)
2
62211-14D40-1TS
.spring (white)
3
53146-20C01
Damper
4
09402-60502
CLAMP
7 080 ₽/шт
5
62420-14D10
Bracket,tank
6
62311-28E00
BOLT,RR SHOCK ABSORBER
414 ₽/шт
7
09159-10115
Гайка
289 ₽/шт
8
01550-0610B
Болт
85 ₽/шт
