Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DR 350 SUZUKI DR350 P (E01) SUZUKI 14 - CLUTCH

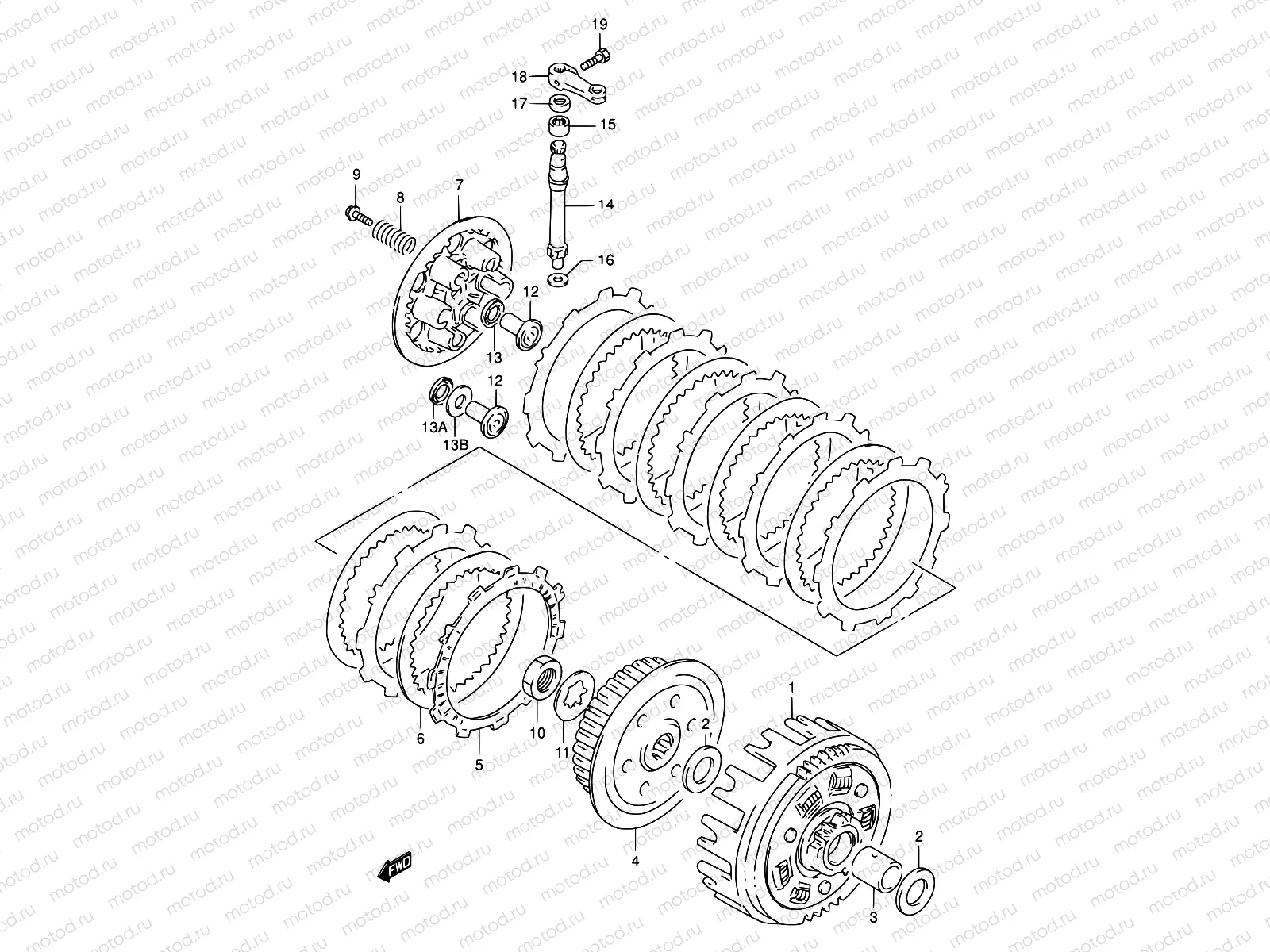

14 - CLUTCH

14 - CLUTCH
Например: 21200-14D11
1
21200-14D11
GEAR ASSY,PRI DRIVEN(62/15
23 460 ₽/шт
2
08211-20363
WASHER
194 ₽/шт
3
09180-20109
SPACER(20X25X29)
1 496 ₽/шт
4
21410-14D00
HUB,CLUTCH SLEEVE
11 985 ₽/шт
5
21441-12D01
Диск сцепления
2 550 ₽/шт
6
21451-28C31
ДИСК СЦЕПЛЕНИЯ
901 ₽/шт
7
21462-00B02
DISC,CLUTCH PRESSURE
8 415 ₽/шт
8
09440-15014
Пружина
187 ₽/шт
9
09116-05020
Болт 5X16
1 250 ₽/шт
10
09140-20001
Гайка
179 ₽/шт
11
09167-20009
Шайба блокирующая
194 ₽/шт
12
23165-44B01
RACK,CLUTCH RELEASE
1 337 ₽/шт
13
09263-10002
ПОДШИПНИК
697 ₽/шт
13
09263-10016
BEARING(10X24X2)
774 ₽/шт
13
08211-10241
Шайба упорная
1 250 ₽/шт
14
23261-14D02
PINION,CLUTCH RELEASE
4 505 ₽/шт
15
09263-12024
BEARING(12X16X10)
663 ₽/шт
16
09181-08139
SHIM ( 8.8X14X1.0 )
162 ₽/шт
17
09285-10004
САЛЬНИК
210 ₽/шт
18
23271-20902
Рычаг вала сцепления
2 899 ₽/шт
19
01550-0616B
БОЛТ
81 ₽/шт
