Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DR 650 SUZUKI DR650SE L2 (E03,E28,E33) SUZUKI 44 - FUEL TANK (DR650SEL2 E33)

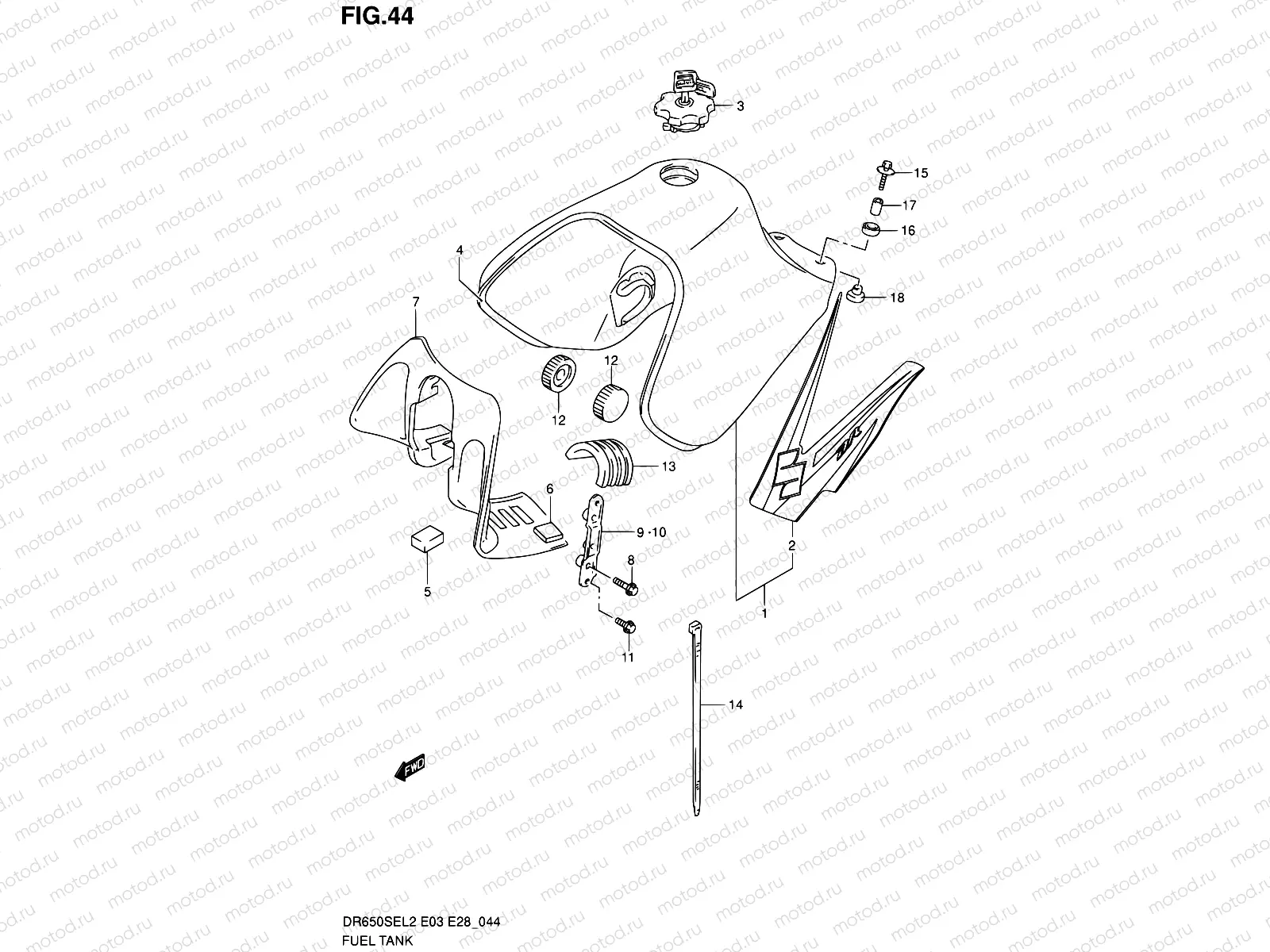

44 - FUEL TANK (DR650SEL2 E33)

44 - FUEL TANK (DR650SEL2 E33)

Например: 44100-32ES0-5UX

1

44100-32ES0-5UX

TANK ASSY,FUEL(WHITE)

80 410 ₽/шт

1

44100-32ES0-YUD

TANK ASSY,FUEL(GRAY)

80 410 ₽/шт

2

68110-32EC0-HLU

TAPE SET,FUEL TANK

10 401 ₽/шт

2

68110-32EC0-JJY

TAPE SET,FUEL TANK

10 401 ₽/шт

3

44200-05820

CAP SET,FUEL TANK

9 892 ₽/шт

4

68241-32E00

MOLDING,FUEL TANK

2 815 ₽/шт

5

51827-01A00

CUSHION,HEAD LAMP HOUSING

533 ₽/шт

6

44831-17B00

CUSHION,OIL TANK UPR

340 ₽/шт

7

44271-32E00

COVER,FUEL TANK FR

2 913 ₽/шт

8

09116-06210

BOLT(6X12)

1 210 ₽/шт

9

44280-32E00

BRACKET,FUEL TANK COVER,R

1 224 ₽/шт

10

44290-32E00

BRACKET,FUEL TANK COVER,L

1 224 ₽/шт

11

01550-0625B

Болт масляного насоса

97 ₽/шт

12

44511-12D00

CUSHION,FUEL TANK FR

510 ₽/шт

13

44541-13E00

CUSHION,FUEL TANK UPR

864 ₽/шт

14

09407-25402

CLAMP(L:250)

238 ₽/шт

15

09116-06214

BOLT(6X30)

146 ₽/шт

16

09320-14022

CUSHION

146 ₽/шт

17

09180-06271

Кольцо/шайба

172 ₽/шт

18

09320-10038

CUSHION

115 ₽/шт
