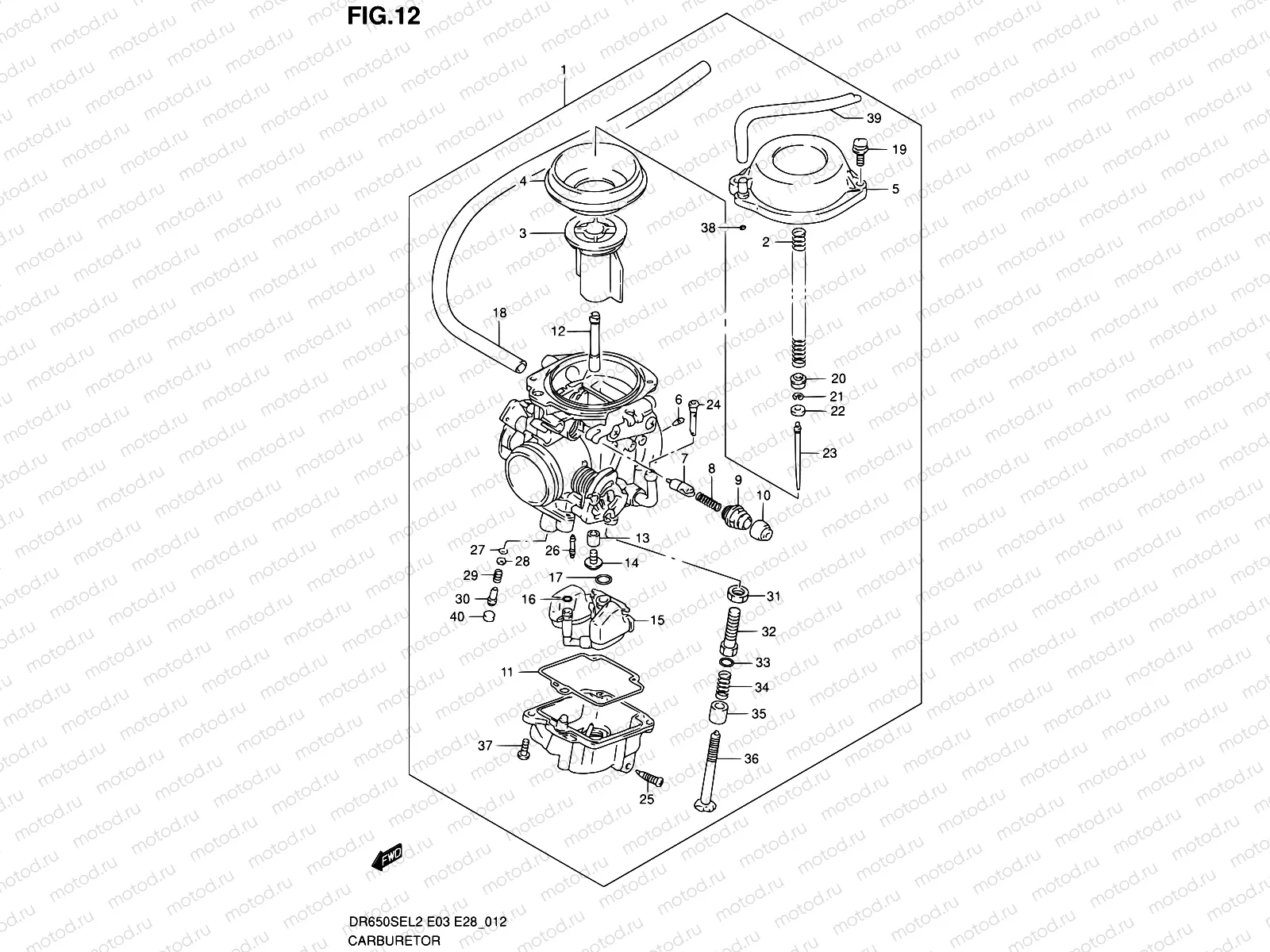

12 - CARBURETOR (DR650SEL2 E28)

12 - CARBURETOR (DR650SEL2 E28)
Например: 13200-32E12
1
13200-32E12
Карбюратор
120 989 ₽/шт
2
13417-17D00
Пружина
655 ₽/шт
3
13501-32E00
VALVE,PISTON
4 653 ₽/шт
4
13507-07D02
iaphragm
3 485 ₽/шт
5
13502-41C00
OVER,DIAPHRAGM
2 581 ₽/шт
6
09493-20007
Жиклер (1.0)
708 ₽/шт
7
13411-12D00
PLUNGER
1 396 ₽/шт
8
13417-22010
Пружина
204 ₽/шт
9
13418-43410
HOLDER,GUIDE
888 ₽/шт
10
13681-04011
CAP
835 ₽/шт
11
13258-44B00
Прокладка крышки поплавковой камеры
767 ₽/шт
12
09494-00884
Жиклер игольчатый
2 717 ₽/шт
13
13331-07D00
RING
1 309 ₽/шт
14
09491-28010
Жиклер главный (140)
594 ₽/шт
15
13250-12EH0
FLOAT/NEEDLE VALVE ASSY
6 412 ₽/шт
16
13374-46710
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
275 ₽/шт
17
13374-35C00
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
275 ₽/шт
18
13683-32E00
HOSE(6.5X10.5X275)
958 ₽/шт
19
02112-7516B
Винт
102 ₽/шт
20
13331-12D00
RING
348 ₽/шт
21
13394-31210
CLIP,NEEDLE
238 ₽/шт
22
13387-07D00
RING
459 ₽/шт
23
13383-32E10
Жиклер
1 753 ₽/шт
24
13236-12C00
FILTER
833 ₽/шт
25
13247-02340
Заглушка дренажная
258 ₽/шт
26
09492-42010
Жиклер пропускной (42.5)
711 ₽/шт
27
13295-29901
O-Ring, Pilot Air Screw
210 ₽/шт
28
13291-29900
Шайба
162 ₽/шт
29
13268-47070
Пружина
272 ₽/шт
30
13279-47070
Винт топливный
884 ₽/шт
31
13607-37010
Гайка
180 ₽/шт
32
13267-31D00
ADJUSTER
1 709 ₽/шт
33
13615-43010
Шайба
170 ₽/шт
34
13271-33C00
Пружина
238 ₽/шт
35
13432-95210
RING
368 ₽/шт
36
13267-31D10
ADJUSTER
927 ₽/шт
37
13601-05148-XC0
Винт,5X14
211 ₽/шт
38
13278-02340
O RING
162 ₽/шт
39
09355-45857-600
Шланг
1 433 ₽/шт
40
13281-05A00
PLUG
170 ₽/шт
