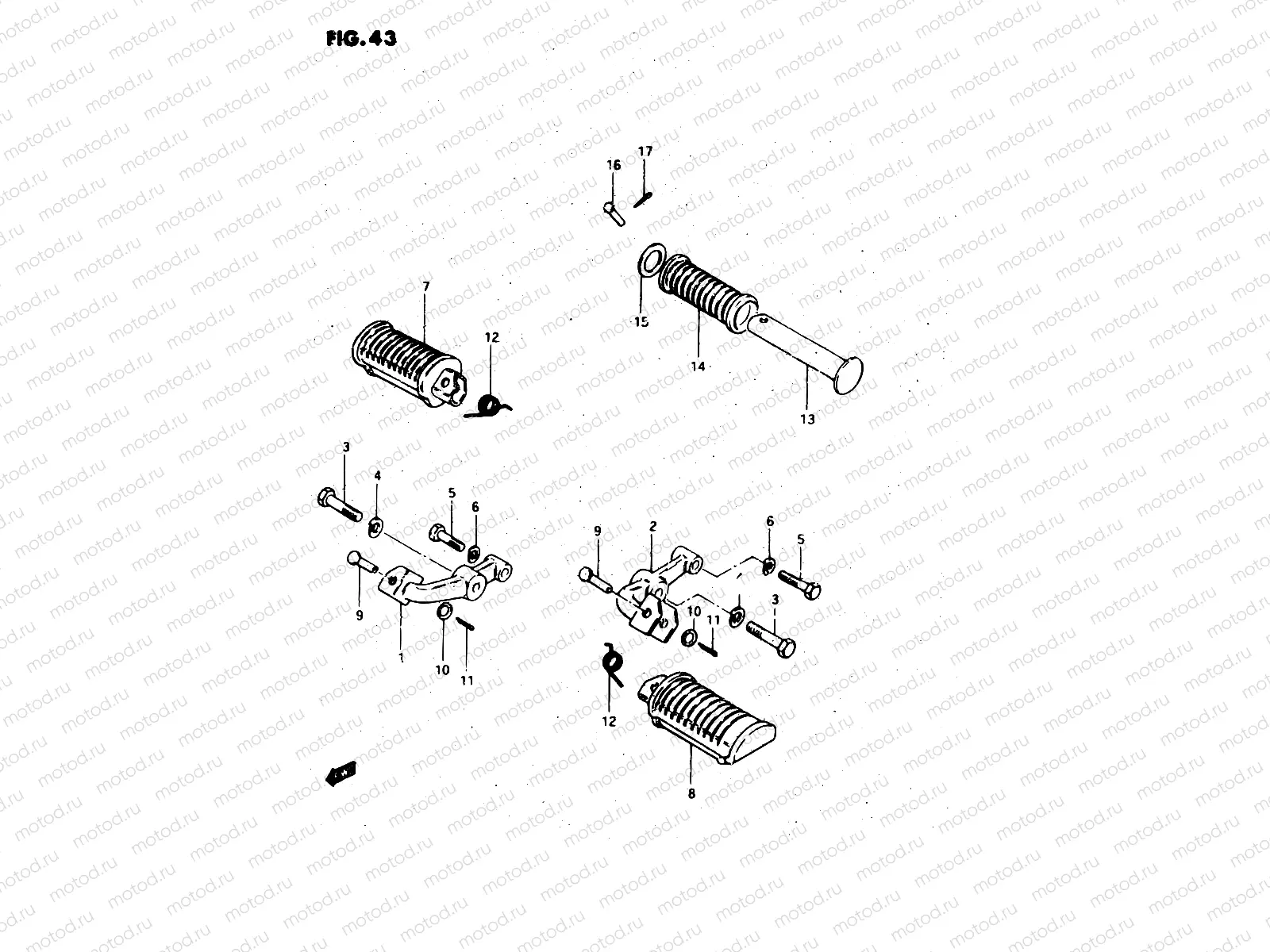

43 - FOOTREST

43 - FOOTREST

Например: 43510-44200-019

1

43510-44200-019

Bar, footrest rh (black)

2

43520-44010-019

Bar, footrest lh (black)

3

09100-10184

BOLT(10X40)

204 ₽/шт

4

08321-01107

Шайба, стопорная

85 ₽/шт

5

01500-0840A

Болт

102 ₽/шт

6

08321-01087

Пластина замка

81 ₽/шт

7

43550-37310

Rubber,pillion Footrest,rh

2 805 ₽/шт

8

43560-37310

Rubber,pillion Footrest,lh

2 805 ₽/шт

9

09200-08002

ШТИФТ

194 ₽/шт

10

08322-01087

Шайба

81 ₽/шт

11

04111-2015A

Штифт

81 ₽/шт

12

09448-14012

Пружина

258 ₽/шт

13

43610-44000

Bar,rr footrest

14

43612-03001

RUBBER,PILLION FOOTREST

323 ₽/шт

15

09160-19024

Шайба

129 ₽/шт

16

09200-06010

PIN

1 250 ₽/шт

17

04111-2015A

Штифт

81 ₽/шт
