Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GS 450 SUZUKI GS450E Z SUZUKI 13 - CARBURETOR

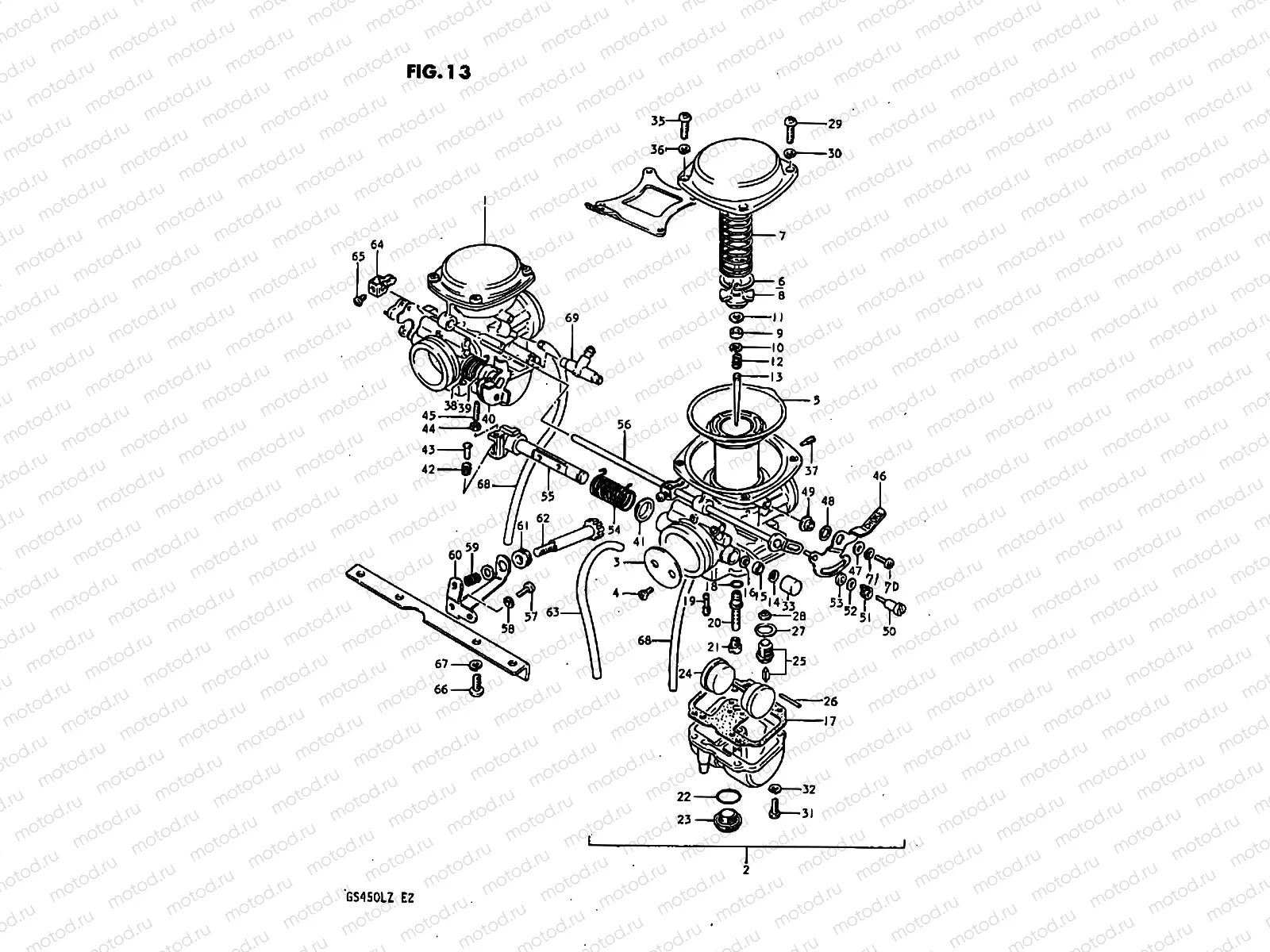

13 - CARBURETOR

13 - CARBURETOR

Например: 13201-44100

1

13201-44100

.carburetor assy, rh

1

13201-44120

.carburetor assy, rh

2

13202-44100

.carburetor assy, lh

2

13202-44120

.carburetor assy, lh

3

13551-44110

..valve, throttle (135)

4

13604-44080

Болт

235 ₽/шт

5

13500-44110

Diaphragm,carbu

6

13581-44030

E RING

489 ₽/шт

7

13503-44030

..spring

8

13389-44030

Держатель направляющей

868 ₽/шт

9

13387-44030

RING

323 ₽/шт

10

13394-31210

CLIP,NEEDLE

238 ₽/шт

11

13382-44030

Шайба

4 110 ₽/шт

12

13388-44030

Пружина

1 143 ₽/шт

13

13383-44100

..needle, jet (4c3-3)

13

13383-44120

..needle, jet (4f29-3)

14

13617-44080

E RING

231 ₽/шт

15

13557-47070

GASKET,THROTTLE SHAFT

301 ₽/шт

16

13556-05A11

Seal,throttle Shaft

238 ₽/шт

17

13251-44012

Поплавок прокладки

880 ₽/шт

18

09280-03003

O RING(D:1.05,ID:3.1)

1 090 ₽/шт

19

09492-17005

Жиклер

723 ₽/шт

19

13200-44100

Carburettor

19

13200-44120

Carburettor

20

09494-00271

..jet, needle (y-6)

20

09494-00282

..jet, needle (y-2)

21

09491-23019

Жиклер главный (117.5)

1 615 ₽/шт

21

09491-22014

JET,MAIN(112.5)

904 ₽/шт

22

13249-41310

O RING,DRAIN PLUG

289 ₽/шт

23

13247-32210

Дренаж

1 048 ₽/шт

24

13252-31210

Поплавок

2 717 ₽/шт

25

13370-44010

Valve assy,need

26

13254-01010

PIN,FLOAT

162 ₽/шт

27

13392-16600

Прокладка клапана

172 ₽/шт

28

13376-19F00

Фильтр-сеточка

581 ₽/шт

29

02112-05167

Болт

81 ₽/шт

30

08321-0105A

Пластина замка

81 ₽/шт

31

02112-0412A

Болт

85 ₽/шт

32

08321-0104A

Пластина замка

82 ₽/шт

33

13578-47070

CAP

364 ₽/шт

34

13436-44010

GASKET,STARTER BODY

35

02112-05167

Болт

81 ₽/шт

36

08321-0105A

Пластина замка

81 ₽/шт

37

09493-32003

Жиклер-проводник воздуха

845 ₽/шт

38

13573-31610

..spring

39

13574-44110

..ring

40

13550-44120

..shaft

41

13387-44110

..ring

42

13268-44110

..spring

43

13563-44110

..pin

44

13607-47070

Гайка

170 ₽/шт

45

13605-47070

Болт

407 ₽/шт

46

13413-44110

..lever, starter

47

09160-04015

Шайба

1 170 ₽/шт

48

13615-44010

..washer

49

13432-31210

..ring

50

13438-33110

Болт

422 ₽/шт

51

13388-44110

..spring

52

13615-43010

Шайба

170 ₽/шт

53

13432-33110

Кольцо

305 ₽/шт

54

13573-44110

..srping

55

13550-44110

..shaft

56

13410-44110

.shaft

57

02112-0508A

Винт №1

85 ₽/шт

58

08321-0105A

Пластина замка

81 ₽/шт

59

13271-93011

Пружина

204 ₽/шт

60

13627-44110

.bracket

61

13681-44110

.cap

62

13267-47070

Screw

63

09355-45857-600

Шланг

1 433 ₽/шт

64

13422-44110

.arm, starter

65

13605-20C00

Болт

204 ₽/шт

66

02112-06127

Болт

81 ₽/шт

66

02122-0612B

Болт

82 ₽/шт

67

08321-01067

Шайба, стопорная

81 ₽/шт

68

09355-45857-600

Шланг

1 433 ₽/шт

69

13685-44110

Nipple,carburet
