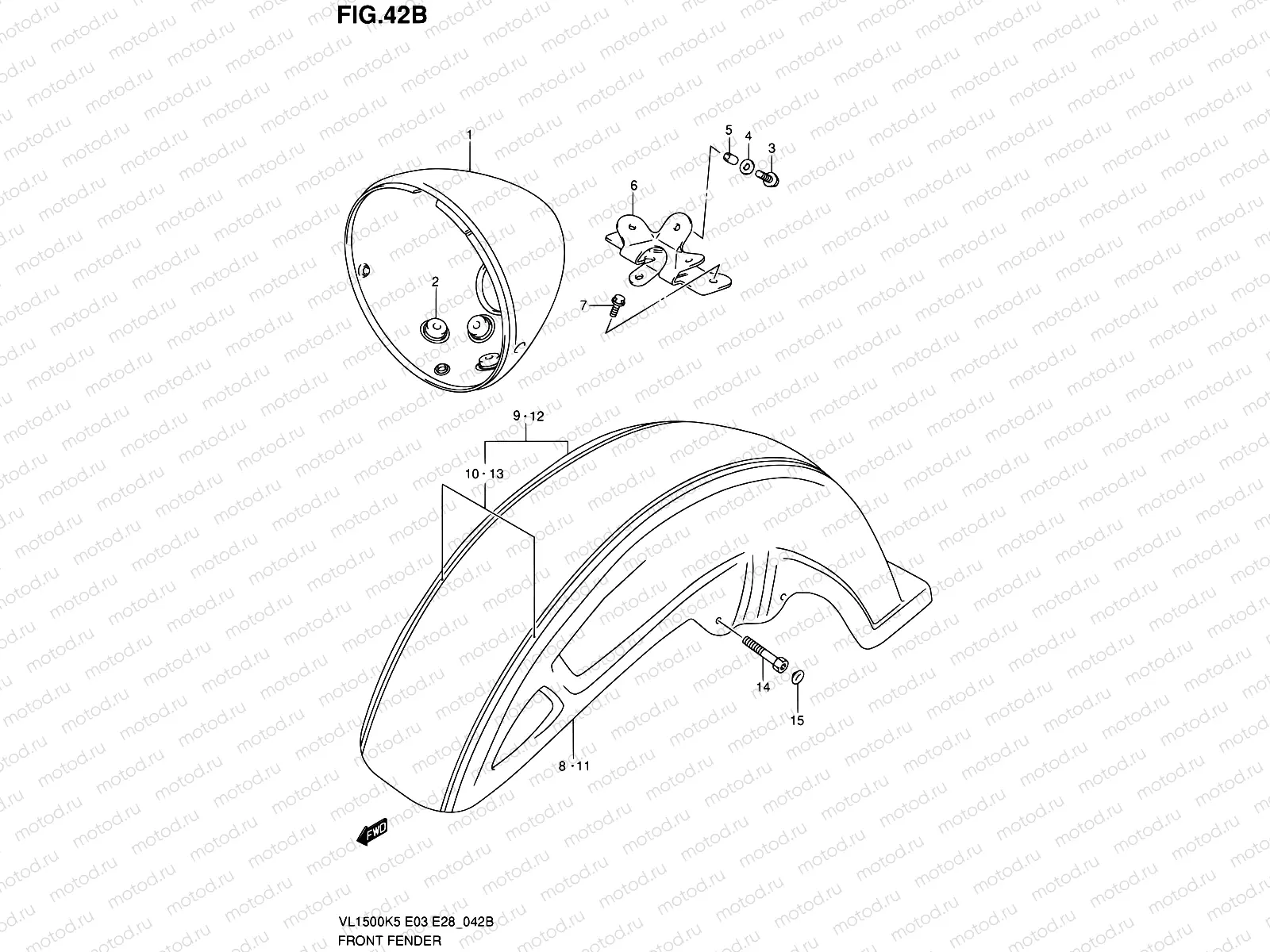

42B - FRONT FENDER (MODEL K8)

42B - FRONT FENDER (MODEL K8)
Например: 51800-10FA0
1
51800-10FA0
HOUSING ASSY,HEADLAMP
29 580 ₽/шт
2
09320-09010
САЙЛЕНТБЛОК
114 ₽/шт
3
01500-0625B
Болт
1 330 ₽/шт
4
09160-06152
Шайба
1 170 ₽/шт
5
09180-06307
Кольцо/шайба
179 ₽/шт
6
51850-10FA0
BRACKET,HEADLAMP HOUSING
3 265 ₽/шт
7
01550-0616B
БОЛТ
81 ₽/шт
8
53110-10F30-13L
ender,fr
82 280 ₽/шт
9
53100-10FC0-EUJ
Крыло переднее
102 102 ₽/шт
10
68150-10FC0-EZB
.tape set
11
53110-10F30-13L
ender,fr
82 280 ₽/шт
12
53100-10FB0-CRT
Крыло переднее
77 044 ₽/шт
12
53100-10FB0-EUA
Крыло переднее
102 102 ₽/шт
13
68150-10F30-EZK
Эмблема
9 775 ₽/шт
13
68150-10F30-EZL
Эмблема
9 775 ₽/шт
14
07130-08407
Болт крепёжный
153 ₽/шт
15
09250-06011
КОЛПАЧОК БОЛТА КРЕПЛЕНИЯ
194 ₽/шт
