Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VL 1500 Boulevard C90 SUZUKI VL1500 K8 Boulevard C90 SUZUKI (VIN: JS1VY52A) 20A - TRANSMISSION (MODEL K6/K7/K8/K9)

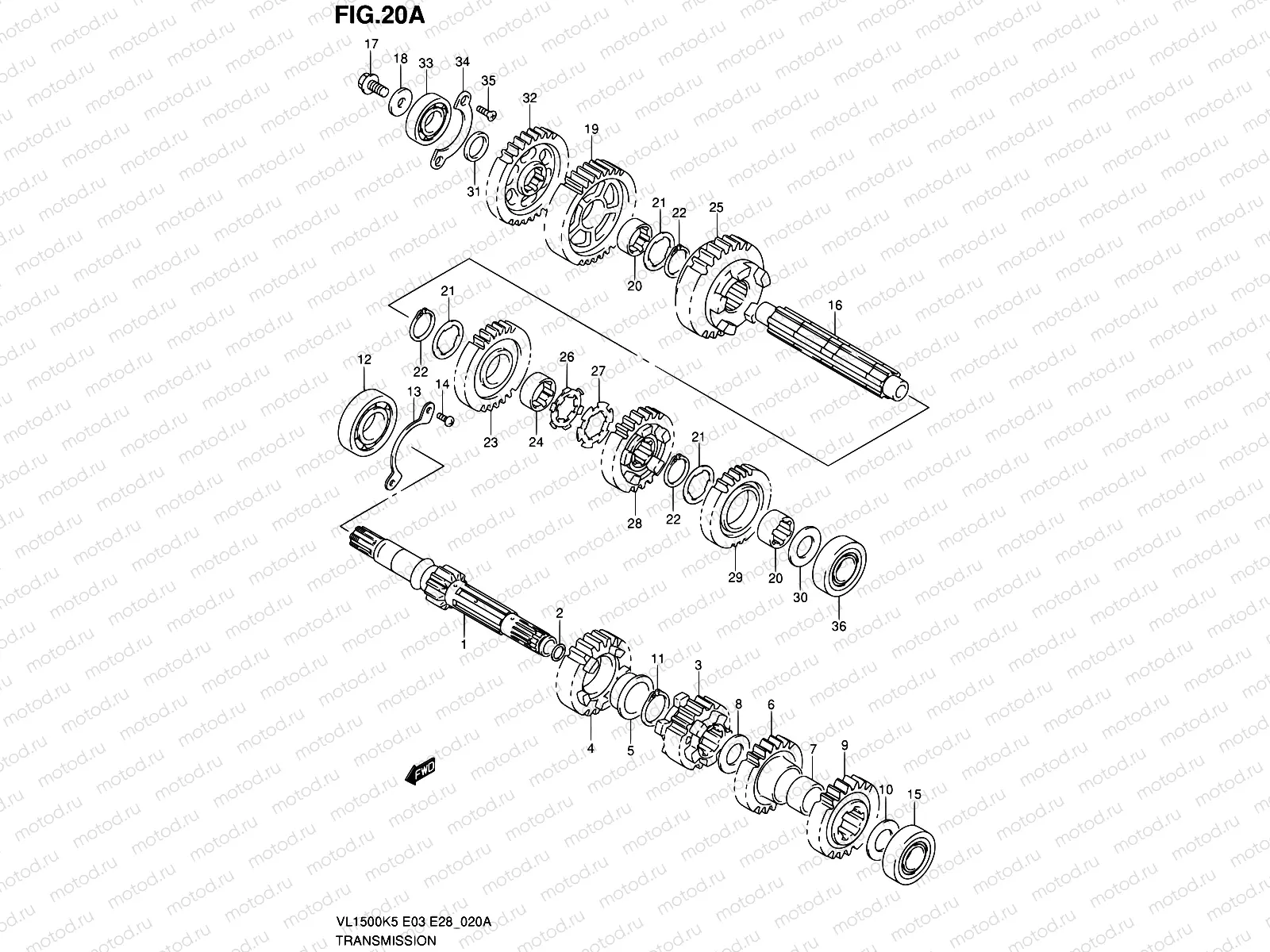

20A - TRANSMISSION (MODEL K6/K7/K8/K9)

20A - TRANSMISSION (MODEL K6/K7/K8/K9)

Например: 24120-38B20

1

24120-38B20

SHAFT,COUNTER(NT:12)

20 919 ₽/шт

2

09280-17004

O RING(D:1.9,ID:16.6)

1 840 ₽/шт

3

24221-10F00

GEAR,2ND DRIVE(NT:17)

22 882 ₽/шт

4

24231-10F00

GEAR,3RD DRIVE(NT:21)

21 667 ₽/шт

5

09301-28001

BUSH(28X32X2)

14 700 ₽/шт

6

24241-38B30

GEAR,4TH DRIVE

25 822 ₽/шт

7

24242-38B10

USH,4TH DRIVE GEAR

2 405 ₽/шт

8

09181-22195

Шайба

2 500 ₽/шт

9

24251-38B20

GEAR,5TH DRIVE(NT:26)

11 378 ₽/шт

10

09181-20223

SHIM(20X32X1)

1 720 ₽/шт

11

08331-31289

CIRCLIP

1 250 ₽/шт

12

09262-25080

Подшипник

1 938 ₽/шт

13

24741-38A00

RETAINER,CNTR SHAFT BEARING

368 ₽/шт

14

02112-0612B

Болт

85 ₽/шт

15

09262-20080

Подшипник

1 938 ₽/шт

16

24131-38B20

SHAFT,DRIVE

30 770 ₽/шт

17

09103-10112

BOLT(10X24)

211 ₽/шт

18

08211-10305

Шайба

2 030 ₽/шт

19

24311-10F00

Gear,1st driven

20

24332-24A00

Втулка

2 380 ₽/шт

21

09167-28001

WASHER,LOCK

2 310 ₽/шт

22

08331-31289

CIRCLIP

1 250 ₽/шт

23

24321-10F00

Gear,2nd driven

24

24332-49000

BUSH,3RD DRIVEN GEAR

1 189 ₽/шт

25

24331-10F00

GEAR,3RD DRIVEN(NT:28)

25 822 ₽/шт

26

09169-28001

Пластина замка

1 840 ₽/шт

27

09167-28002

Пластина замка

2 310 ₽/шт

28

24341-10F00

Gear,4th driven

29

24351-10F00

Gear,5th driven

30

08211-20382

Шайба

1 920 ₽/шт

31

09160-22032

Шайба

238 ₽/шт

32

24621-38B00

GEAR,OVER DRIVING DRIVE(NT:34)

14 780 ₽/шт

33

09262-22029

Подшипник

4 731 ₽/шт

34

24741-38401

RETAINER,CNTR SHAFT BEARING

438 ₽/шт

35

09126-06011

SCREW,6X12

81 ₽/шт

36

09262-20080

Подшипник

1 938 ₽/шт
