Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GS 500 SUZUKI GS500E K (E01,E02,E04,E15,E16,E17,E21,E22,E24,E25,E34,E39,E53) SUZUKI (VIN: GM51B) 42 - SEAT (MODEL K/L/M/N/P/R)

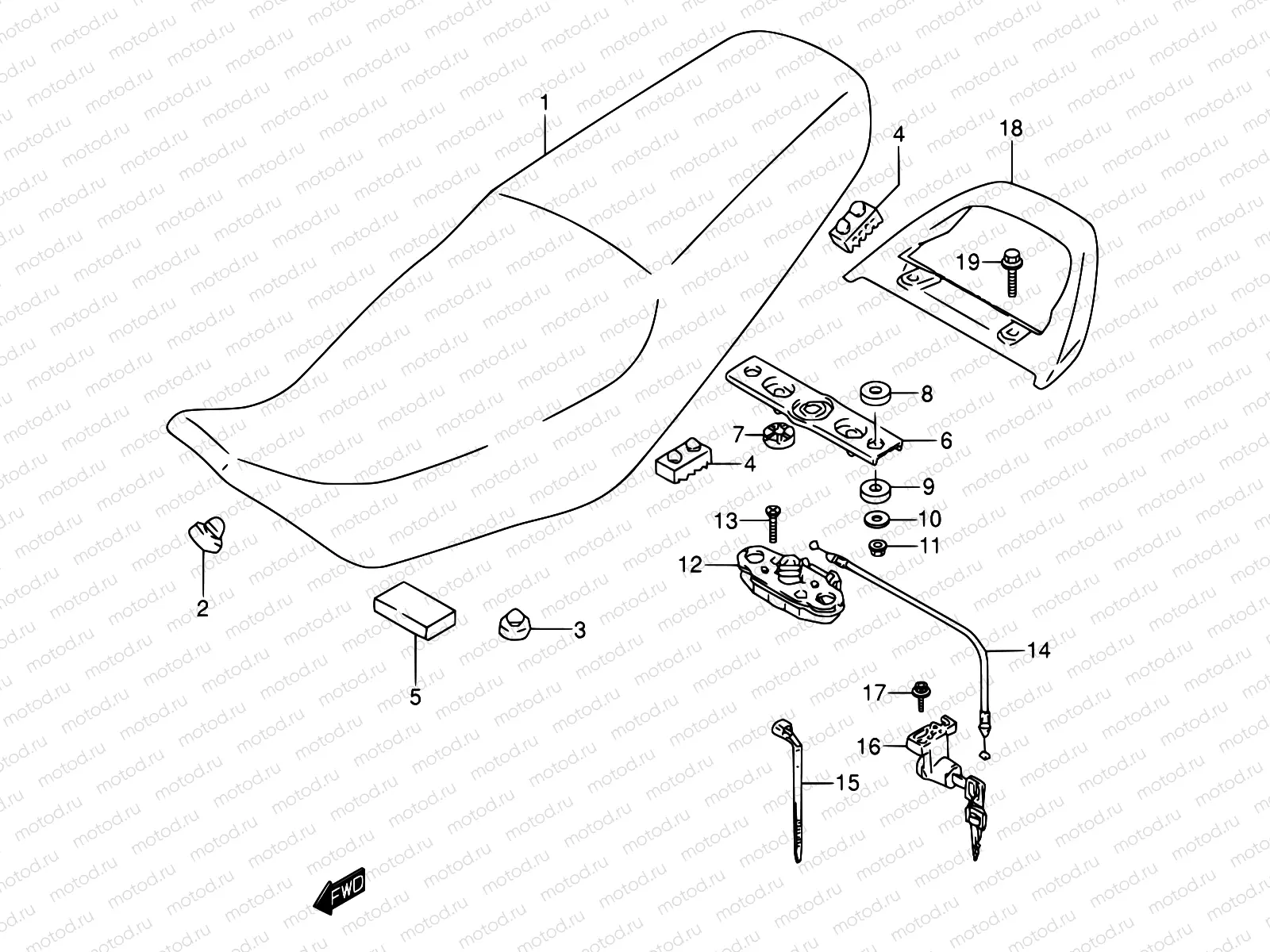

42 - SEAT (MODEL K/L/M/N/P/R)

42 - SEAT (MODEL K/L/M/N/P/R)
Например: 45100-01D10-58R
1
45100-01D10-58R
Seat assy
1
45100-01D00-58R
Seat set (black)
2
09329-10001
CUSHION
194 ₽/шт
3
09321-10012
САЙЛЕНТБЛОК
178 ₽/шт
4
45149-31300
CUSHION,SEAT(40X20X15)
510 ₽/шт
5
94982-C2940-0J000
ushion, battery stopper
209 ₽/шт
6
45215-22A00
STRIKER,SEAT LOCK
2 326 ₽/шт
7
45213-13601
CUSHION,SEAT LOCK(10X22X6)
194 ₽/шт
8
45126-41B00
CUSHION,UPR
164 ₽/шт
9
45127-41B00
CUSHION,LWR
164 ₽/шт
10
08212-06201
Шайба
81 ₽/шт
11
08319-31067
Гайка
153 ₽/шт
12
45220-47H00
BRACKET,SEAT SUPPORT
7 390 ₽/шт
13
02122-0630B
Болт
1 250 ₽/шт
14
45280-01D00
Кабель замка
923 ₽/шт
15
09407-14403
КЛЕММА
221 ₽/шт
16
95700-31841
LOCK SET,SEAT
6 035 ₽/шт
17
07120-0510B
БОЛТ
1 490 ₽/шт
18
46211-C01D0-0JETN
Handle, pillion rider
14 685 ₽/шт
19
01550-0825A
Болт
119 ₽/шт
