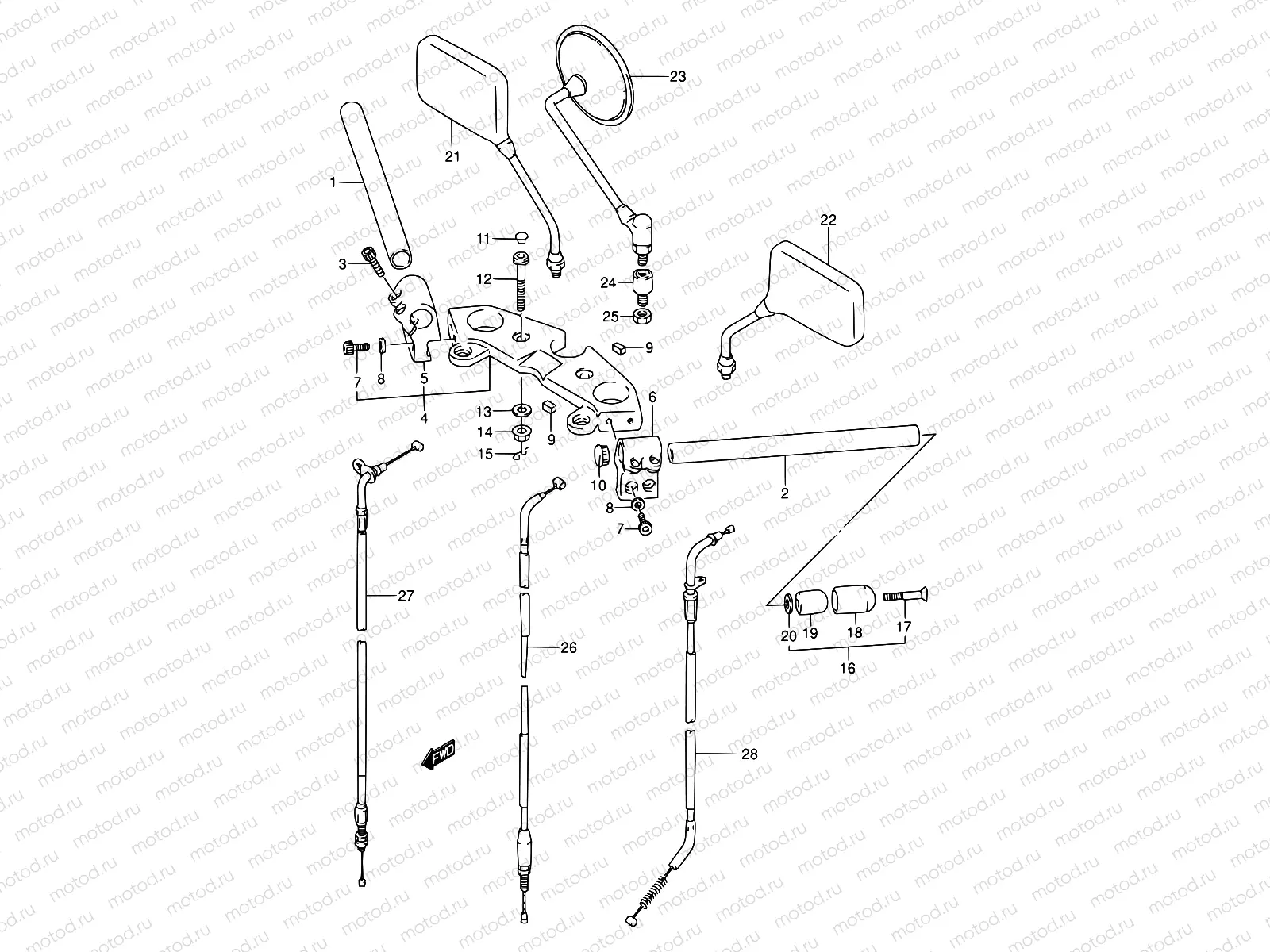

38 - HANDLEBAR (MODEL K)

38 - HANDLEBAR (MODEL K)
Например: 56110-01D00
1
56110-01D00
HANDLEBAR,R
3 910 ₽/шт
2
56150-01D01
Handlebar,l
3
07130-06257
Болт
102 ₽/шт
4
56200-01D00-0FP
Holder assy, handlebar (silver)
5
56211-01D10-0FP
.holder, rh
6
56221-01D10-0FP
.holder, lh
7
07130-08257
Болт
2 070 ₽/шт
8
09164-08015
Шайба
162 ₽/шт
9
56241-01D00
Валик держателя
352 ₽/шт
10
57215-33400
Крышка
364 ₽/шт
11
09250-06011
КОЛПАЧОК БОЛТА КРЕПЛЕНИЯ
194 ₽/шт
12
09106-10055
BOLT(10X66)
6 690 ₽/шт
13
09160-10094
WASHER(10.5X30X3.2)
119 ₽/шт
14
08319-3110B
Гайка
1 920 ₽/шт
15
04111-2020A
Штифт
81 ₽/шт
16
56200-01831
Balancerset
17
02122-0660B
Болт
81 ₽/шт
18
56274-49310
CAP,HANDLE BALANCER
12 395 ₽/шт
19
56271-49310
BALANCER,HANDLEBAR
1 666 ₽/шт
20
56275-34401
SPACER,BALANCER
278 ₽/шт
21
56500-01D02
MIRROR ASSY,RR VIEW,R
11 144 ₽/шт
21
56500-01D12
Mirror assy,rea
22
56600-01D02
MIRROR ASSY,RR VIEW,L
11 144 ₽/шт
22
56600-01D12
Mirror assy,rea
23
56500-080A0
Mirror assy, rear view
24
56700-45400
CUSHION ASSY,RR VIEW MIRROR
1 771 ₽/шт
25
08310-00107
Гайка
85 ₽/шт
26
58200-01D01
Cable assy,clut
27
58300-01D00
Câble de gaz
28
58410-01D01
CABLE,STARTER
3 108 ₽/шт

Узлы для GS500E K (E01,E02,E04,E15,E16,E17,E21,E22,E24,E25,E34,E39,E53) SUZUKI (VIN: GM51B)

1 - CYLINDER HEAD COVER
1 - CYLINDER HEAD COVER
2 - CYLINDER HEAD
2 - CYLINDER HEAD
3 - CYLINDER
3 - CYLINDER
4 - CRANKCASE
4 - CRANKCASE
5 - CRANKCASE COVER
5 - CRANKCASE COVER
6 - OIL FILTER - OIL PUMP
6 - OIL FILTER - OIL PUMP
7 - CRANKSHAFT
7 - CRANKSHAFT
8 - CRANKSHAFT BALANCER
8 - CRANKSHAFT BALANCER
9 - STARTER CLUTCH
9 - STARTER CLUTCH
10 - CAM SHAFT - VALVE (MODEL K/L/M/N/P)
10 - CAM SHAFT - VALVE (MODEL K/L/M/N/P)
11 - CAM CHAIN
11 - CAM CHAIN
12 - CARBURETOR (MODEL K/L/M/N/P)
12 - CARBURETOR (MODEL K/L/M/N/P)
13 - AIR CLEANER
13 - AIR CLEANER
14 - MUFFLER
14 - MUFFLER
14A - SECOND AIR (MODEL N/P/R/S/T:E18,E39)
14A - SECOND AIR (MODEL N/P/R/S/T:E18,E39)
15 - CLUTCH
15 - CLUTCH
16 - TRANSMISSION
16 - TRANSMISSION
17 - GEAR SHIFTING
17 - GEAR SHIFTING
33 - FUEL TANK (MODEL K/L)
33 - FUEL TANK (MODEL K/L)
34 - FUEL COCK
34 - FUEL COCK
18 - STARTING MOTOR
18 - STARTING MOTOR
19 - GENERATOR
19 - GENERATOR
20 - SIGNAL GENERATOR
20 - SIGNAL GENERATOR
21 - BATTERY
21 - BATTERY
22 - ELECTRICAL
22 - ELECTRICAL
23 - SPEEDOMETER - TACHOMETER
23 - SPEEDOMETER - TACHOMETER
24 - HEADLAMP (MODEL K/L/M/N)
24 - HEADLAMP (MODEL K/L/M/N)
25 - HEADLAMP (SEE NOTE)
25 - HEADLAMP (SEE NOTE)
25B - HEADLAMP (P09)
25B - HEADLAMP (P09)
26 - TURNSIGNAL LAMP (MODEL K/L/M/N/P/R)
26 - TURNSIGNAL LAMP (MODEL K/L/M/N/P/R)
27 - REAR COMBINATION LAMP (MODEL K/L/M/N/P/R/S)
27 - REAR COMBINATION LAMP (MODEL K/L/M/N/P/R/S)
28 - WIRING HARNESS
28 - WIRING HARNESS
29 - HANDLE SWITCH (MODEL K)
29 - HANDLE SWITCH (MODEL K)
30 - FRAME
30 - FRAME
31 - STAND - REAR BRAKE
31 - STAND - REAR BRAKE
32 - FOOTREST
32 - FOOTREST
35 - FRAME COVER (MODEL K/L)
35 - FRAME COVER (MODEL K/L)
37 - FRONT FENDER (MODEL K/L/M/N/P/R/S)
37 - FRONT FENDER (MODEL K/L/M/N/P/R/S)
38 - HANDLEBAR (MODEL K)
38 - HANDLEBAR (MODEL K)
39 - HANDLE LEVER (MODEL K)
39 - HANDLE LEVER (MODEL K)
40 - REAR FENDER (MODEL K/L/M/N/P/R)
40 - REAR FENDER (MODEL K/L/M/N/P/R)
41 - COWLING (MODEL K/L OPTIONAL)
41 - COWLING (MODEL K/L OPTIONAL)
42 - SEAT (MODEL K/L/M/N/P/R)
42 - SEAT (MODEL K/L/M/N/P/R)
48 - REAR SWINGING ARM
48 - REAR SWINGING ARM
53 - OPTIONAL
53 - OPTIONAL
36 - HEADLAMP HOUSING (MODEL K/L/M/N/P)
36 - HEADLAMP HOUSING (MODEL K/L/M/N/P)
43 - FRONT DAMPER (MODEL K/L/M)
43 - FRONT DAMPER (MODEL K/L/M)
44 - STEERING STEM
44 - STEERING STEM
45 - FRONT WHEEL
45 - FRONT WHEEL
46 - FRONT CALIPER (MODEL K/L/M/N/P/R/S)
46 - FRONT CALIPER (MODEL K/L/M/N/P/R/S)
47 - FRONT MASTER CYLINDER
47 - FRONT MASTER CYLINDER
49 - CUSHION LEVER (MODEL K/L)
49 - CUSHION LEVER (MODEL K/L)
50 - REAR WHEEL
50 - REAR WHEEL
51 - REAR CALIPER (MODEL K/L/M/N)
51 - REAR CALIPER (MODEL K/L/M/N)
52 - REAR MASTER CYLINDER
52 - REAR MASTER CYLINDER
