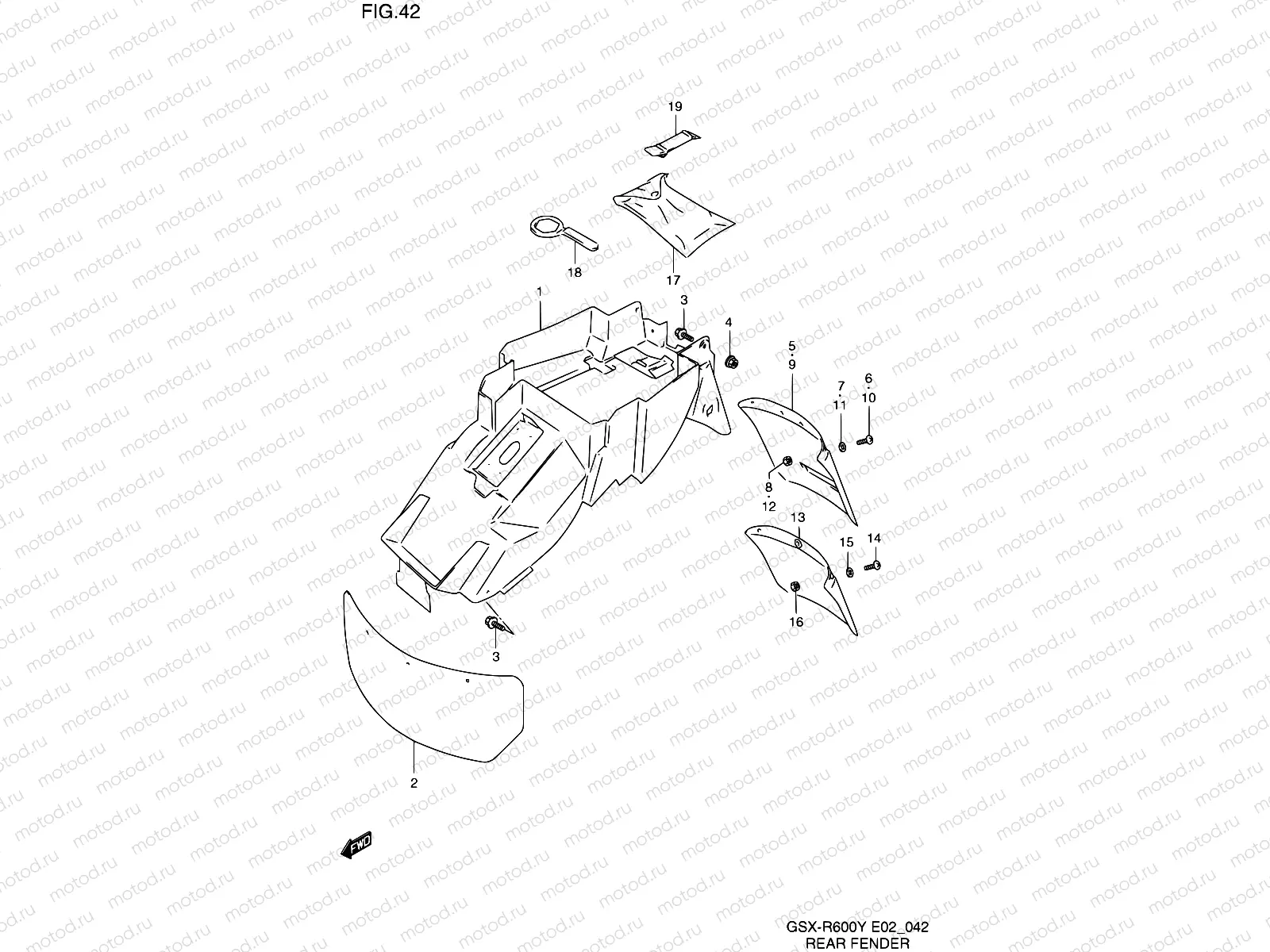

42 - REAR FENDER

42 - REAR FENDER
Например: 63110-33E20
1
63110-33E20
FENDER,COMP,REAR
1
63110-33E10
Fender, rear
1
63110-33EA0
Fender comp,rr.
1
63110-33EC0
Fender, rear
2
63411-34E00
MUDGUARD,RR FENDER
1 263 ₽/шт
3
09111-06066
БОЛТ
102 ₽/шт
4
08316-1006B
Гайка
81 ₽/шт
5
63310-33E10
xtension
6
02142-0616A
Болт
81 ₽/шт
7
09160-06084
Шайба 6.5X18X1
81 ₽/шт
8
08319-2106A
Гайка
114 ₽/шт
9
63310-33E20
xtension, rear fender
9
63310-33E10
xtension
10
02142-0616A
Болт
81 ₽/шт
11
09160-06109
Шайба
85 ₽/шт
12
08319-2106A
Гайка
114 ₽/шт
13
63331-33E00
Mudguard, extension
14
02142-0616A
Болт
81 ₽/шт
15
09160-06084
Шайба 6.5X18X1
81 ₽/шт
16
08319-2106A
Гайка
114 ₽/шт
17
09800-21089
Tool Assy
10 579 ₽/шт
19
09462-00094
Band
2 850 ₽/шт
