Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSX-R 600 SUZUKI GSX-R600 X SUZUKI (VIN: JS1AD111) 19A - CLUTCH (MODEL X/Y)

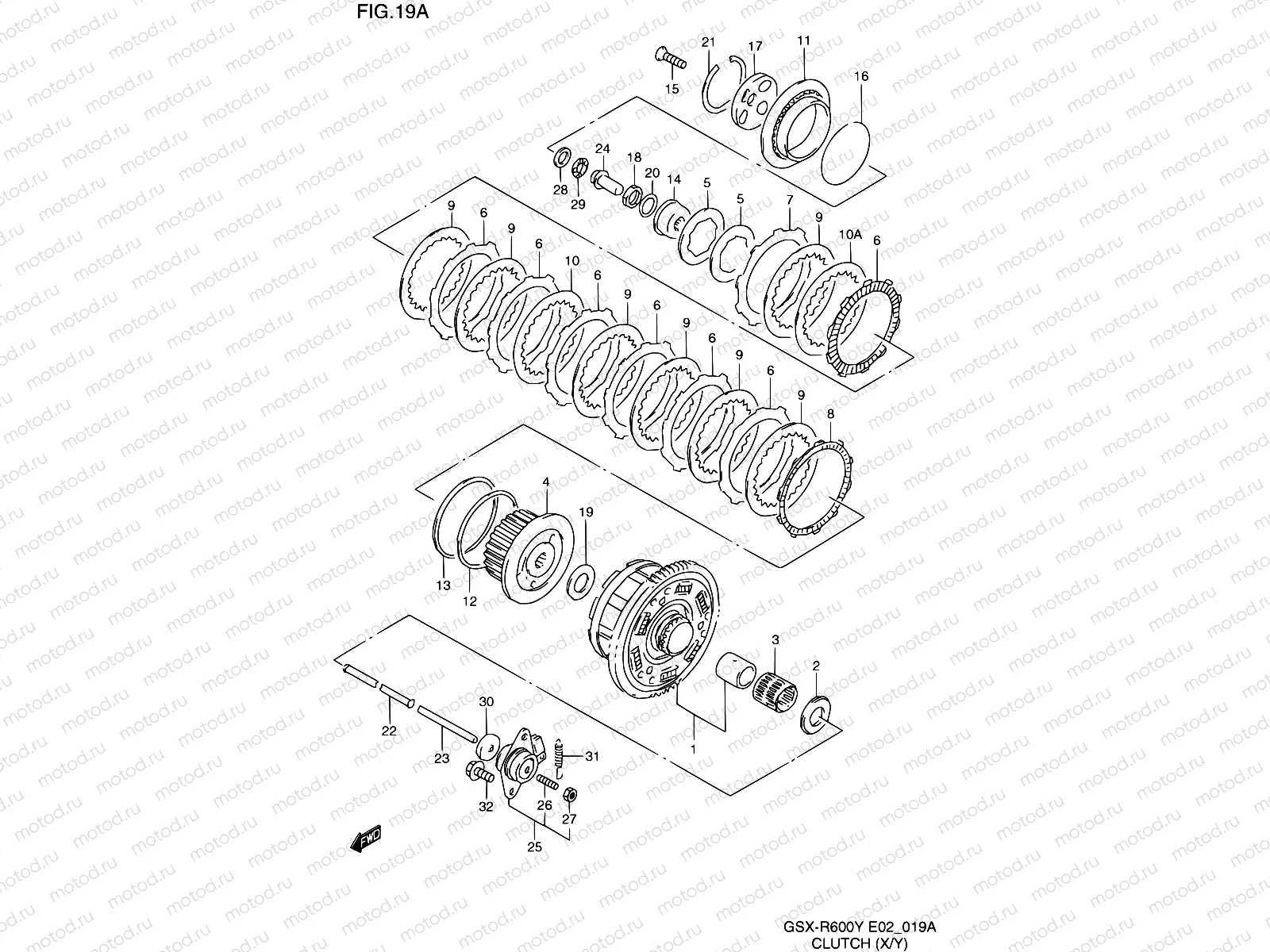

19A - CLUTCH (MODEL X/Y)

19A - CLUTCH (MODEL X/Y)

Например: 21200-31890

1

21200-31890

Gear assy,prim.

2

09160-25037

Шайба

5 870 ₽/шт

3

09263-35017

BEARING(35X40X35.8)

10 030 ₽/шт

4

21410-31E50

HUB,CLUTCH SLEEVE

10 244 ₽/шт

5

21413-31E40

Spring,clutch

6

21441-31E50

PLATE,CLUTCH DRIVE NO.1

2 229 ₽/шт

7

21441-31E60

PLATE,CLUTCH DRIVE

1 583 ₽/шт

8

21442-31E21

PLATE,CLUTCH DRIVE

2 746 ₽/шт

9

21451-31E20

PLATE,CLUTCH DRIVEN NO.1

915 ₽/шт

10

21451-31E30

PLATE,CLUTCH DRIVEN NO.2

915 ₽/шт

10

21451-31E10

PLATE,CLUTCH DRIVEN NO.2

1 377 ₽/шт

11

21462-31E20

DISC,CLUTCH PRESSURE

5 122 ₽/шт

12

21471-31E20

SEAT,CLUTCH PLATE WAVE WASHER

1 530 ₽/шт

13

21472-31E01

WASHER,CLUTCH PLATE WAVE

997 ₽/шт

14

21611-31E20

Держатель муфта

3 030 ₽/шт

15

21614-31E20

SCREW,CLUTCH SPRING HOLDER

170 ₽/шт

16

21623-31E20

SEAT,CLUTCH SPRING

383 ₽/шт

17

21463-40C01

LIFTER,CLUTCH PRESSURE DISC

7 395 ₽/шт

18

09159-24010

ШАЙБА

824 ₽/шт

19

08211-25505

Шайба

4 570 ₽/шт

20

09164-24006

ШАЙБА ФОРСУНКИ

226 ₽/шт

21

09381-84003

КЛИПС

6 530 ₽/шт

22

23110-27A00

ROD,CLUTCH

2 210 ₽/шт

23

23111-34C00

ROD,CLUTCH PUSH,L

1 126 ₽/шт

24

23121-31E00

PIECE,CLUTCH PUSH

1 377 ₽/шт

25

23200-31300

SCREW ASSY,CLUTCH RELEASE

10 578 ₽/шт

26

09134-06010

Болт

1 880 ₽/шт

27

08310-00067

Гайка

81 ₽/шт

28

09160-15045

Шайба

211 ₽/шт

29

09263-15003

Подшипник 15X28X2

532 ₽/шт

30

09285-06015

САЛЬНИК УПЛОТНИТЕЛЬНЫЙ

840 ₽/шт

31

09443-09044

Пружина

291 ₽/шт

32

01550-0616B

БОЛТ

81 ₽/шт
