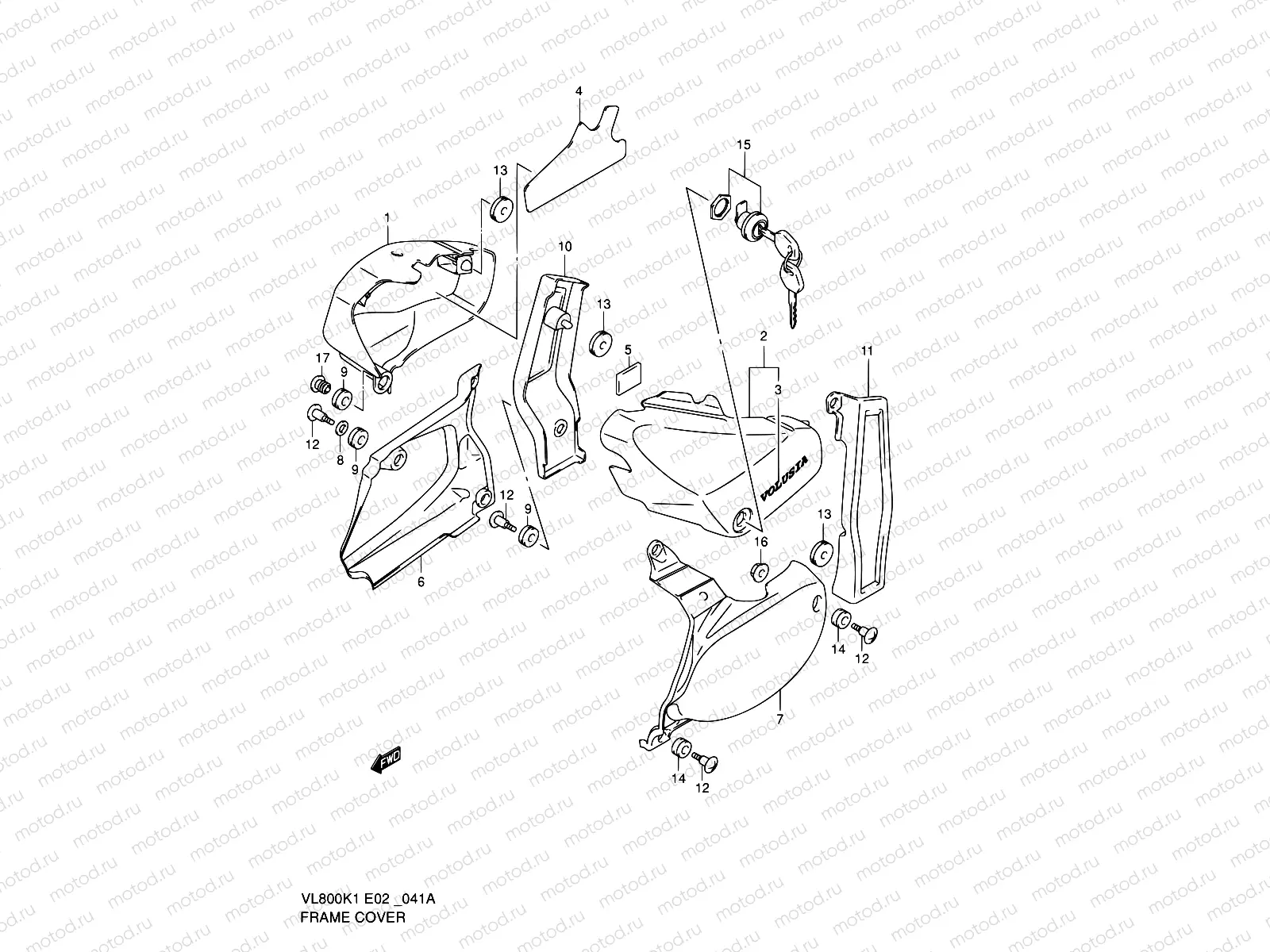

41A - FRAME COVER (MODEL K2)

41A - FRAME COVER (MODEL K2)
Например: 47111-41F04-13L
1
47111-41F04-13L
COVER,SIDE,R(SILVER)
20 723 ₽/шт
1
47110-41F00-YM6
Cover, frame rh (silver)
2
47210-41F00-33J
COVER,SIDE,L(BLACK)
19 550 ₽/шт
2
47210-41F00-YM6
Cover comp,side
3
68131-41F00-FW8
Emblem
3
68131-41F00-HJ2
EMBLEM,FRAME COVER
1 064 ₽/шт
4
47166-41F00
SHIELD,FRAME COVER
891 ₽/шт
5
93676-80020
PAD,BALANCER UPPER,R
192 ₽/шт
6
47130-41F00
COVER,SIDE LWR,R
14 623 ₽/шт
7
47231-41F00
COVER,SIDE LWR,L
23 265 ₽/шт
8
09160-10123
Шайба
1 250 ₽/шт
9
09320-08510
Втулка резиновая (8.5X20X8)
194 ₽/шт
10
47141-41F01-019
COVER,SIDE RR,R
6 999 ₽/шт
11
47241-41F00-019
COVER,SIDE RR,L
5 423 ₽/шт
12
09139-06126
БОЛТ МЕТАЛЛ (6х20)
194 ₽/шт
13
09320-08527
Cushion
1 640 ₽/шт
14
09320-09501
ДЭМПФЕР
1 250 ₽/шт
15
95700-07861
Lock Set,cover
10 892 ₽/шт
16
08319-31067
Гайка
153 ₽/шт
17
56524-23K10
Cap gsx-r 125/
