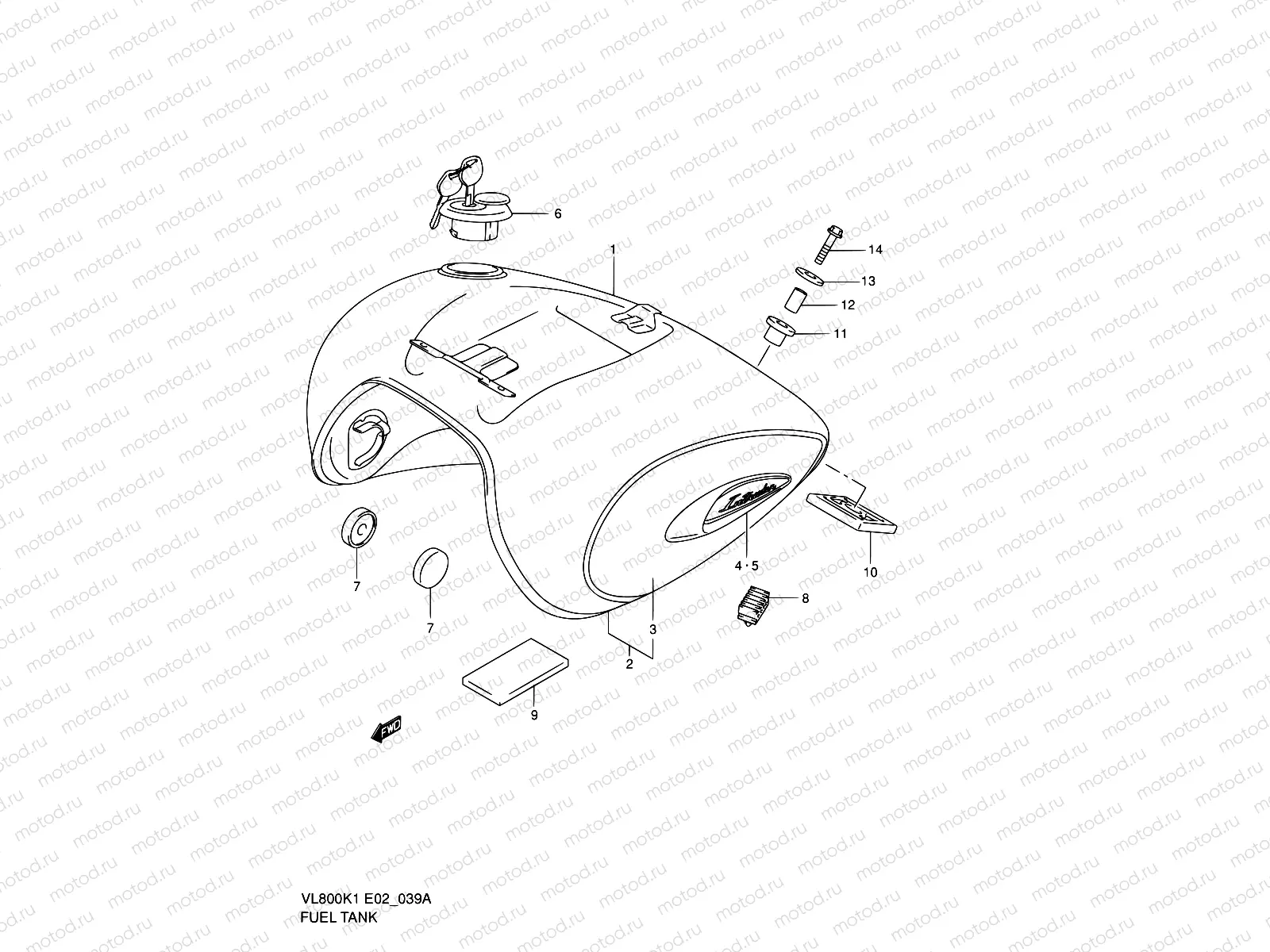

39A - FUEL TANK (MODEL K2)

39A - FUEL TANK (MODEL K2)
Например: 44100-41F20-33J
1
44100-41F20-33J
uel tank (Black)
1
44100-41F00-33J
Tank assy, fuel (black)
2
44100-41F50-FH9
Tank assy,fuel
2
44100-41F50-HE6
Tank assy,fuel
2
44100-41F30-FH9
Tank assy, fuel
2
44100-41F30-HE6
Tank assy, fuel
3
68110-41F01-HJ1
Autocollant (Fuel tank)
3
68110-41F01-HE6
Autocollant (Fuel tank)
4
68111-41F00
EMBLEM,FUEL TANK,R
3 988 ₽/шт
5
68121-41F00
EMBLEM,FUEL TANK,L
3 988 ₽/шт
6
44200-41811
Cap Set,fuel Tank
12 043 ₽/шт
7
09329-10026
ОПОРА КРЕПЛЕНИЯ ТОПЛИВНОГО БАКА
226 ₽/шт
8
45149-31300
CUSHION,SEAT(40X20X15)
510 ₽/шт
9
44545-41F00
CUSHION,FUEL TANK
187 ₽/шт
10
44542-41F01
Cushion,fuel Tank Rr Lwr
700 ₽/шт
11
44541-41F02
Cushion,fuel Tank Rear Upper
1 292 ₽/шт
12
09180-08227
ВТУЛКА КРЕПЛЕНИЯ ГЛУШИТЕЛЯ
204 ₽/шт
13
09160-08146
Шайба
162 ₽/шт
14
01550-0835A
Болт
119 ₽/шт
