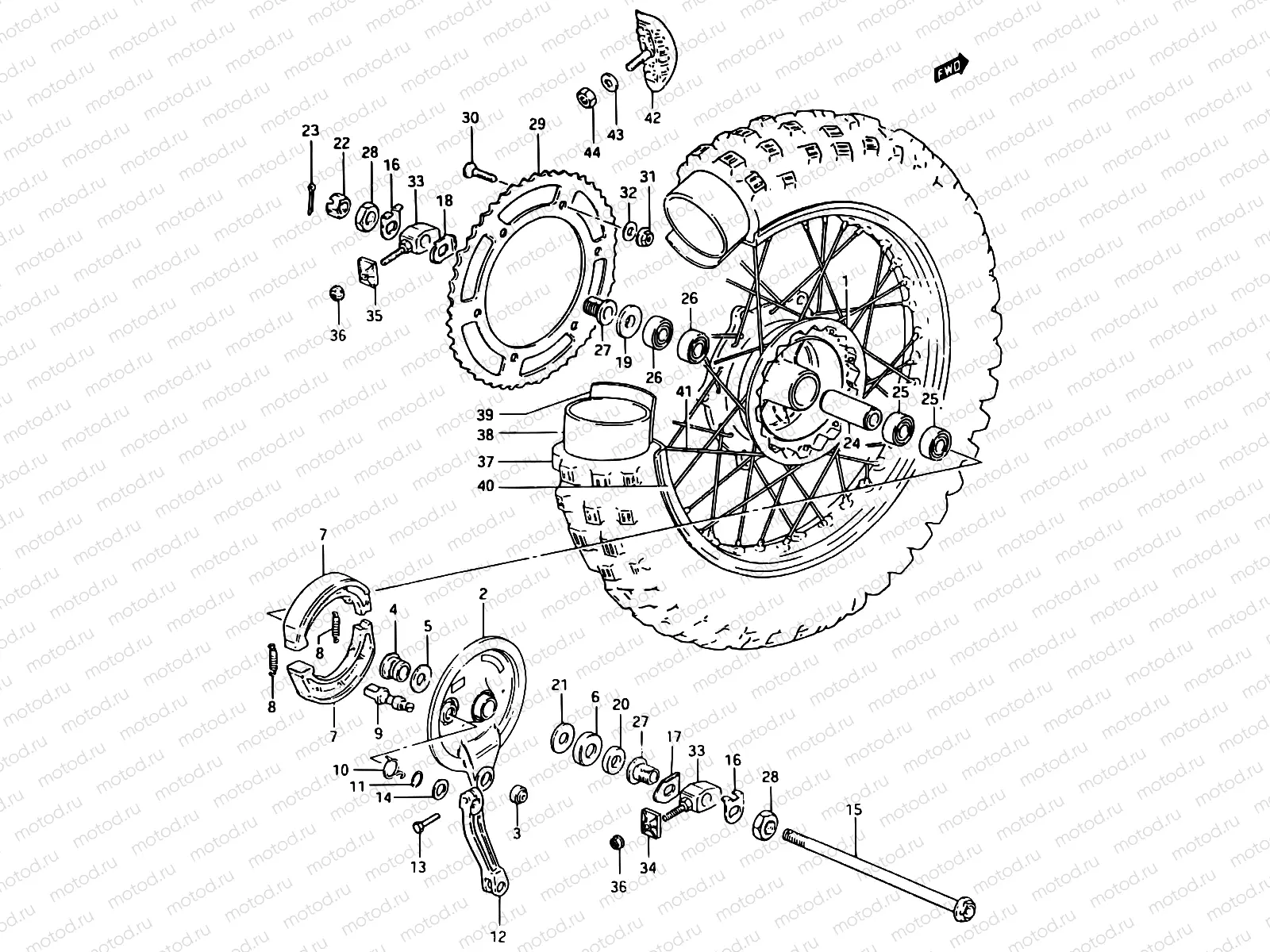

41 - REAR WHEEL (MODEL D)

41 - REAR WHEEL (MODEL D)
Например: 64110-14222
1
64110-14222
Hub, rear wheel
2
64200-14850
Panel, rear hub
3
64352-40401
Roulement
4
64213-14100
Spacer,rr hub p
5
09283-20031
SEAL,OIL(20X27X5)
339 ₽/шт
6
64845-14100
Cover,rr brake
7
64400-40810
SHOE SET,BRAKE
3 284 ₽/шт
8
09443-08021
Spring
9
54441-14101
CAM,FR BRAKE
1 572 ₽/шт
10
09448-30007-XC0
Пружина
1 008 ₽/шт
11
09280-12001
O RING(D:2.5,ID:11.4)
1 020 ₽/шт
12
64451-14100
Lever,rr brake
13
09118-06086
Болт 6X25
1 680 ₽/шт
14
09160-12011
Уплотнение
97 ₽/шт
15
64711-1420V
AXLE,REAR (Rear)
16
64712-14301
Washer,chain ad
17
64782-14200
Washer, inner rh
18
64792-14200
Plate, inner lh
19
64750-14220
Spacer, axle lh
20
64741-14210
Spacer, axle rh
21
09181-15223
SHIM(15X28X1)
194 ₽/шт
22
09141-14004
Гайка
3 210 ₽/шт
23
04111-3030A
Стопор
81 ₽/шт
24
64730-14220
Spacer, hub bearing
25
08123-6202B
Wheel bearing
26
08123-63027
Подшипник
2 976 ₽/шт
27
64781-14201
Spacer, chain adjuster
28
09140-22006
Nut
29
64511-14220
Sprocket, rear (nt:46)
29
64511-14210
Sprocket, rear (nt:47)
29
64511-14240
Sprocket, rear (nt:45)
30
09120-08009
SCREW(8X40)
2 230 ₽/шт
31
08319-31087
Гайка
178 ₽/шт
32
08322-01087
Шайба
81 ₽/шт
33
61410-14131
Adjuster, chain
34
61421-14220
Plate, r
35
61431-14200
Plate, l
36
08319-31107
Гайка
210 ₽/шт
37
65100-14320
Tire (140/80-18)
38
65200-40430
Tube, wheel inner
39
55261-26F10
PROTECTOR,INNER TUBE
486 ₽/шт
40
65311-14202
Rim, wheel (250x18)
41
65320-14203
Spoke assy, rear
42
65270-14600
Stopper bead
43
08322-01087
Шайба
81 ₽/шт
44
08310-00087
Гайка 8MM
81 ₽/шт
