Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI RM 500 SUZUKI RM500 D SUZUKI 10 - TRANSMISSION

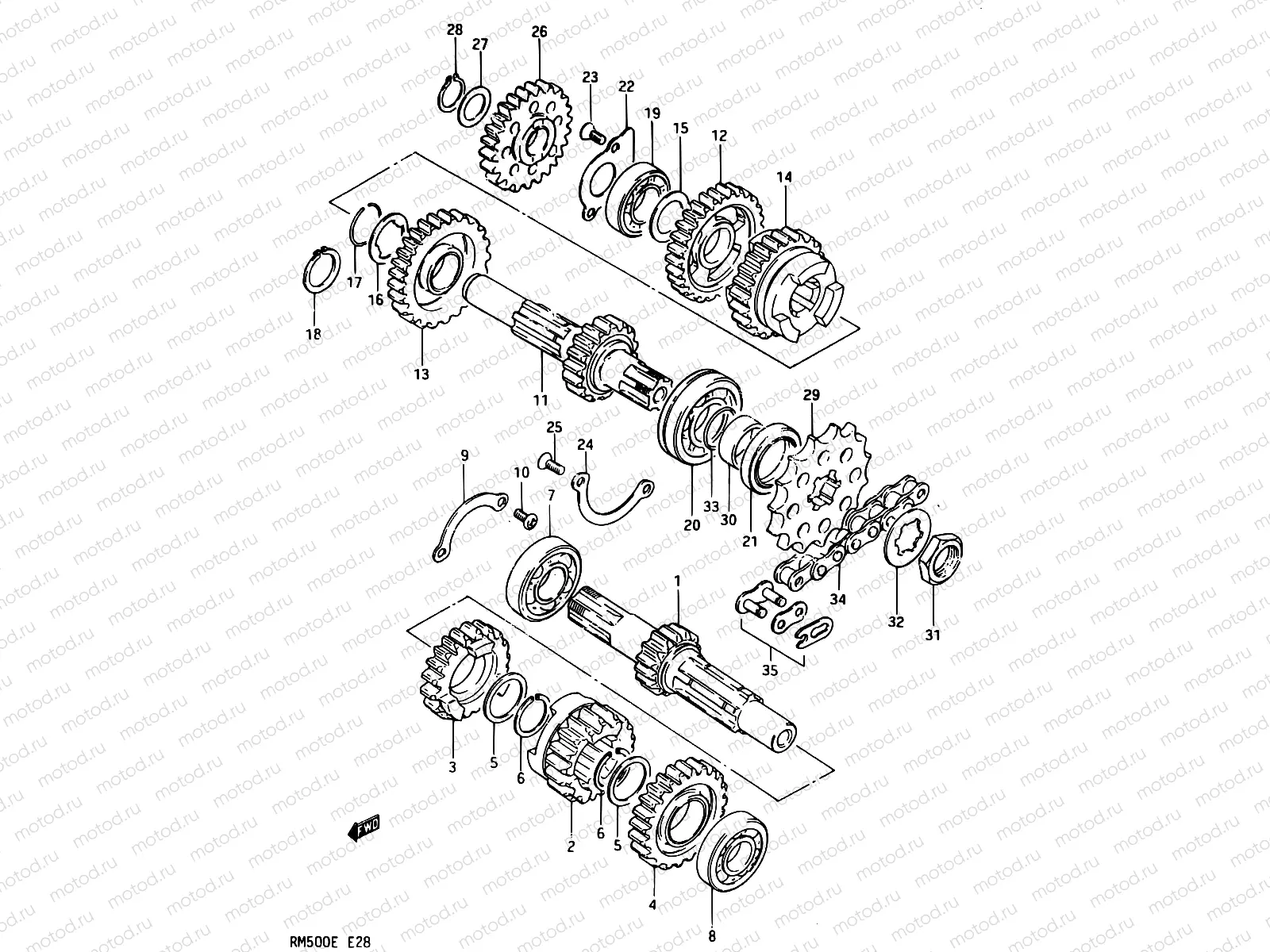

10 - TRANSMISSION

10 - TRANSMISSION
Например: 24120-14230
1
24120-14230
Countershaft (nt:14)
2
24221-14231
3
24230-14230
Gear, 3rd drive (nt:19)
4
24241-14230
Gear, 4th drive (nt:22)
5
08211-25301
Шайба
1 840 ₽/шт
6
09380-25010
КЛИПС
210 ₽/шт
7
09262-22025
Подшипник
3 715 ₽/шт
8
09262-20106
Подшипник B1 20X42X12
1 190 ₽/шт
9
24741-14210
Holder, bearing
10
02112-06127
Болт
81 ₽/шт
10
02122-06127
Болт
85 ₽/шт
11
08331-31289
CIRCLIP
1 250 ₽/шт
11
24130-14231
Driveshaft (4th, nt:21)
12
24311-14230
Gear, 1st driven (nt:28)
13
24320-14231
Gear, 2nd driven (nt:28)
14
24331-14231
Gear, 3rd driven (nt:23)
15
08211-20363
WASHER
194 ₽/шт
16
09167-28004
Washer
17
09380-28004
Circlip
19
09264-20002
Bearing, rh
20
09262-28004
BEARING(28X58X16)
3 011 ₽/шт
21
09283-35023
Сальник
641 ₽/шт
22
24751-14211
Holder, bearing rh
23
02122-06127
Болт
85 ₽/шт
24
24752-14220
Holder, bearing lh
25
02122-06127
Болт
85 ₽/шт
26
26260-14201
Gear, kick starter idle
27
09181-20167
Шайба (20X28X1.0)
1 520 ₽/шт
28
08331-3120A
CIRCLIP
146 ₽/шт
29
27511-14220
Pignon avant (Z=14)
29
27511-14230
SPROCKET,ENGINE(NT:13)
2 854 ₽/шт
29
27511-14240
Pignon avant (Z=15)
30
09180-28003
Entretoise
31
09140-28003
Гайка
4 220 ₽/шт
32
09167-28003
Rondelle (Lock)
33
09280-28004
O RING(D:1.5,ID:27.7)
1 490 ₽/шт
34
27600-43D02-116
CHAIN,DRIVE (DID520DMA4 SDH)
20 485 ₽/шт
35
27620-28C01
35
27620-14261
Joint (rk)
