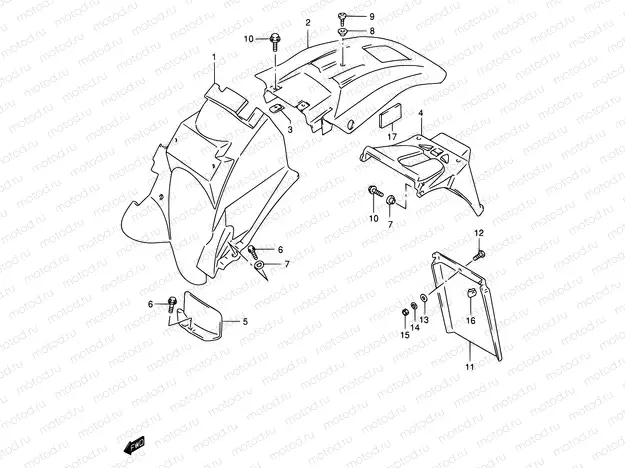

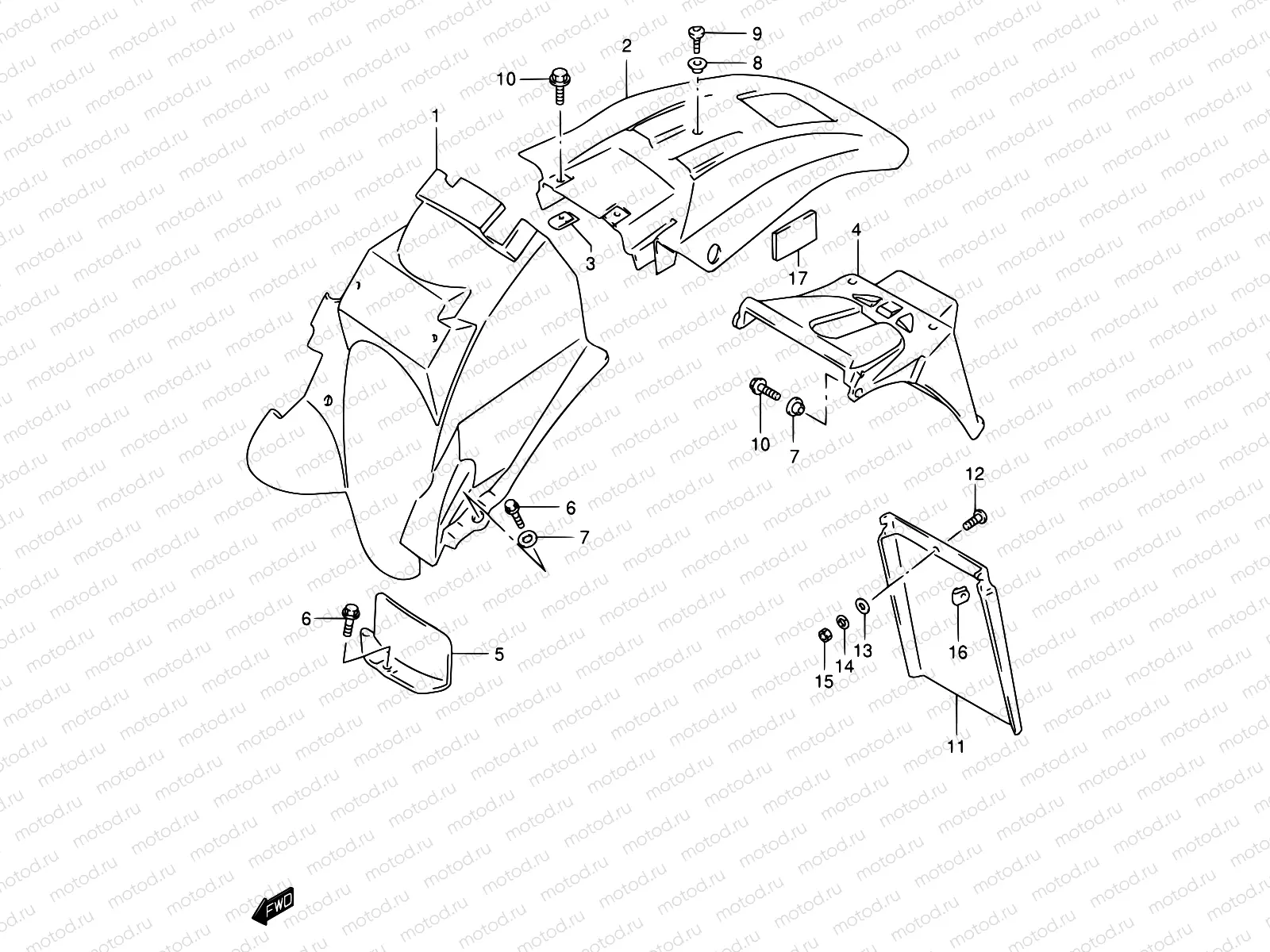

41 - REAR FENDER (MODEL K1/K2/K3)

41 - REAR FENDER (MODEL K1/K2/K3)
Например: 63112-32E00
1
63112-32E00
BODY,RR FENDER FR
3 754 ₽/шт
2
63113-32E00-YJ4
BODY,RR FENDER RR
9 520 ₽/шт
2
63113-32E00-YU1
BODY,RR FENDER RR
8 585 ₽/шт
3
47153-19C01
PLATE,FRAME COVER
395 ₽/шт
4
63311-32E00
XTENSION,RR FENDER
3 265 ₽/шт
4
63311-32E10
XTENSION,REAR FENDER
4
63311-32E20
xtension, rear fender
5
63411-32E00
MUDGUARD,RR FENDER
911 ₽/шт
6
09111-06066
БОЛТ
102 ₽/шт
7
09169-06073
Шайба
178 ₽/шт
8
09169-06053
Шайба (6.3X16X1)
97 ₽/шт
9
09139-06237
Screw(6X16)
1 880 ₽/шт
10
01550-0616B
БОЛТ
81 ₽/шт
11
63331-03D00
Mud guard,rear
11
63331-03D30
MUD GUARD.REAR FENDER.REAR
12
02142-0516B
Болт
85 ₽/шт
13
09160-05037
Шайба
97 ₽/шт
14
08321-0105A
Пластина замка
81 ₽/шт
15
08310-0005B
Гайка
1 370 ₽/шт
16
09148-05013
Гайка
97 ₽/шт
17
63191-25C00
USHION
204 ₽/шт
