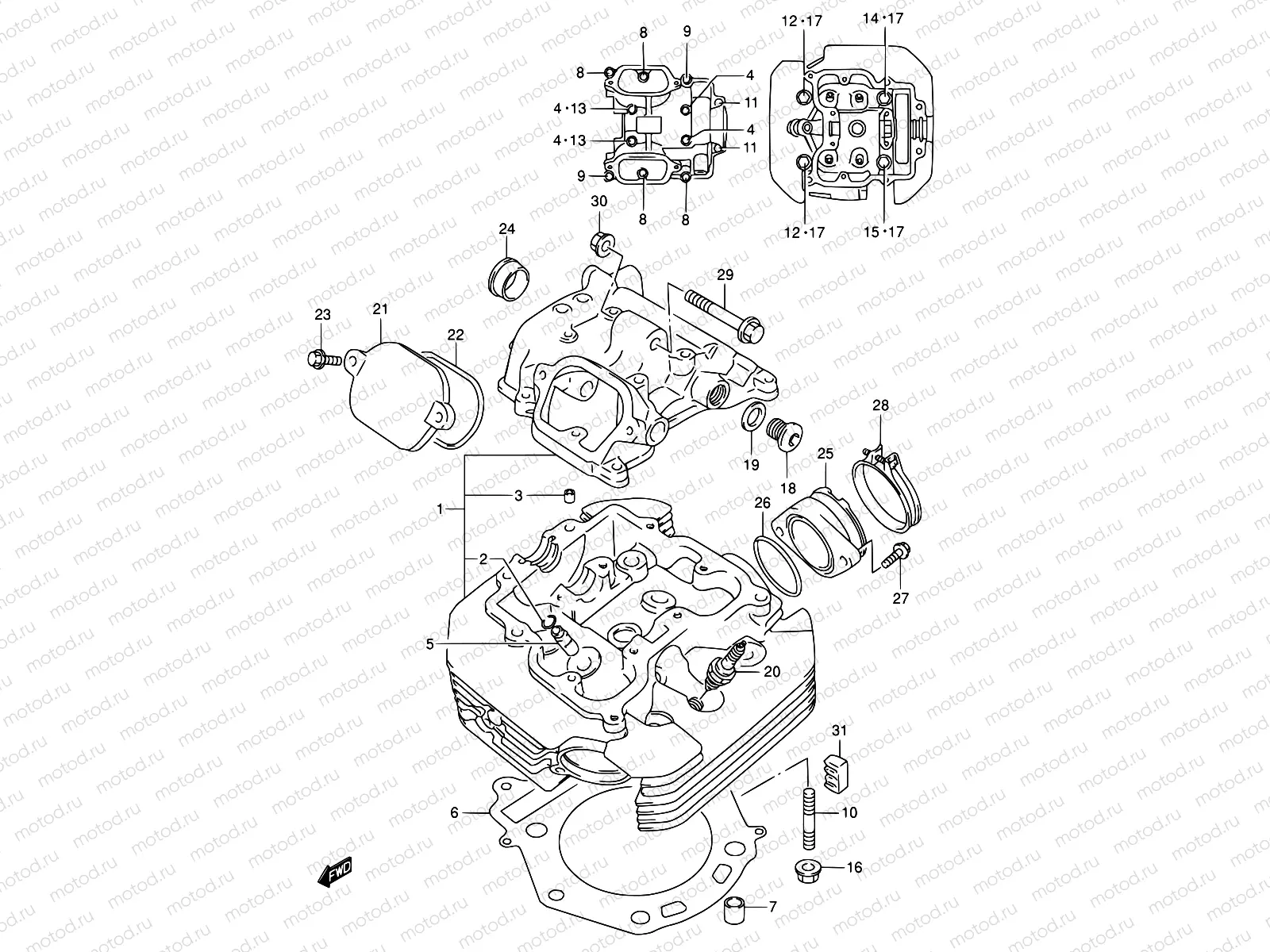

1A - CYLINDER HEAD

1A - CYLINDER HEAD
Например: 11100-32E00
1
11100-32E00
Cylinder head
1
11100-32E10
Cylinder head
2
09381-10004
КЛИПС
113 ₽/шт
3
09206-08001
Стопор
170 ₽/шт
4
09103-06102
BOLT(6X55)
170 ₽/шт
5
11115-32E70
Направляющая клапана
2 053 ₽/шт
6
11141-32E00
Прокладка головки цилиндров
4 760 ₽/шт
7
04211-13189
ШТИФТ
129 ₽/шт
8
01550-0625A
Болт
102 ₽/шт
9
01550-0630A
БОЛТ
102 ₽/шт
10
09108-08142
Болт
170 ₽/шт
11
09103-06167
BOLT(6X115)
226 ₽/шт
12
09103-10178
BOLT(10X180)
872 ₽/шт
13
09168-06023
ПРОКЛАДКА
162 ₽/шт
14
09103-10179
BOLT(10X190)
872 ₽/шт
15
09103-10180
BOLT(10X200)
759 ₽/шт
16
08316-1008B
Гайка
81 ₽/шт
17
09168-10017
GASKET(10.5X22X2)
187 ₽/шт
18
09248-14011
PLUG
226 ₽/шт
19
09168-14004
Прокладка
129 ₽/шт
21
11175-44B00
CAP,INSPECTION
1 150 ₽/шт
22
11177-44B01
ПРОКЛАДКА КРЫШКИ ГЦ
318 ₽/шт
23
01550-0620B
БОЛТ
81 ₽/шт
24
09241-25007
ШЛАНГ
840 ₽/шт
25
13110-32E00
Труба впускная
2 899 ₽/шт
26
09280-46002
O RING(D:2.4,ID:46.0)
6 370 ₽/шт
27
09126-06014
SCREW(6X16)
179 ₽/шт
28
09402-58208
Хомут
243 ₽/шт
29
09103-08332
BOLT(8X53)
2 310 ₽/шт
30
08319-3108A-000
Гайка
178 ₽/шт
31
11151-32E00
PAD,CYLINDER HEAD RUBBER
306 ₽/шт
