Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI VL 800 Intruder C800 / Boulevard C50 SUZUKI VL800UE K6 Intruder C800 / Boulevard C50 SUZUKI 41 - FRAME COVER (MODEL K6)

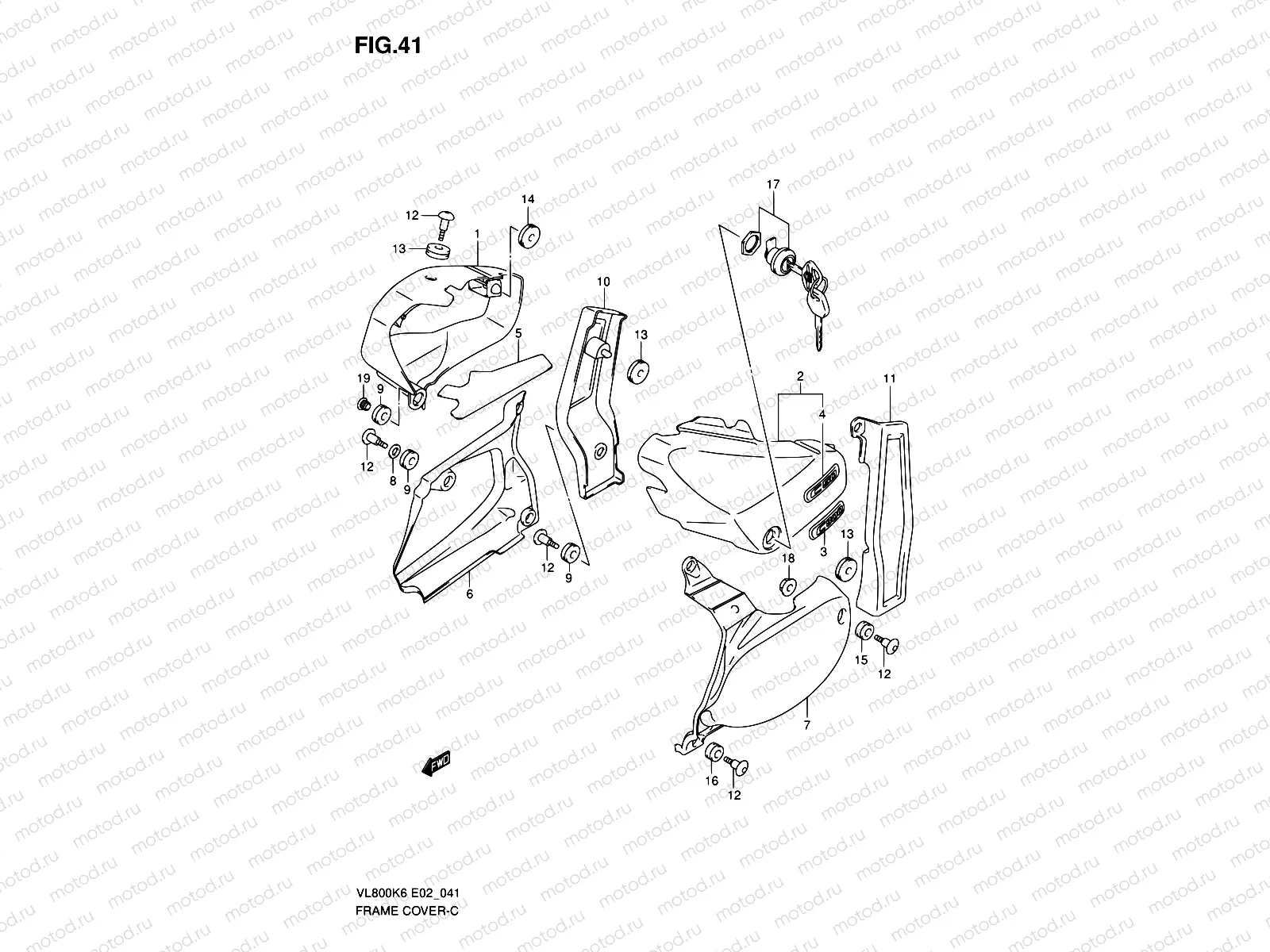

41 - FRAME COVER (MODEL K6)

41 - FRAME COVER (MODEL K6)

Например: 47110-41FC1-YAY

1

47110-41FC1-YAY

over,side,r(bl

1

47110-41FC1-YHG

over comp,side

1

47110-41FC1-YAR

over comp,side

1

47110-41F81-YAY

COVER,SIDE,R(BLUE)

21 505 ₽/шт

1

47110-41F81-YHG

COVER,SIDE,R(GRAY)

16 227 ₽/шт

1

47110-41F81-YAR

COVER,SIDE,R(BLUE)

21 505 ₽/шт

2

47210-41FC0-YAY

OVER,SIDE,L(BLUE)

21 505 ₽/шт

2

47211-41F01

COVER,SIDE,L(NON PAINT)

10 965 ₽/шт

2

47210-41FC0-YAR

OVER,SIDE,L(BLUE)

21 505 ₽/шт

2

47210-41F80-YAR

Cover, frame lh (blue)

21 505 ₽/шт

3

68131-41F61

EMBLEM,C800

3 011 ₽/шт

4

68131-41F41

EMBLEM,C50

2 542 ₽/шт

5

47166-41F00

SHIELD,FRAME COVER

891 ₽/шт

6

47130-41F00

COVER,SIDE LWR,R

14 623 ₽/шт

7

47231-41F00

COVER,SIDE LWR,L

23 265 ₽/шт

8

09160-10123

Шайба

1 250 ₽/шт

9

09320-08510

Втулка резиновая (8.5X20X8)

194 ₽/шт

10

47141-41F01-019

COVER,SIDE RR,R

6 999 ₽/шт

11

47241-41F00-019

COVER,SIDE RR,L

5 423 ₽/шт

12

09139-06126

БОЛТ МЕТАЛЛ (6х20)

194 ₽/шт

13

09320-08527

Cushion

1 640 ₽/шт

14

09320-08514

Damper

15

09320-09501

ДЭМПФЕР

1 250 ₽/шт

16

09320-09062

Damper

17

95700-07861

Lock Set,cover

10 892 ₽/шт

18

08319-31067

Гайка

153 ₽/шт

19

56524-23K10

Cap gsx-r 125/
