Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI VL 800 Intruder C800 / Boulevard C50 SUZUKI VL800UE K6 Intruder C800 / Boulevard C50 SUZUKI 2 - FRONT CYLINDER HEAD (MODEL K6/K7/K8)

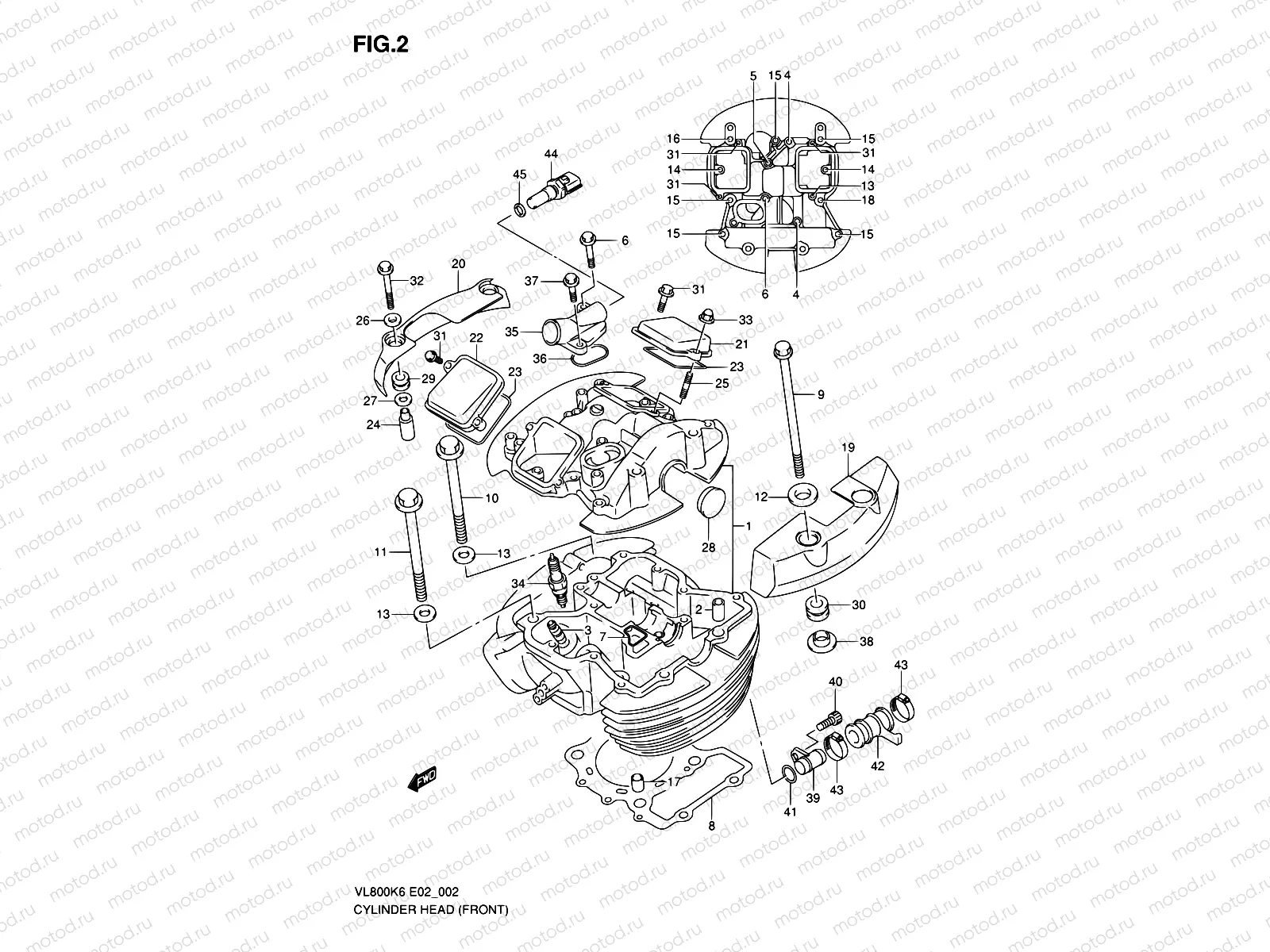

2 - FRONT CYLINDER HEAD (MODEL K6/K7/K8)

2 - FRONT CYLINDER HEAD (MODEL K6/K7/K8)

Например: 11101-41FA0

1

11101-41FA0

HEAD ASSY,CYLINDER FR

81 532 ₽/шт

2

09206-11004

PIN(8.4X11X14)

549 ₽/шт

3

11115-41F70

GUIDE,VALVE(OS:0.3)

1 785 ₽/шт

4

09103-06101

BOLT(6X50)

162 ₽/шт

5

09103-06102

BOLT(6X55)

170 ₽/шт

6

07130-0680B

Болт

153 ₽/шт

7

11123-38A00

Прокладка крышки

204 ₽/шт

8

11141-41F00

GASKET,CYLINDER HEAD FR

3 634 ₽/шт

9

09103-08370

BOLT(8X250)

840 ₽/шт

10

09103-10133

BOLT(10X155)

678 ₽/шт

11

09103-10134

BOLT(10X165)

792 ₽/шт

12

09160-08130

Шайба

102 ₽/шт

13

09160-10039

Шайба

119 ₽/шт

14

01550-0625B

Болт масляного насоса

97 ₽/шт

15

01550-0630B

Болт

1 640 ₽/шт

16

01550-0640B

Болт

102 ₽/шт

17

04211-13189

ШТИФТ

129 ₽/шт

18

07120-0630B

Болт

97 ₽/шт

19

11171-41FA0

CAP,CYLINDER HEAD COVER FR,L

8 915 ₽/шт

20

11172-41F00

CAP,CYLINDER HEAD COVER FR

8 915 ₽/шт

21

11175-38A11

CAP,INSPECTION INTAKE

1 150 ₽/шт

22

11176-38A11

CAP,INSPECTION EXHAUST

1 150 ₽/шт

23

11177-38A00

ПРОКЛАДКА

289 ₽/шт

24

11179-10F10

SPACER,CYL HEAD COVER CAP NO.2

544 ₽/шт

25

09108-06102

Шпилька

211 ₽/шт

26

09160-06084

Шайба 6.5X18X1

81 ₽/шт

27

09160-09016

Шайба

97 ₽/шт

28

09241-30004

ШЛАНГ

485 ₽/шт

29

09320-09016

РЕЗИНКА

162 ₽/шт

30

09320-13015

CUSHION

204 ₽/шт

31

01547-0620B

БОЛТ

81 ₽/шт

32

01547-06507

Болт крышки головки цилиндров №2

97 ₽/шт

33

09159-06093

NUT

129 ₽/шт

34

09482-00334

SPARK PLUG DPR8EA-9

727 ₽/шт

35

11181-41F00

UNION,CYL HEAD OUTLET

2 581 ₽/шт

36

11182-38A00

GASKET,WATER OUTLET UNION

170 ₽/шт

37

07130-0620B

БОЛТ

97 ₽/шт

38

09301-08007

Втулка

194 ₽/шт

39

17891-41F10

UNION,CYL HEAD JOINT

938 ₽/шт

40

07130-0612B

Болт

1 840 ₽/шт

41

09280-16005

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

258 ₽/шт

42

17854-41F01

HOSE,CYLINDER HEAD JOINT

986 ₽/шт

43

09402-28513

ХОМУТ РУЛ. НАК.

308 ₽/шт

44

13650-57F00-000

Датчик температуры воды

3 485 ₽/шт

45

09168-12017

ПРОКЛАДКА РЕДУКТОРА

101 ₽/шт
