Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI VX 800 SUZUKI VX800 T SUZUKI 40B - FRAME COVER (MODEL R/T)

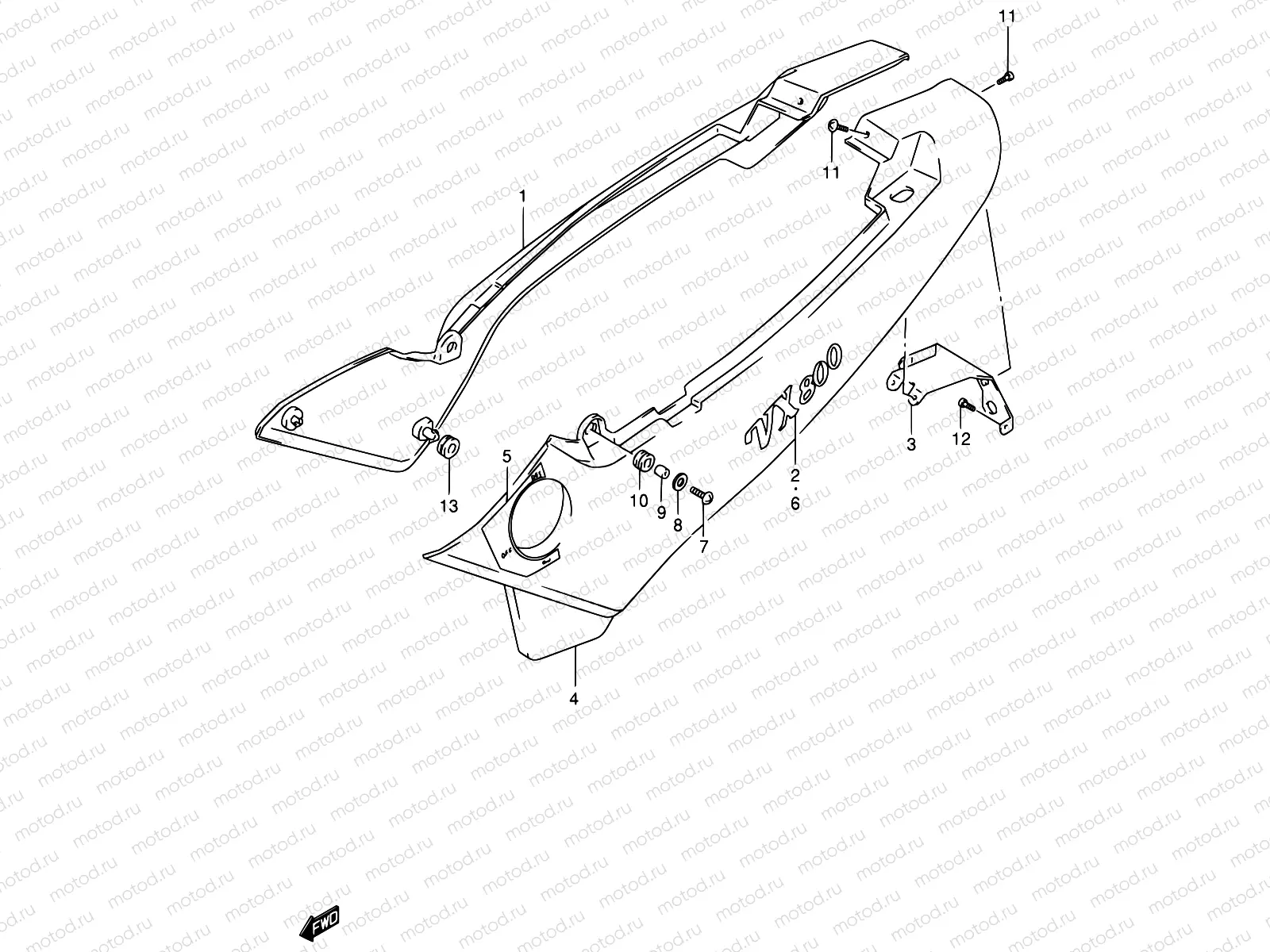

40B - FRAME COVER (MODEL R/T)

40B - FRAME COVER (MODEL R/T)
Например: 47110-45C01-33J
1
47110-45C01-33J
over,frame,r
1
47111-45C01
OVER, FRAME RH (SILVER)
2
68131-45C00-C3H
.emblem
2
68131-45C00-A6T
Emblem
2
68131-45C00-B34
Emblem
3
47130-45C00
over comp,side
4
47210-45C61-33J
over,frame,l
4
47211-45C01
OVER, FRAME LH (SILVER)
4
47210-45C61-22U
over,frame,l
6
68131-45C00-C3H
.emblem
6
68131-45C00-A6T
Emblem
6
68131-45C00-B34
Emblem
7
09136-06081
Болт
82 ₽/шт
9
09180-06262
Кольцо/шайба
162 ₽/шт
10
09320-09016
РЕЗИНКА
162 ₽/шт
11
02142-0410A
Винт
81 ₽/шт
12
03541-0410A
Болт
85 ₽/шт
13
09320-08527
Cushion
1 640 ₽/шт
