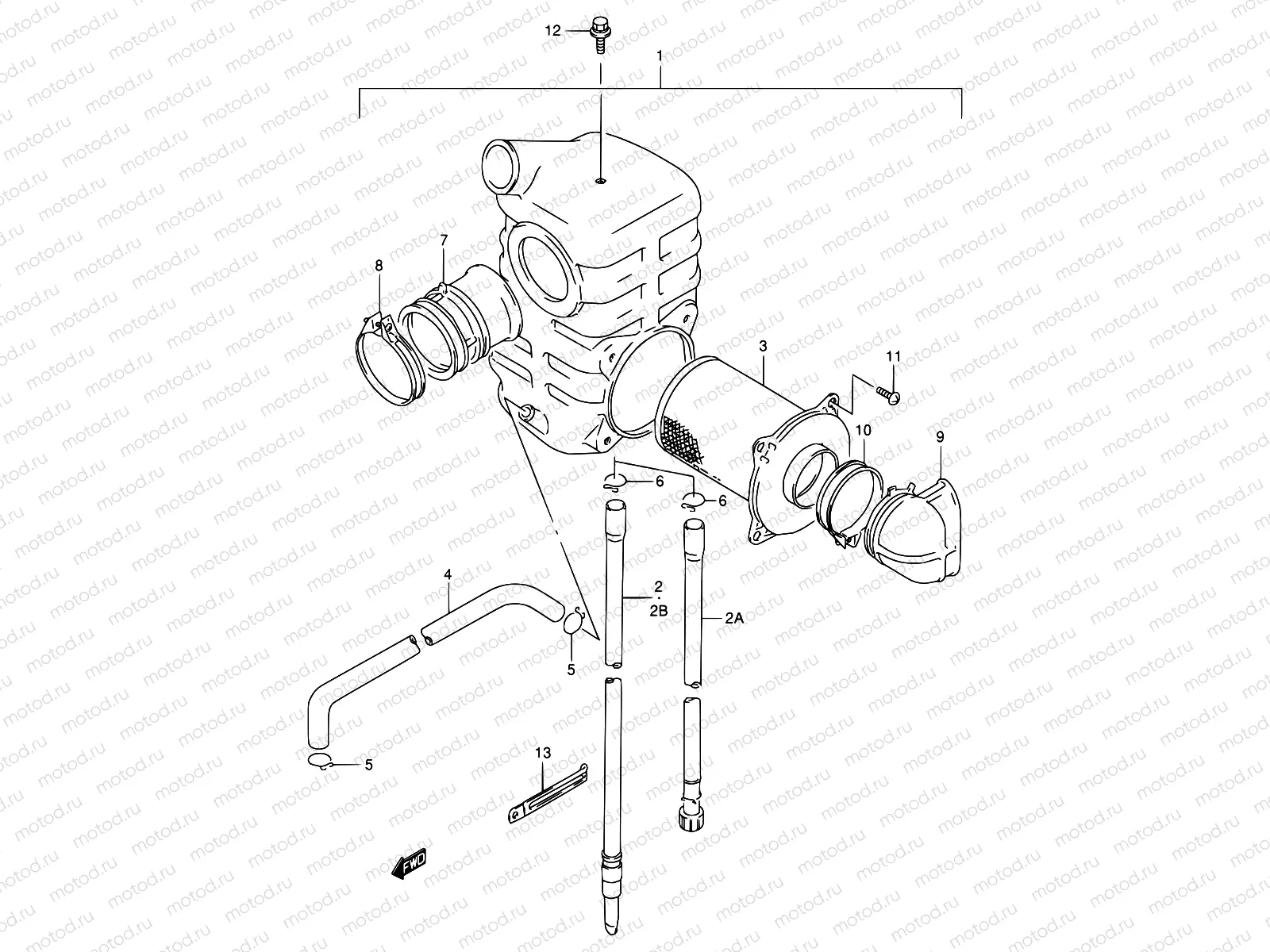

13 - AIR CLEANER (REAR)

13 - AIR CLEANER (REAR)
Например: 13700-45C61
1
13700-45C61
leaner assy, air rear
1
13700-45C90
leaner assy, air rear
2
13870-11308
Трубка дренажная
1 345 ₽/шт
2
13870-11459
Трубка дренажная
1 258 ₽/шт
3
13780-45C10
Filtre à air
3
13780-45C40
FILTER ASSY,CLEANER
4 575 ₽/шт
4
13853-45C50
.tube, breather
5
09401-14301
ХОМУТ МАЛЫЙ
226 ₽/шт
6
09401-13409
ХОМУТ МАЛЫЙ
1 250 ₽/шт
7
13881-45C50
TUBE,OUTLET
4 093 ₽/шт
8
09402-58208
Хомут
243 ₽/шт
9
13891-45C01
Tube, inlet
10
09402-56901
Хомут
255 ₽/шт
11
02142-05087
Винт 5X8 CROSS
85 ₽/шт
12
01550-0612B
БОЛТ
81 ₽/шт
13
09404-10417
Струбцина L:97
1 330 ₽/шт
