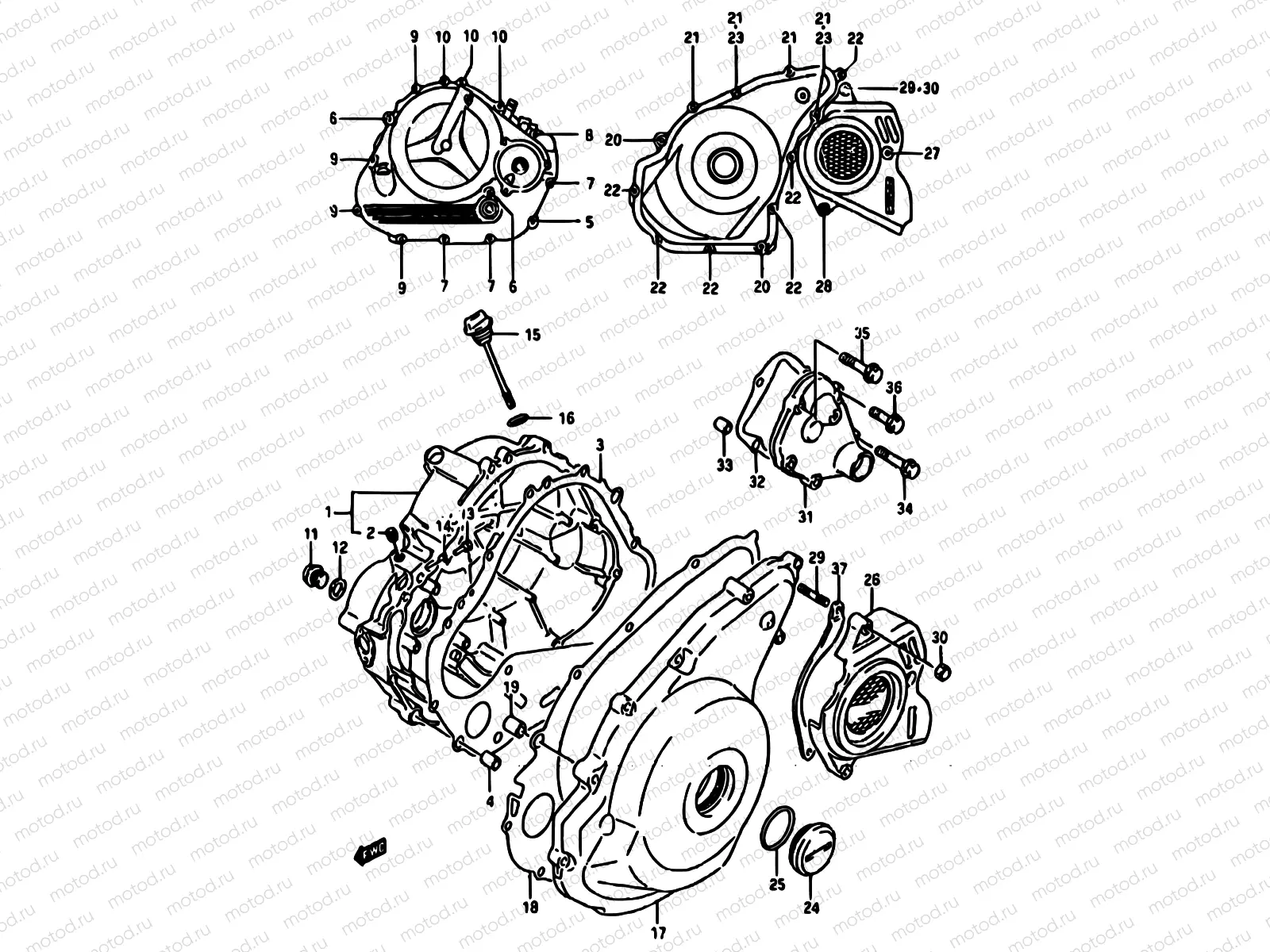

4 - CRANKCASE COVER

4 - CRANKCASE COVER
Например: 11340-44B02-0ML
1
11340-44B02-0ML
2
09246-05006
ШЛАНГ
187 ₽/шт
3
11482-44B10
Gasket - clutch cover
3
11482-44B00-H17
Gasket,clutch cover (na)
4
04211-13189
ШТИФТ
129 ₽/шт
5
01547-0660B
Болт
1 920 ₽/шт
6
01547-0650A
Болт
1 410 ₽/шт
7
01547-0645B
Болт
97 ₽/шт
8
01547-0640A
БОЛТ
97 ₽/шт
9
01547-06307
Болт
102 ₽/шт
10
01547-0625B
БОЛТ
97 ₽/шт
11
09247-14015
ШЛАНГ
2 310 ₽/шт
12
09168-14004
Прокладка
129 ₽/шт
13
09493-36003
SPROEIER,LUCHT
14
09280-04004
O RING(D:1.2,ID:4.0)
194 ₽/шт
15
11970-44B30
Gauge,oil level
16
09280-17003
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
178 ₽/шт
17
11351-44B03-0ML
Cover,magneto
17
01547-0645B
Болт
97 ₽/шт
18
11483-44B11
GASKET,MAGNETO COVER
3 363 ₽/шт
18
11483-44B00-H17
Gasket,magneto cover (na)
19
04211-13189
ШТИФТ
129 ₽/шт
20
01547-0645B
Болт
97 ₽/шт
21
01547-0635B
Болт
97 ₽/шт
22
01547-0625B
БОЛТ
97 ₽/шт
23
09168-06023
ПРОКЛАДКА
162 ₽/шт
24
09259-36016-20H
ЗАГЛУШКА БЛОКА ЦИЛИНДРОВ
775 ₽/шт
25
09280-33004
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
178 ₽/шт
26
11360-44B00-20H
Cov.eng.sprocke
27
01547-06307
Болт
102 ₽/шт
28
01547-0625B
БОЛТ
97 ₽/шт
29
09108-06107-XC0
Болт
2 780 ₽/шт
30
08313-2006A
Гайка
337 ₽/шт
31
11371-44B00-34U
Cover,gear shift (blue)
32
11485-44B10
Gasket,gear shi
32
11485-44B00-H17
Gasket,gear shift cover (na)
33
04211-09129
Стопор
102 ₽/шт
34
01547-06307
Болт
102 ₽/шт
35
01547-0625B
БОЛТ
97 ₽/шт
36
01547-0616B
БОЛТ
81 ₽/шт
37
27641-44B01
Пластина направляющей цепи
1 696 ₽/шт
