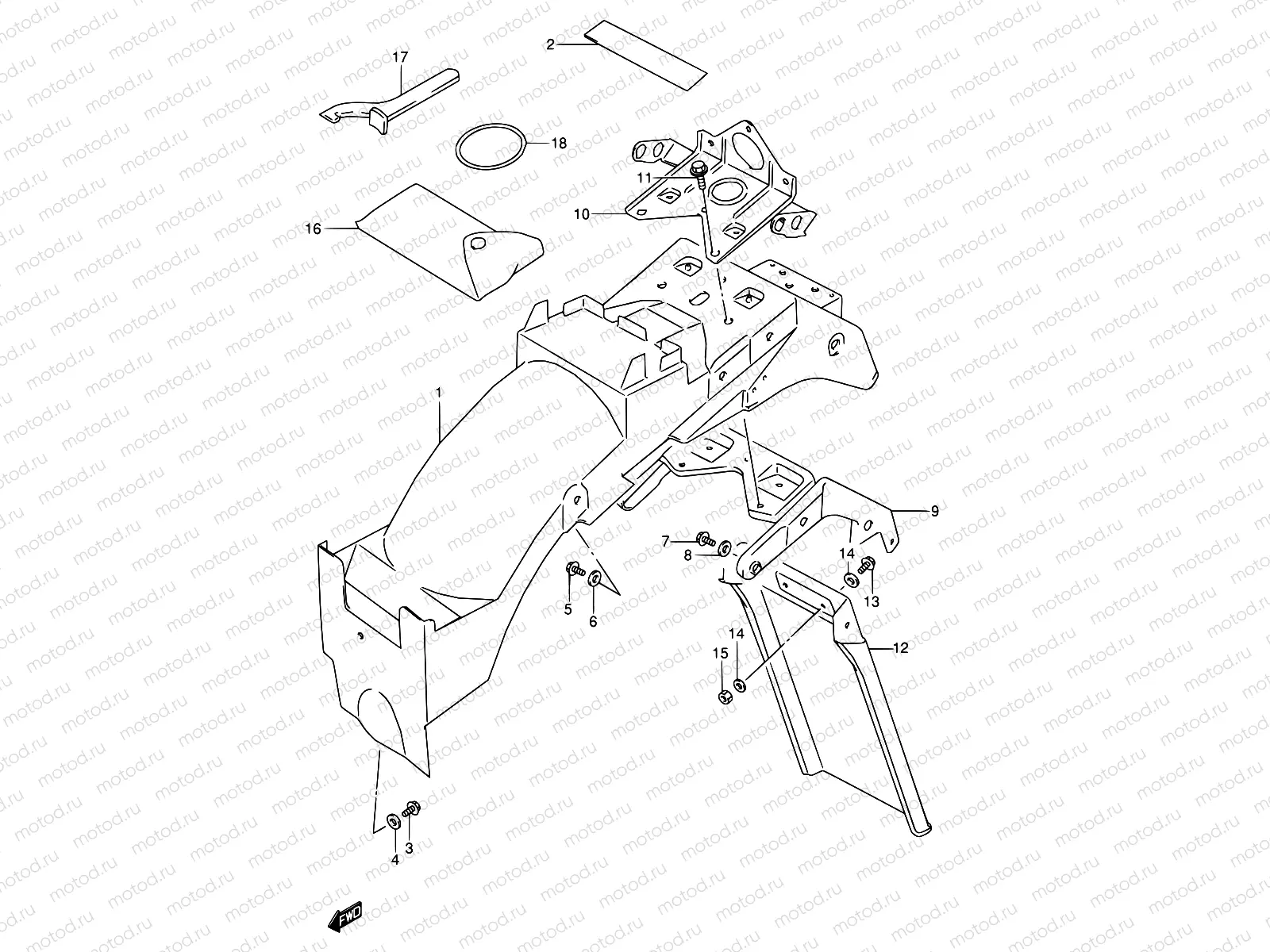

39A - REAR FENDER (MODEL S)

39A - REAR FENDER (MODEL S)
Например: 63111-19C00
1
63111-19C00
Body, rear fender
1
63111-19C20
Body,rear f.
2
63191-19C00
USHION,RR FENDER
227 ₽/шт
3
01550-0610B
Болт
85 ₽/шт
4
09169-06011
Пластина замка
759 ₽/шт
5
01550-0620B
БОЛТ
81 ₽/шт
6
09169-06011
Пластина замка
759 ₽/шт
7
01550-0620B
БОЛТ
81 ₽/шт
8
09169-06042
Шайба
3 480 ₽/шт
9
63120-19C00
Reinforcement
10
63460-19C01
Bracket comp
11
01550-0612B
БОЛТ
81 ₽/шт
12
63311-19C00
Extension, rear fender
13
02142-0616A
Болт
81 ₽/шт
14
09160-06084
Шайба 6.5X18X1
81 ₽/шт
15
08319-2106A
Гайка
114 ₽/шт
16
09800-21074
Tool assy
17
09822-00005
CLAMP
845 ₽/шт
18
09280-61004
O Ring(D:3.5,id:61)
2 700 ₽/шт
19
99011-20C58-042
O.m.gsx750/600f
