Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSX 600 F SUZUKI GSX600F S SUZUKI 12A - CARBURETOR (SEE NOTE)

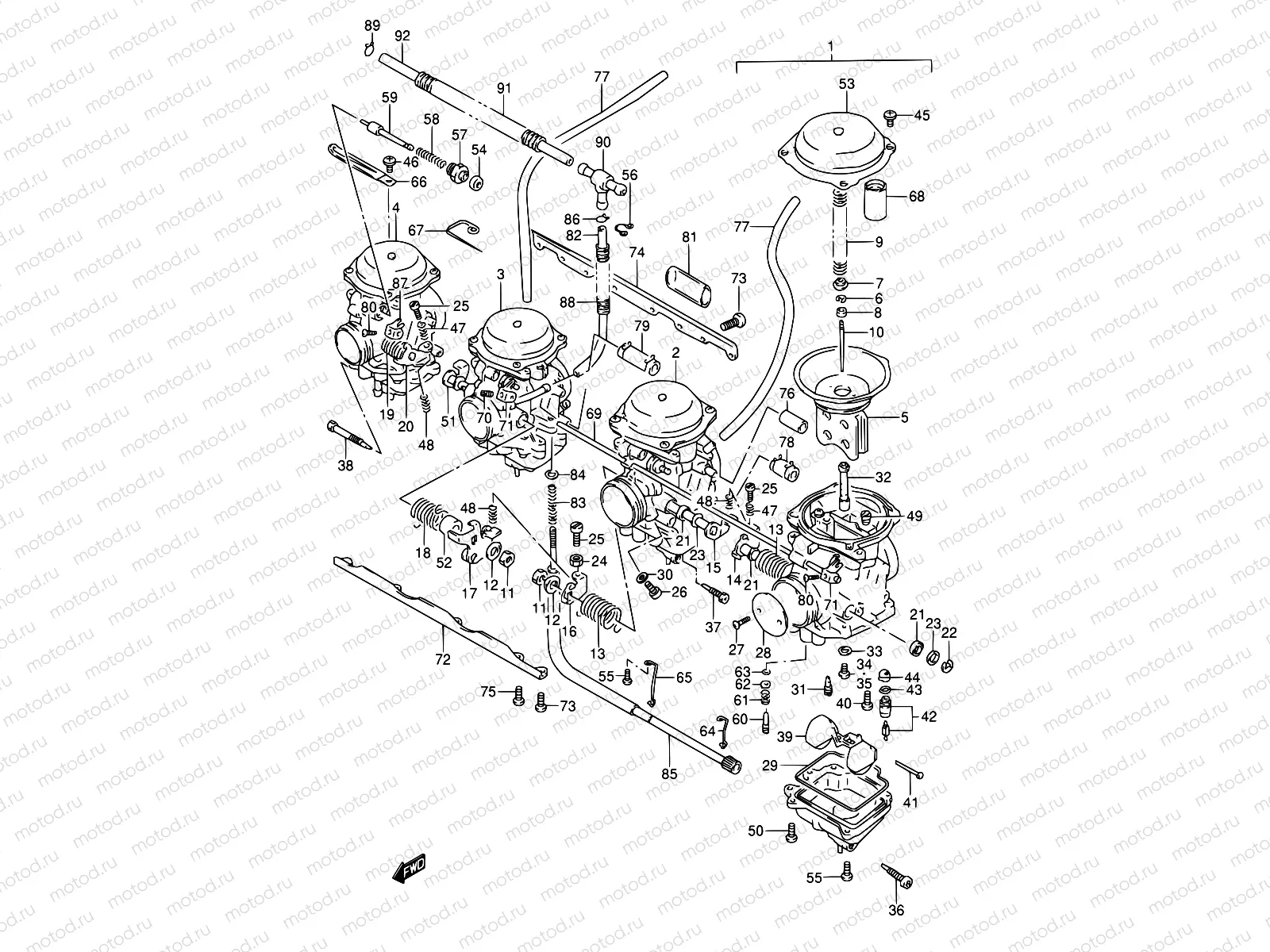

12A - CARBURETOR (SEE NOTE)

12A - CARBURETOR (SEE NOTE)
Например: 13201-43C00
1
13201-43C00
arburettor (LH)
1
13201-43C30
arburettor (LH)
1
13201-43C60
arburettor (LH)
1
13201-43C40
arburettor (LH)
1
13201-43C70
arburettor (LH)
1
13201-43C50
arburettor (LH)
2
13202-43C60
arburator
2
13202-43C30
arburetor assy, ml
2
13202-43C60
arburator
2
13202-43C40
arburetor assy, ml
2
13202-43C70
arburetor assy, ml
2
13202-43C50
arburetor assy, ml
3
13203-43C00
arburetor assy, mr
3
13203-43C30
arburetor assy, mr
3
13203-43C60
arburetor assy, mr
3
13203-43C40
arburetor assy, mr
3
13203-43C70
arburetor assy, mr
3
13203-43C50
arburetor assy, mr
4
13204-43C60
arburettor (RH)
4
13204-43C30
arburettor (RH)
4
13204-43C60
arburettor (RH)
4
13204-43C40
arburettor (RH)
4
13204-43C70
arburettor (RH)
4
13204-43C50
arburettor (RH)
5
13500-19C00
DIAPHRAGM ASSY
15 679 ₽/шт
6
13394-40D20
E RING
282 ₽/шт
7
13382-42A00
RING
187 ₽/шт
8
13387-47010
RING
323 ₽/шт
9
13417-26B00
Spring
10
13383-19C10
Needle,jet (4CZ3-3)
11
08310-0008B
Гайка
85 ₽/шт
12
13606-47070
WASHER,THROTTLE SHAFT
13
13573-28A10
.spring
14
13550-28A30
.shaft assy
15
13550-28A00
.shaft assy
16
13553-28A00
.lever
17
13555-28A00
.lever
18
13573-28A00
.spring
19
13573-28A20
.spring
20
13550-28A20
.shaft assy
21
13651-51011
Seal
231 ₽/шт
22
13617-44080
E RING
231 ₽/шт
23
13557-47070
GASKET,THROTTLE SHAFT
301 ₽/шт
24
13582-95216
Гайка
430 ₽/шт
25
13267-52012
.screw
26
13605-73000-000
Винт топливный
817 ₽/шт
27
13604-44080
Болт
235 ₽/шт
28
13551-42A30
.valve, throttle (130)
29
13251-42A00
Прокладка поплавковой камеры
629 ₽/шт
30
13249-78100
Шайба
231 ₽/шт
31
09492-40014
Жиклерпроводник
731 ₽/шт
31
09492-30010
Жиклерпроводник
1 220 ₽/шт
31
09492-32006
Жиклерпроводник
1 632 ₽/шт
32
09494-00623
.jet, needle (p-9)
32
09494-00625
.jet, needle (q-0)
33
13382-03110
Шайба
178 ₽/шт
34
09491-27010
JET,MAIN(137.5)
805 ₽/шт
35
09491-27009
Жиклер главный
805 ₽/шт
36
13247-24500
Plug,drain
37
13247-02340
Заглушка дренажная
258 ₽/шт
38
13247-02340
Заглушка дренажная
258 ₽/шт
39
13250-28A00
Поплавок
2 190 ₽/шт
40
13602-43410
Болт
172 ₽/шт
41
13254-92311
PIN,FLOAT
162 ₽/шт
42
13370-44500
Запорная игла поплавковой камеры
3 655 ₽/шт
43
13374-35C00
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
275 ₽/шт
44
13376-19F00
Фильтр-сеточка
581 ₽/шт
45
02112-0408B
Болт
940 ₽/шт
46
02142-0408B
Винт
82 ₽/шт
47
13271-28A00
Пружина
207 ₽/шт
48
13268-96111
Пружина
179 ₽/шт
49
09493-32002
JET
931 ₽/шт
49
09493-28005
Jet,air
49
09493-26005
Jet,air
50
02112-0412A
Болт
85 ₽/шт
51
13550-28A10
.shaft assy
52
13574-28A00
RING
53
13502-09F00
COVER,DIAPHRAGM
5 017 ₽/шт
54
13682-31210
CAP,STARTER VALVE
459 ₽/шт
55
13602-48B10
Болт
170 ₽/шт
56
13692-02500
Зажим шланга
559 ₽/шт
57
13418-44080
Держатель
867 ₽/шт
58
13417-43010
Пружина
289 ₽/шт
59
13411-05320
PLUNGER ASSY
1 396 ₽/шт
60
13279-47070
Винт топливный
884 ₽/шт
61
13268-47070
Пружина
272 ₽/шт
62
13291-29900
Шайба
162 ₽/шт
63
13295-29901
O-Ring, Pilot Air Screw
210 ₽/шт
64
13692-19C00
lip
65
13692-43C00
.clip
66
09404-06036
Clamp(L:80)
194 ₽/шт
67
13671-48B00
.clip
68
13331-19C00
.ring
68
13331-19C10
.ring
69
13586-48B00
Shaft, starter
70
13605-47070
Болт
407 ₽/шт
71
13422-48B10
Lever
72
13620-19CV0
73
02112-05127
Болт
81 ₽/шт
74
13628-19C10
Plate
75
09126-05005
Screw (5x14)
76
09354-65113-600
Cső (6.5x11.5x600)
77
09352-50005-600
ШЛАНГ
436 ₽/шт
78
13680-28A01
Hose assy
79
13680-28A01
Hose assy
80
13605-09300
SCREW,THROTTLE ADJUST
81
13684-43440
HOSE(16X19X100)
489 ₽/шт
82
09352-50006-600
Hose(5X9X600)
425 ₽/шт
83
13271-28A10
Spring
84
13432-47090
Шайба
156 ₽/шт
85
13267-43C00
Adjuster
86
09401-08413
Collier
87
13422-48B00
Lever
88
13684-19C00
Hose (10x14x225)
88
13684-19C20
Hose (10x14x90)
89
13671-05A40
ХОМУТ
170 ₽/шт
90
13685-48B00
NIPPLE
918 ₽/шт
91
13684-19C10
Hose (10x14x175)
92
13683-19C20
Hose (5x8x200)
