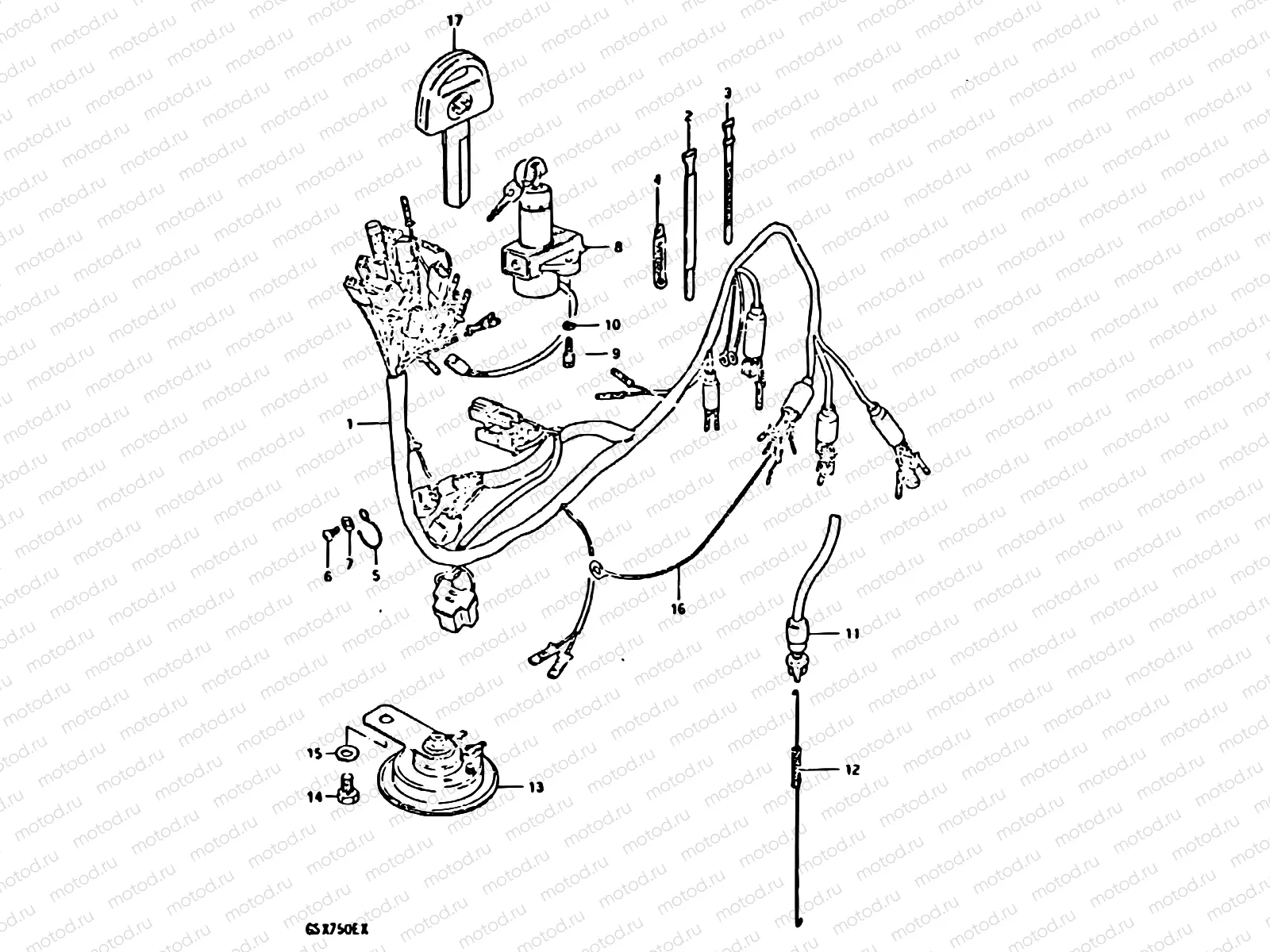

39 - WIRING HARNESS

39 - WIRING HARNESS
Например: 36610-45400
1
36610-45400
Wiring harness
2
09407-18302
Clamp
221 ₽/шт
3
09407-12402
Струбцина
211 ₽/шт
4
09404-06036
Clamp(L:80)
194 ₽/шт
4
09404-06039
Clamp(L:65)
194 ₽/шт
4
09404-08420
Струбцина L:137
221 ₽/шт
5
36619-44002
Clip
6
02112-06127
Болт
81 ₽/шт
6
02122-06127
Болт
85 ₽/шт
7
08322-0106A
Шайба
81 ₽/шт
8
37100-49201
Замок зажигания
30 501 ₽/шт
9
07130-06167
Болт
1 840 ₽/шт
10
08321-01067
Шайба, стопорная
81 ₽/шт
11
37740-48071
SWITCH ASSY,STOP LAMP
2 125 ₽/шт
12
09443-06048-XC0
Spring
12
09443-06033
Spring
13
38502-49001
HORN ASSY
14
01500-08127
Болт
81 ₽/шт
15
08322-01087
Шайба
81 ₽/шт
16
36851-46E00
Wire,press swit
17
37146-47010
KEY,BLANK
1 541 ₽/шт
