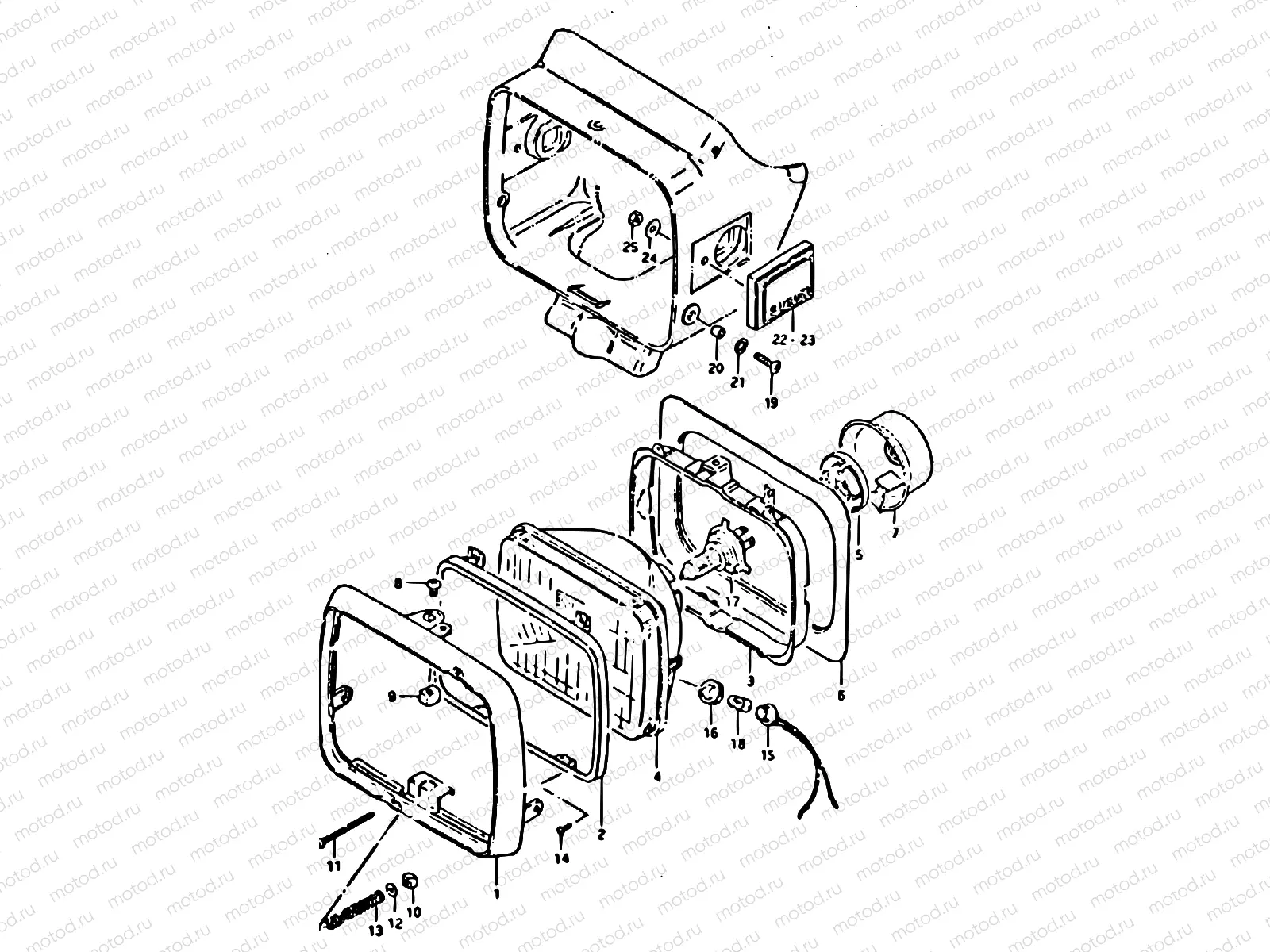

23 - HEADLAMP (E02)

23 - HEADLAMP (E02)
Например: 35111-49200
1
35111-49200
Rim,head lamp
2
35127-49200
.ring
3
35130-49200
.ring, mounting
4
35121-49220
.unit
5
35136-49200
Holder,head lam
6
35129-49200
.shade
7
35173-38A00
COVER,SOCKET
931 ₽/шт
8
02112-05127
Болт
81 ₽/шт
9
35152-49200
.nut
10
35135-45600
Гайка
207 ₽/шт
11
35151-45900
Винт
301 ₽/шт
12
35157-27630
WASHER
192 ₽/шт
13
35154-49200
Пружина
289 ₽/шт
14
02112-0308A
Болт
1 060 ₽/шт
15
36118-49320
SOCKET
864 ₽/шт
16
36116-22630
JOINT,RUBBER
422 ₽/шт
17
K9206-91002
Bulb,12v 60/55w
18
09471-12063-LCP
Bulb 6v/1,7w
19
02142-05167
Винт воздухозаборника №2
81 ₽/шт
20
09180-05047
Кольцо/шайба
1 250 ₽/шт
21
09168-08011
Rondelle
22
35993-49200
Emblem, front side rh
23
35994-49200
Emblem, front side lh
24
09160-05013
Шайба
81 ₽/шт
25
08310-00057
Гайка
81 ₽/шт
38
35100-49220-999
Headlamp assy
