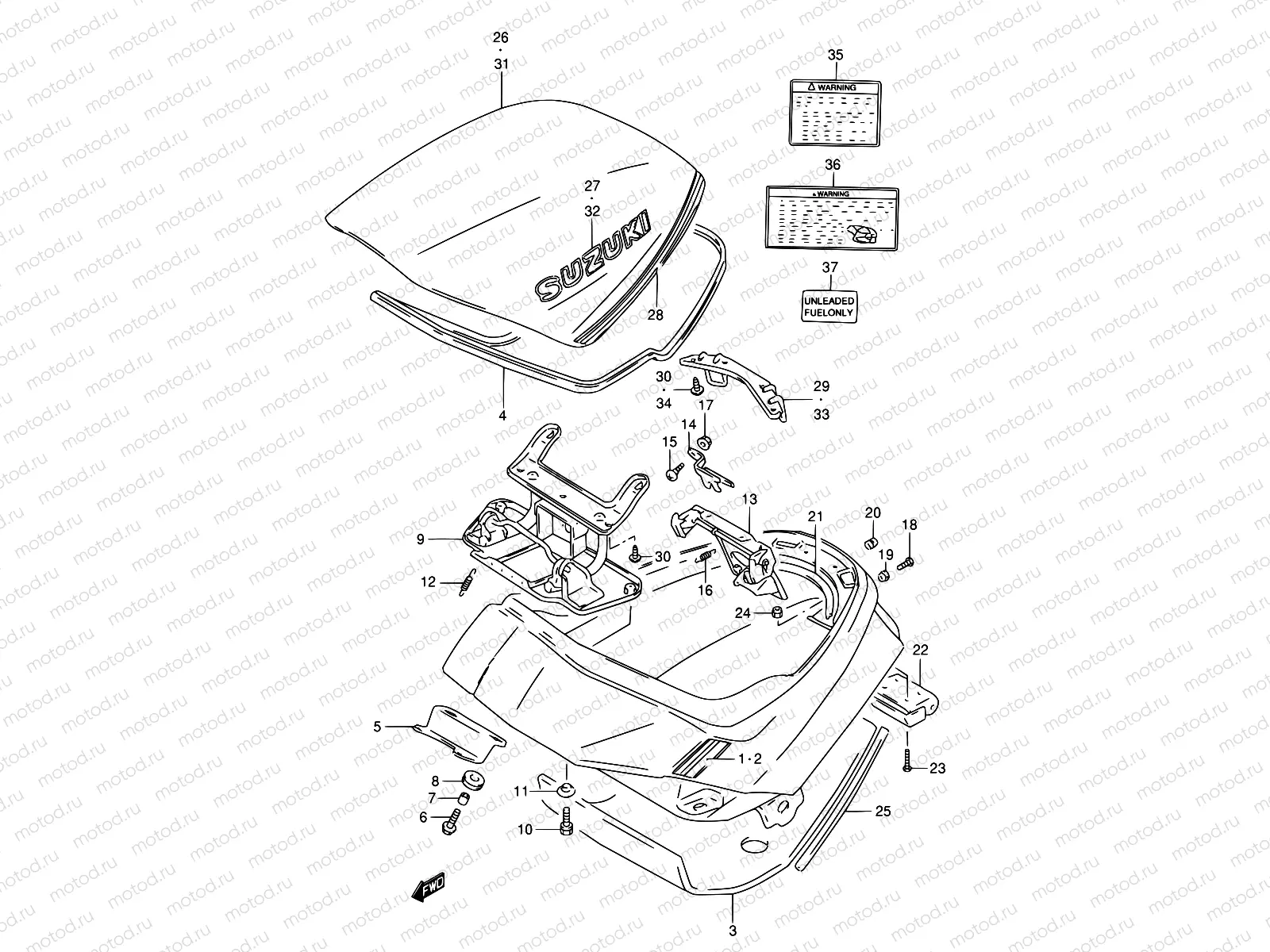

39 - TRUNK (MODEL M)

39 - TRUNK (MODEL M)

Например: 93100-24D01-19A

0

93100-24D01-19A

Trunk assy (red)

0

93100-24D10-0JW

Trunk assy (white)

1

68235-24D00-0VV

.tape, body trunk rh

2

68245-24D00-0VV

.tape, body trunk lh

3

93115-24D01

.seat, trunk outer

4

93131-24D01

.molding, trunk

5

93136-24D00

PLATE,TRUNK FR

1 361 ₽/шт

6

09118-06034

.bolt

7

09180-06138

SPACER(6.3X9.1X11.5)

1 560 ₽/шт

8

09320-08510

Втулка резиновая (8.5X20X8)

194 ₽/шт

9

93140-24D01

.hinge, trunk front

10

01570-06167

БОЛТ

72 ₽/шт

11

09169-06045

Шайба

1 060 ₽/шт

12

09443-11026

.spring

13

93310-24D01

.clamp, trunk rear

14

93320-24D00

.lock, clamp

15

09139-05038

Болт

129 ₽/шт

16

09443-06082

.spring

17

08319-3105A

Гайка

1 880 ₽/шт

18

02142-0512A

Болт

85 ₽/шт

19

09169-05019

Шайба

1 640 ₽/шт

20

09250-08013

CAP(OD:12)

1 410 ₽/шт

21

93131-24D10

.molding, trunk inner

22

93135-24D00

.hinge, trunk rear

23

02142-0516B

Болт

85 ₽/шт

24

08319-21057

Гайка

97 ₽/шт

25

93117-24D00

.cushion, trunk outer

26

93210-24820-0JW

.lid, trunk (white)

27

68111-24D00-20H

..emblem, "suzuki" (silver)

28

68115-24D01-0VV

..tape, lid trunk

29

95440-24D00

..hook, trunk lid

30

03241-1512B

Болт

82 ₽/шт

31

93210-24810-19A

.lid, trunk (red)

32

68111-24D00-29F

..emblem, "suzuki" (brown)

33

95440-24D00

..hook, trunk lid

34

03241-1512B

Болт

82 ₽/шт

35

68319-33E02

Label,general Warning

1 155 ₽/шт

36

68611-24D20

Label, warning trunk

37

86932-73060

Ярлык топлива

162 ₽/шт
