Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI GSX 250 SUZUKI GSX250F M SUZUKI 19 - TRANSMISSION (MODEL M)

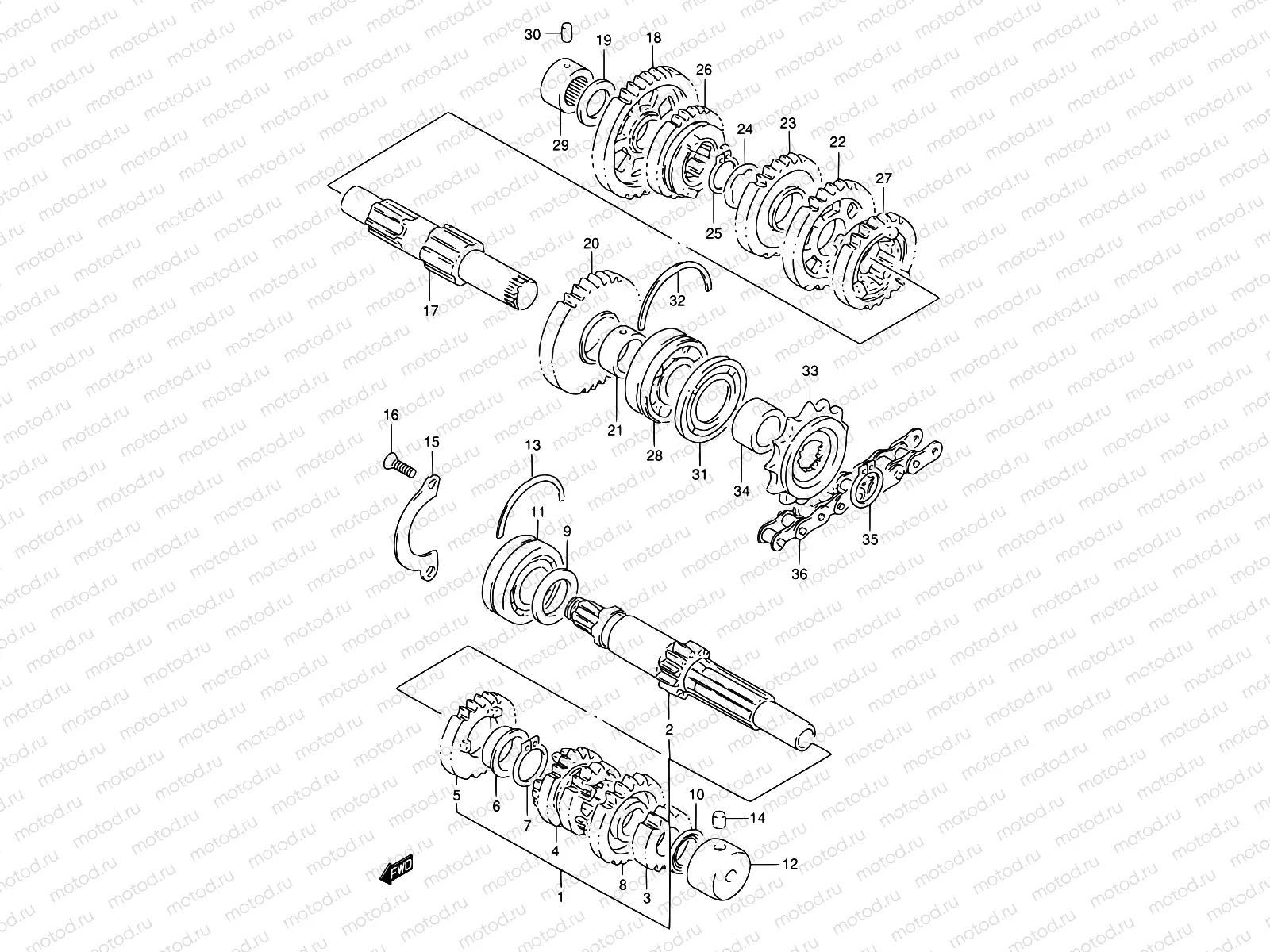

19 - TRANSMISSION (MODEL M)

19 - TRANSMISSION (MODEL M)

Например: 24120-11D00

1

24120-11D00

Shaft, counter

2

24121-24D10

.shaft, counter (nt:12)

3

24221-24D10

.gear, 2nd drive (nt:15)

4

24231-24D11

.gear, 3rd/4th drive (nt:18/20)

5

24251-11D00

.gear, 5th drive (nt:19)

6

09301-22002

Втулка

6 410 ₽/шт

7

08331-31229

Зажимы

153 ₽/шт

8

24260-11D00

.gear, 6th drive (nt:22)

9

09181-25167

Шайба

194 ₽/шт

10

09285-17003

Сальник

489 ₽/шт

11

09267-25008

Ball bearing 25

12

09263-17044

Bearing

13

09390-58001

ПОЛУКОЛЬЦО GV 2.0

1 720 ₽/шт

14

04221-07129

PIN

1 060 ₽/шт

15

24741-38401

RETAINER,CNTR SHAFT BEARING

438 ₽/шт

16

02122-0616B

Болт

85 ₽/шт

17

24131-05C01

Shaft, drive

18

24310-24D10

Gear, 1st driven (nt:37)

19

09181-20223

SHIM(20X32X1)

1 720 ₽/шт

20

24321-24D10

Gear, 2nd driven (nt:33)

21

09300-22007

Bush

22

24331-24D11

Gear, 3rd driven (nt:31)

23

24341-24D12

Gear, 4th driven (nt:29)

24

09167-25012

Шайба

1 840 ₽/шт

25

09380-25009

CIRCLIP

1 840 ₽/шт

26

24351-11D00

Gear, 5th driven (nt:25)

27

24361-11D00

Gear, 6th driven (nt:27)

28

09262-22028

Подшипник

4 590 ₽/шт

29

09263-20040

ПОДШИПНИК ШАРИКОВЫЙ

4 505 ₽/шт

30

04221-07129

PIN

1 060 ₽/шт

31

09283-30044

SEAL,OIL(30X56X6)

2 100 ₽/шт

32

09390-56001

Кольцо стопорное

2 030 ₽/шт

33

27510-05C00

Sprocket, engine (nt:13)

34

09180-22042

Spacer (22x30x17)

35

08331-31229

Зажимы

153 ₽/шт

36

27600-34A40-110

Chain assy, (rk520smo)
