Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1300 R Hayabusa SUZUKI GSX1300R K8 Hayabusa (E24) SUZUKI 39 - FUEL TANK (MODEL K8)

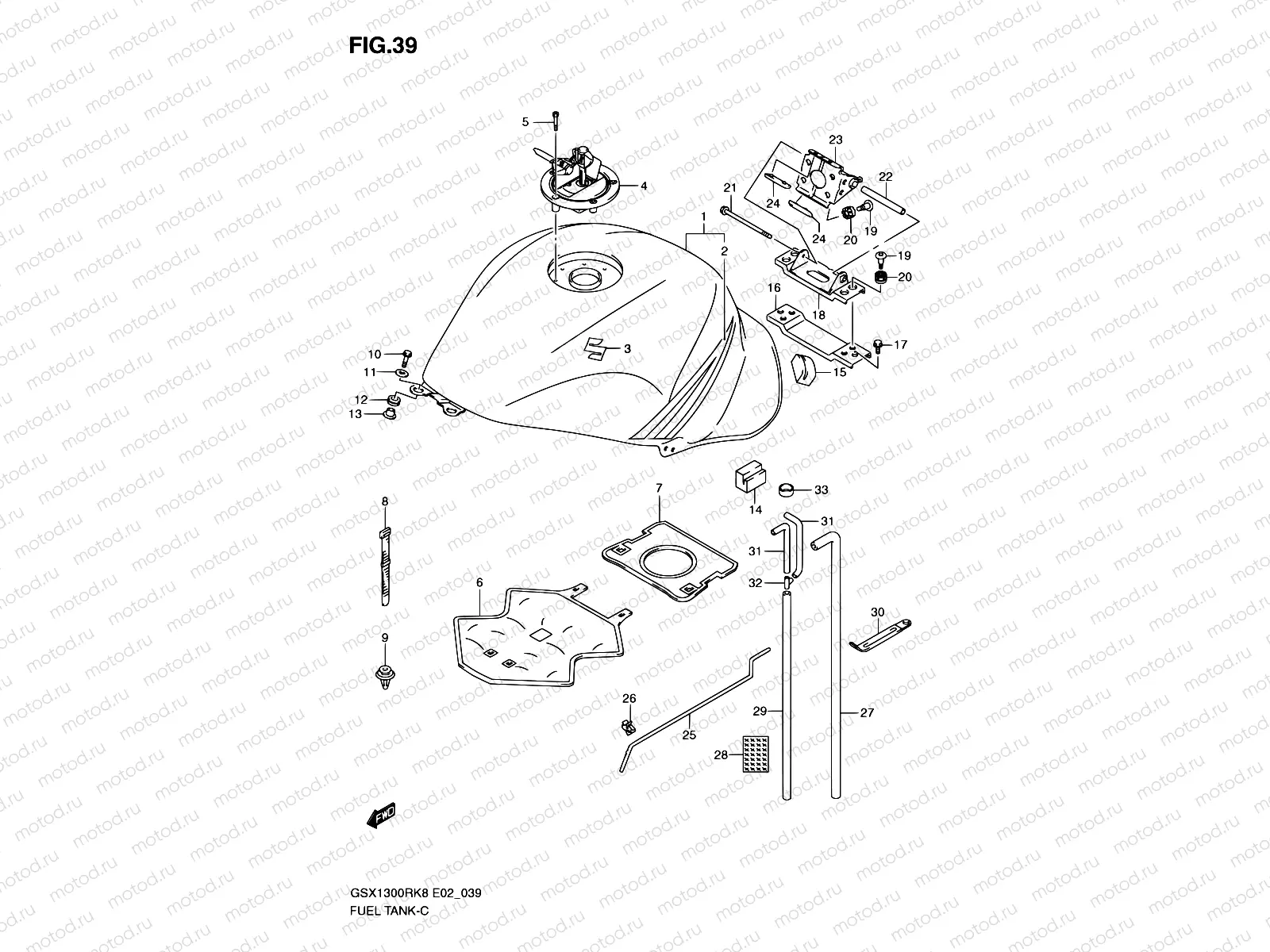

39 - FUEL TANK (MODEL K8)

39 - FUEL TANK (MODEL K8)

Например: 44100-15H11-YHF

1

44100-15H11-YHF

TANK ASSY,FUEL(GRAY)

146 566 ₽/шт

1

44100-15H11-YPA

TANK ASSY. FUEL (WHITE)

1

44100-15H11-YME

TANK ASSY,FUEL(ORANGE)

124 916 ₽/шт

1

44100-15H11-YKZ

TANK,FUEL GSX1300R/K8

1

44100-15H01-YHF

Tank assy, fuel (gray)

1

44100-15H01-YPA

Tank assy, fuel (white)

1

44100-15H01-YME

TANK ASSY,FUEL(ORANGE)

146 566 ₽/шт

1

44100-15H01-YKZ

Tank assy, fuel (blue)

2

68110-15H00-EWW

Эмблема

4 301 ₽/шт

2

68110-15H00-EWY

Эмблема

4 301 ₽/шт

2

68110-15H00-EWZ

Эмблема

4 301 ₽/шт

2

68110-15H00-EYA

Эмблема

4 301 ₽/шт

3

68111-18G20

ЭМБЛЕМА "S"

1 857 ₽/шт

4

44200-16851

Cap Set,fuel Tank Filler

21 420 ₽/шт

5

09106-05017

БОЛТ

113 ₽/шт

6

44191-15H00

SHIELD,FUEL TANK HEAT NO.1

9 462 ₽/шт

7

44191-15H10

SHIELD,FUEL TANK HEAT NO.2

4 145 ₽/шт

8

09407-18402

Струбцина (L:165)

211 ₽/шт

9

09409-06322-5PK

ХОМУТ МАЛЫЙ

306 ₽/шт

10

09139-06029

Болт

178 ₽/шт

11

09160-06054

Шайба

129 ₽/шт

12

44511-16G01

Cushion,fuel Tank Fr

352 ₽/шт

13

44512-16G00

Кольцо/шайба

307 ₽/шт

14

44541-24F01

Cushion,fuel Tank Side

536 ₽/шт

15

44543-15H01

Cushion,fuel Tank Rr

387 ₽/шт

16

44555-15H00

BRACKET,FUEL TANK RR NO.3

921 ₽/шт

17

01550-0812B

Болт

97 ₽/шт

18

44550-15H01

BRACKET,FUEL TANK RR NO.2

2 678 ₽/шт

19

09139-06191

БОЛТ

172 ₽/шт

20

09320-08071

САЙЛЕНТБЛОК

255 ₽/шт

21

07120-0695B

OLT

2 580 ₽/шт

22

44561-18G00

Прокладка

1 079 ₽/шт

23

44530-15H01

BRACKET,FUEL TANK RR NO.1

2 796 ₽/шт

24

45149-44G01

Cushion,rear br

25

44574-35F00

STAY,FUEL TANK

1 567 ₽/шт

26

09403-05310

CLAMP

2 030 ₽/шт

27

44423-15H01

ose,fuel Tank Drain

1 666 ₽/шт

28

44427-15H00

SHIELD,DRAIN HOSE HEAT

1 044 ₽/шт

29

44424-15H01

ose,fuel Tank Brthr

1 513 ₽/шт

30

09404-06039

Clamp(L:65)

194 ₽/шт

31

44424-15H11

ose,fuel Tank Brthr No.3

899 ₽/шт

32

09367-06007

WAY

211 ₽/шт

33

09352-12164-600

Hose(12X16X600)

1 421 ₽/шт
