Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1300 R Hayabusa SUZUKI GSX1300R K8 Hayabusa (E24) SUZUKI 24 - TRANSMISSION

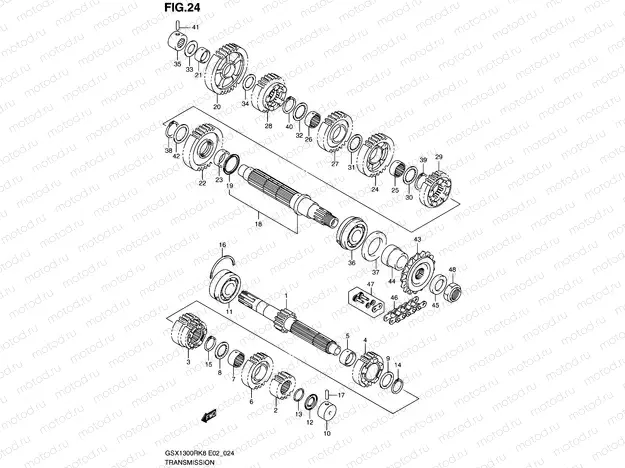

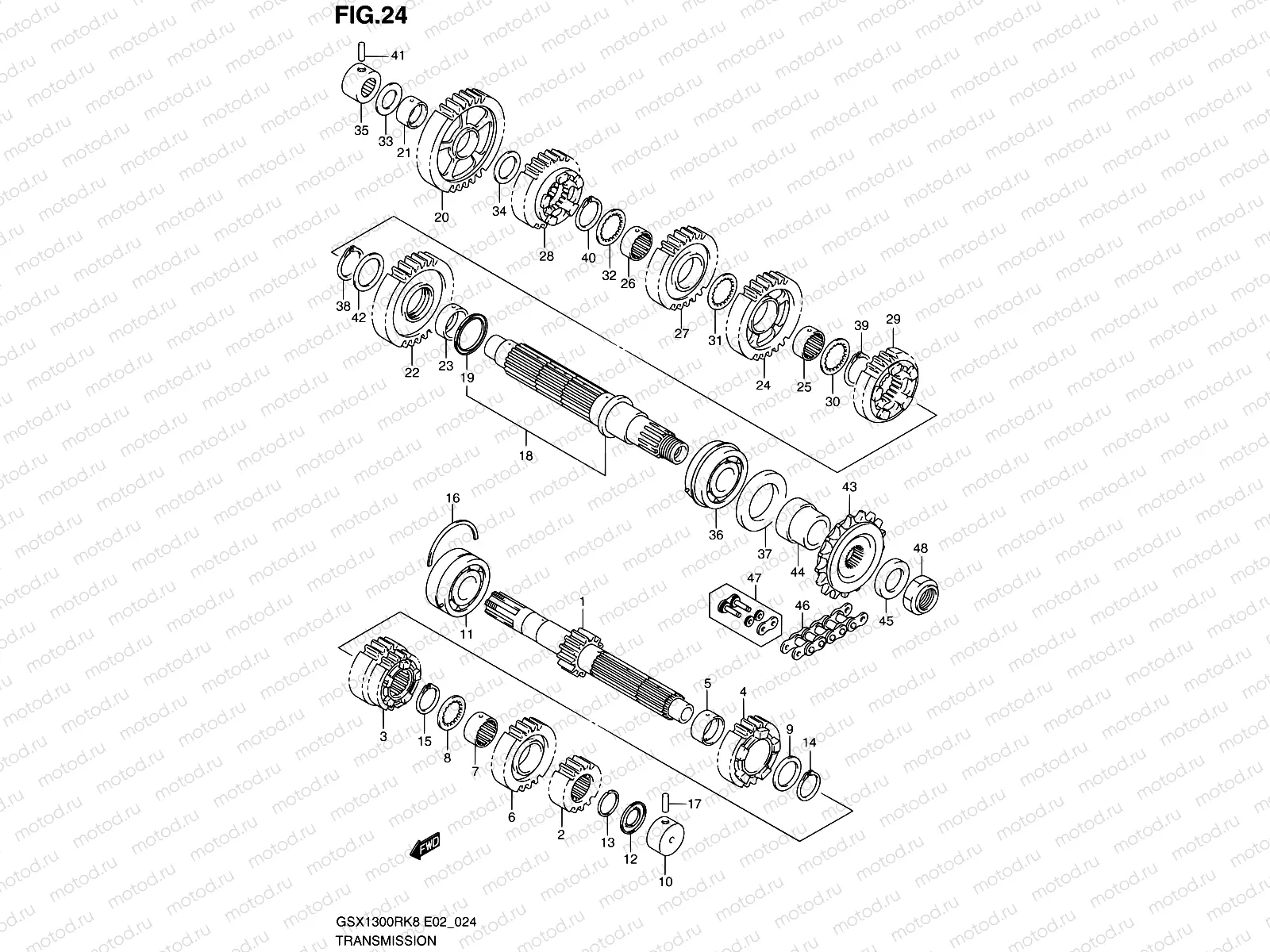

24 - TRANSMISSION

24 - TRANSMISSION

Например: 24120-24F00

1

24120-24F00

SHAFT,COUNTER

27 115 ₽/шт

2

24221-15H00

GEAR,2ND DRIVE

8 041 ₽/шт

3

24231-15H00

GEAR,3RD & 4TH DRIVE

13 745 ₽/шт

4

24251-15H01

GEAR,5TH DRIVE

10 846 ₽/шт

5

24252-24F10

BUSH,5TH DRIVE GEAR

2 244 ₽/шт

6

24261-15H00

GEAR,6TH DRIVE

14 586 ₽/шт

7

24262-24F10

BUSH,6TH DRIVE GEAR

2 244 ₽/шт

8

09167-27003

ШАЙБА

255 ₽/шт

9

09181-27014

SHIM(27X36X2.5)

306 ₽/шт

10

09263-20085

BEARING(20X34X17.5)

4 420 ₽/шт

11

09267-25012

BEARING(25X62X25.4)

6 800 ₽/шт

12

09285-20006

Сальник

598 ₽/шт

13

09380-27004

КЛИПС

187 ₽/шт

14

09380-27006

КЛИПС

187 ₽/шт

15

09380-27006

КЛИПС

187 ₽/шт

16

09390-62012

C RING

4 460 ₽/шт

17

04221-07209

ШТИФТ

102 ₽/шт

18

24130-15H00

Вал ведущий

21 114 ₽/шт

19

24136-48G01

RING,DRIVE SHAFT FRICTION

2 019 ₽/шт

20

24311-15H00

GEAR,1ST DRIVEN

14 960 ₽/шт

21

24312-24F10

BUSH,1ST DRIVEN GEAR

2 244 ₽/шт

22

24321-15H00

GEAR,2ND DRIVEN

11 407 ₽/шт

23

24322-48G00

ВТУЛКА ТРАНСМИССИИ

2 338 ₽/шт

24

24331-15H00

GEAR,3RD DRIVEN

10 472 ₽/шт

25

24332-24F10

ВТУЛКА ТРАНСМИССИИ

2 244 ₽/шт

26

24332-24F10

ВТУЛКА ТРАНСМИССИИ

2 244 ₽/шт

27

24341-15H00

GEAR,4TH DRIVEN

11 314 ₽/шт

28

24351-15H01

GEAR,5TH DRIVEN

13 647 ₽/шт

29

24361-15H00

GEAR,6TH DRIVEN

13 371 ₽/шт

30

09167-30008

ШАЙБА

281 ₽/шт

31

09167-30008

ШАЙБА

281 ₽/шт

32

09167-30008

ШАЙБА

281 ₽/шт

33

09181-20251

Шайба (T:1.0)

172 ₽/шт

34

09181-24005

ШАЙБА

204 ₽/шт

35

09263-20040

ПОДШИПНИК ШАРИКОВЫЙ

4 505 ₽/шт

36

09267-30011

BEARING(30X62X23.8)

6 970 ₽/шт

37

09283-42018

Уплотнение вала

2 100 ₽/шт

38

09380-30009

КЛИПС

204 ₽/шт

39

09380-30009

КЛИПС

204 ₽/шт

40

09380-30009

КЛИПС

204 ₽/шт

41

04221-07209

ШТИФТ

102 ₽/шт

42

08211-30405

Шайба

238 ₽/шт

43

27511-15H00

Sprocket,engine

44

27531-15H00

SPACER,ENGINE SPROCKET NO.1

2 151 ₽/шт

45

27532-15H00

SPACER,ENGINE SPROCKET NO.2

916 ₽/шт

46

27600-24F60-118

Цепь масляного насоса

36 363 ₽/шт

47

27620-24F60

JOINT SET,CHAIN

1 212 ₽/шт

48

09159-22008

ШАЙБА ТРАНСМИССИИ, МЕТАЛЛ

18 460 ₽/шт
