Главная Каталог товаров SUZUKI EPC < 124 cm³ SUZUKI TS 50 SUZUKI TS50XK E SUZUKI 38 - REAR SWINGING ARM (SEE NOTE)

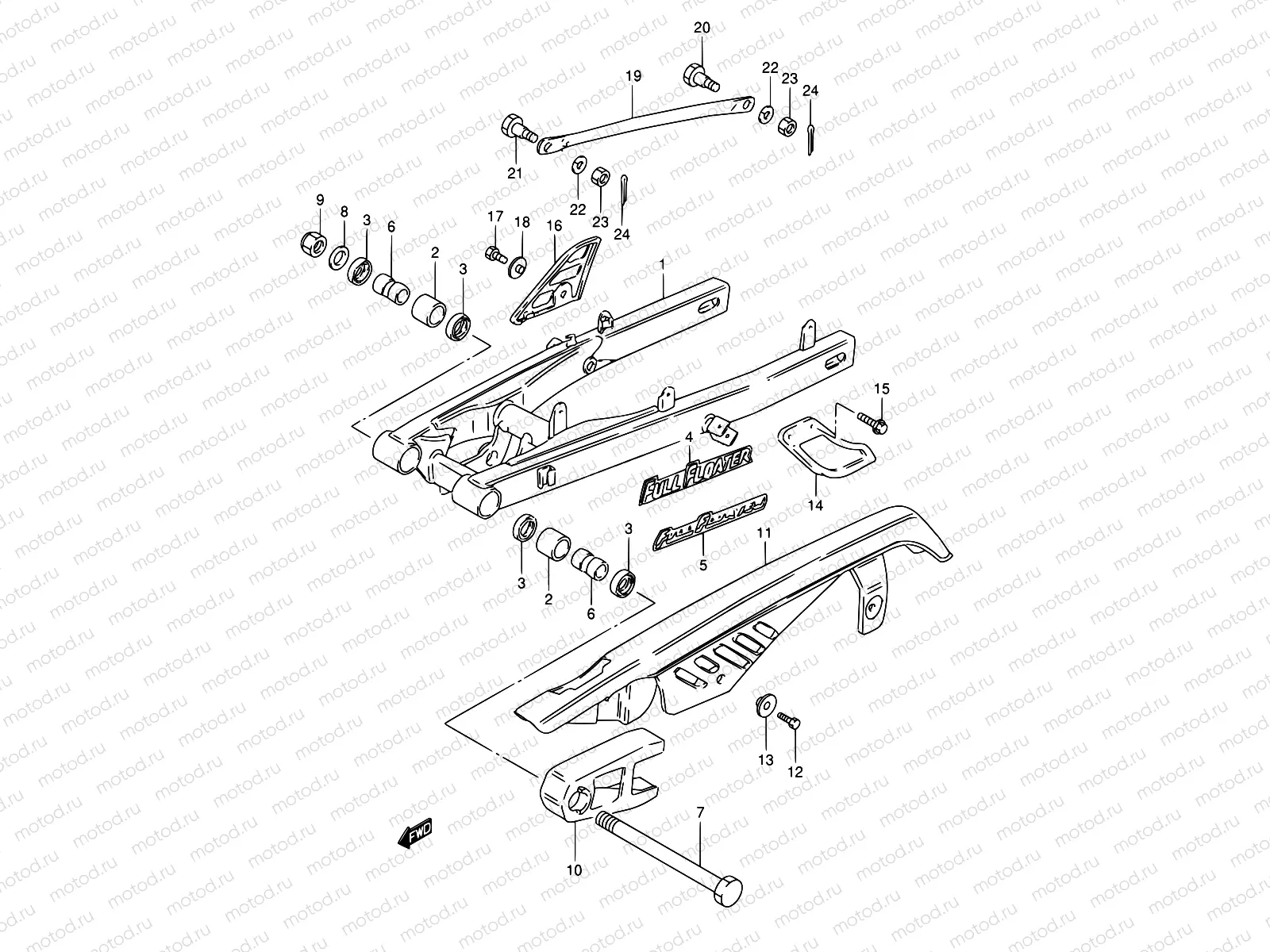

38 - REAR SWINGING ARM (SEE NOTE)

38 - REAR SWINGING ARM (SEE NOTE)

Например: 61000-13624-08C

1

61000-13624-08C

Swinging arm assy, rear (gold)

2

61261-13700

BUSHING,RR SWGARM PIVOT

962 ₽/шт

3

09283-20031

SEAL,OIL(20X27X5)

339 ₽/шт

4

68381-20920-97J

Emblem

6

61251-13700

Spacer,rr

7

61211-1370V

Shaft,rr swgarm

8

08322-01147

Шайба

85 ₽/шт

9

08319-2114A

Гайка

2 390 ₽/шт

10

61273-13610

Buffer,chain to

11

61311-13610-291

Case,chain

12

01500-0610B

Болт

85 ₽/шт

13

09169-06026

Пластина замка

119 ₽/шт

14

61341-05250

Guide, chain

14

61341-13710

Guide,chain

15

01550-0616B

БОЛТ

81 ₽/шт

16

61391-13610

Guard, foot

17

01500-0610B

Болт

85 ₽/шт

18

09169-06026

Пластина замка

119 ₽/шт

19

64311-48700-13L

TORQUELINK,RR

1 279 ₽/шт

20

09111-08013

BOLT(8X26.5)

178 ₽/шт

21

09111-08015

BOLT(8X22)

1 840 ₽/шт

22

08321-01087

Пластина замка

81 ₽/шт

23

09140-08008

ШАЙБА

97 ₽/шт

24

04111-2020A

Штифт

81 ₽/шт
