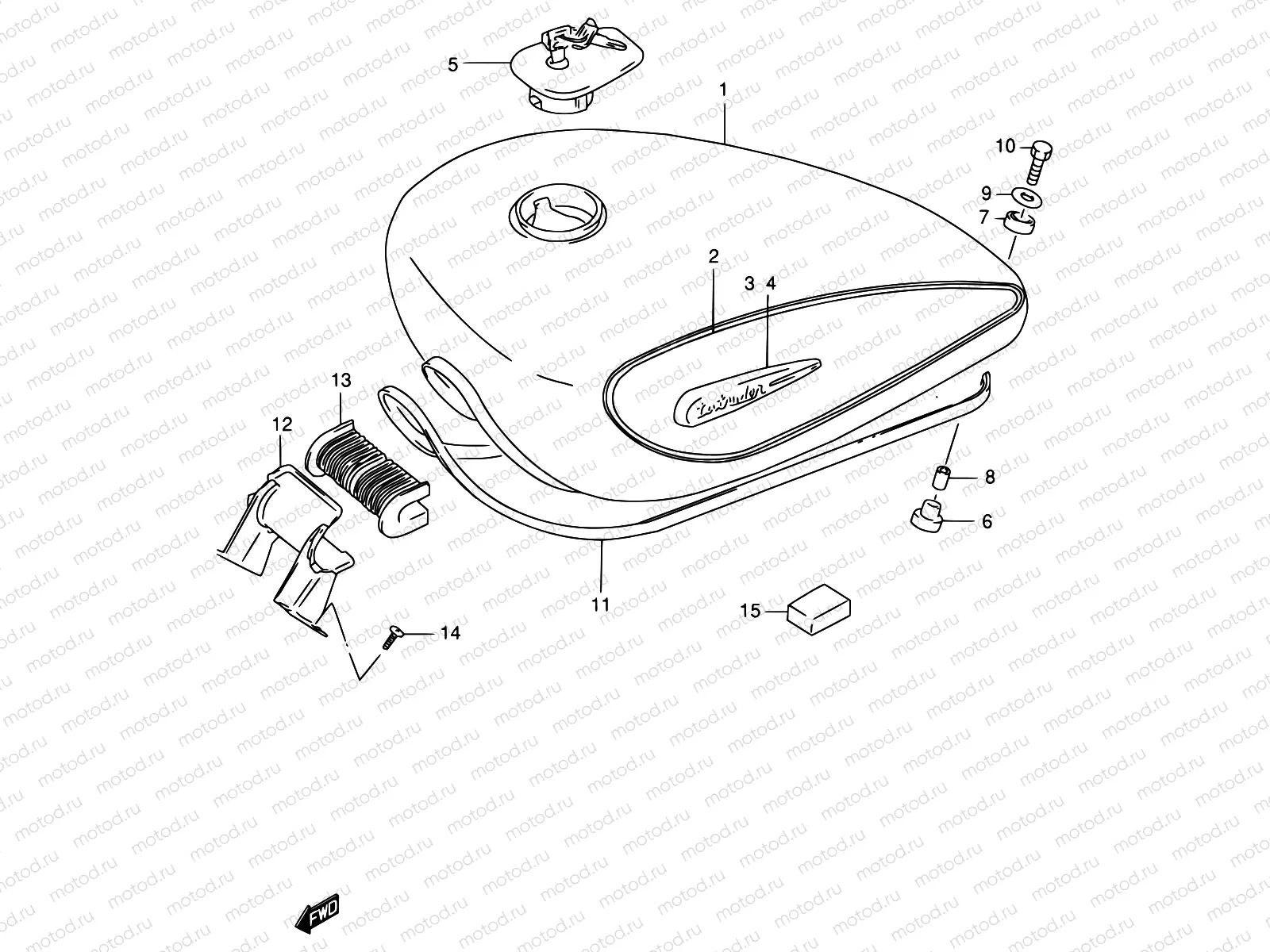

38 - FUEL TANK (MODEL W)

38 - FUEL TANK (MODEL W)
Например: 44100-38E40-19A
1
44100-38E40-19A
Fuel tank (Red)
1
44100-38E40-33J
Fuel tank (Black)
1
44100-38E30-Y98
Tank assy, fuel (green)
1
44100-38E40-19A
Fuel tank (Red)
1
44100-38E40-33J
Fuel tank (Black)
1
44100-38E40-Y98
Tank assy, fuel (green)
2
68110-38E00-J7H
.tape set, fuel tank
2
68110-38E00-J7J
Autocollant (Fuel tank)
2
68110-38E00-J7K
.tape set, fuel tank
3
68111-38E00
MBLEM,FUEL TANK,R
3 949 ₽/шт
4
68121-38E00
MBLEM,FUEL TANK,L
5 373 ₽/шт
5
44200-38820
CAP SET,FUEL TANK
9 384 ₽/шт
6
09320-10038
CUSHION
115 ₽/шт
7
09320-14013
Валик топливного бака
221 ₽/шт
8
09180-06273
Кольцо/шайба
2 460 ₽/шт
9
09160-06501
Шайба
102 ₽/шт
10
01500-0635A
Болт
1 330 ₽/шт
11
68241-04X50-00B
MOLDING
1 696 ₽/шт
12
44250-38A01-019
Кронштейн
6 803 ₽/шт
13
44511-38A01
CUSHION,FUEL TANK FR
790 ₽/шт
14
02112-7616A
Болт
102 ₽/шт
15
56314-48B10
CUSHION
210 ₽/шт
