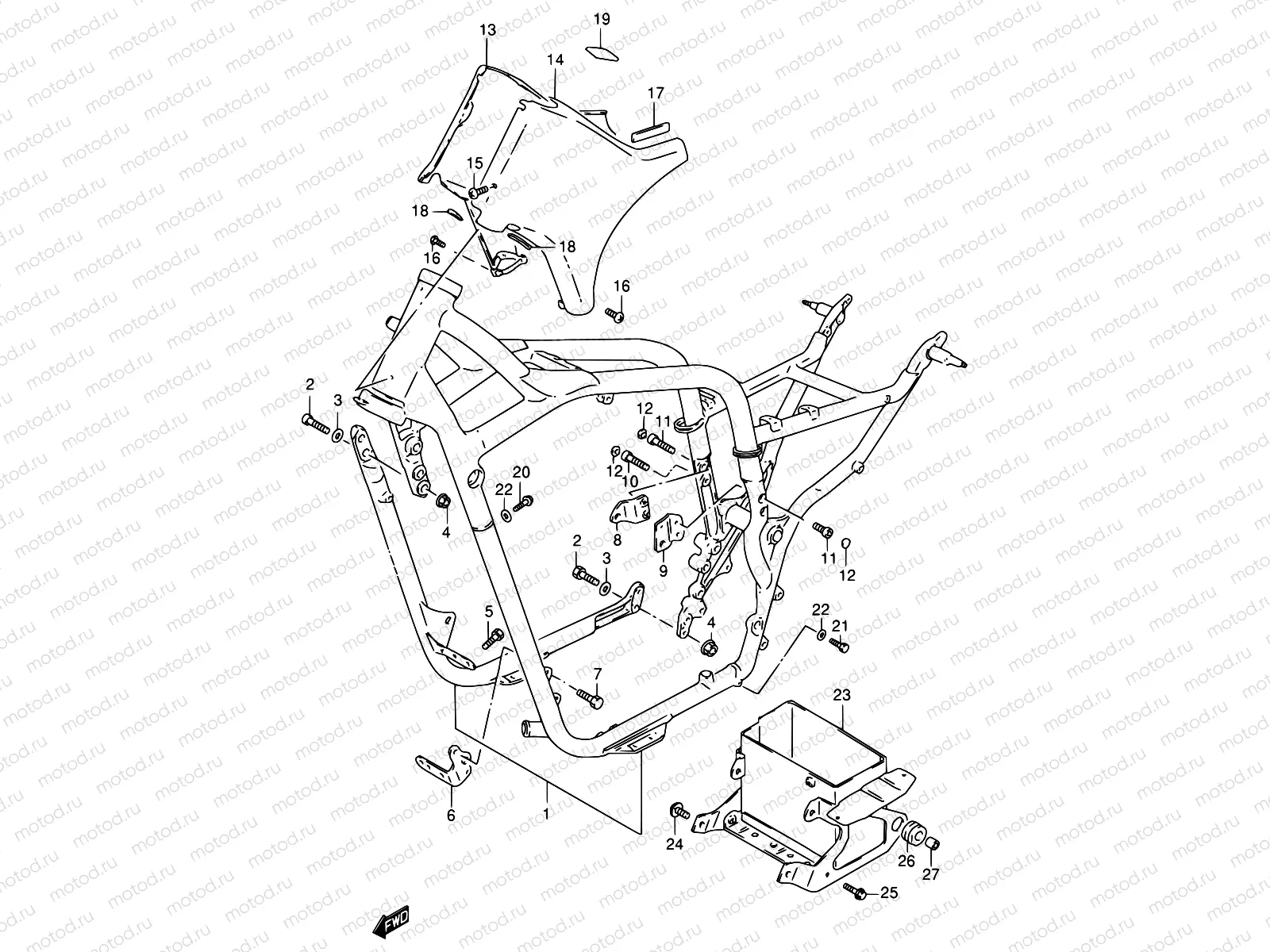

34 - FRAME (MODEL W)

34 - FRAME (MODEL W)

Например: 41101-39813-19A

1

41101-39813-19A

Frame set (red)

1

41101-39813-33J

Frame set(blck)

1

41101-39813-33J

Frame set(blck)

1

41101-39823-19A

Frame set (red)

1

41101-39823-33J

Frame set (black)

1

41101-39823-Y98

Frame set (green)

2

09106-10019

BOLT(10X33)

2 310 ₽/шт

3

09164-10010

Шайба

3 250 ₽/шт

4

08319-3110B

Гайка

1 920 ₽/шт

5

01550-0820A

БОЛТ

102 ₽/шт

6

41920-38A00-019

Plate,eng mount

7

01570-0816A

БОЛТ

102 ₽/шт

8

41950-38A11-019

PLATE,ENGINE MOUNT NO.3,R

2 757 ₽/шт

9

41960-38A10-019

PLATE,ENGINE MOUNT NO.3,L

2 248 ₽/шт

10

07130-0830A

БОЛТ (хром)

2 070 ₽/шт

11

09106-08070

Болт верхний

3 280 ₽/шт

12

09250-06004

CAP(OD:14.5)

97 ₽/шт

13

47350-38A01-13L

COVER,FRAME HEAD,R(SILVER)

42 228 ₽/шт

13

47350-38A01-33J

Cover,frm.head

13

47350-38A01-Y98

Cover,frm hd.,r

14

47360-38A01-13L

COVER,FRAME HEAD,L(SILVER)

42 228 ₽/шт

14

47360-38A01-13L

COVER,FRAME HEAD,L(SILVER)

42 228 ₽/шт

14

47360-38A01-Y98

Cover,frm hd.,l

15

02142-0610B

Винт держатель

85 ₽/шт

16

02112-0425B

Болт

85 ₽/шт

17

33652-07D00

КОЖУХ

299 ₽/шт

18

68241-04X50-300

MOLDING

262 ₽/шт

19

47358-38A00

TAPE,FRAME HEAD COVER

559 ₽/шт

20

09360-06007

Болт соединяющий

179 ₽/шт

21

01550-0610B

Болт

85 ₽/шт

22

09168-06004

Кольцо прокладочное

113 ₽/шт

23

41540-38A12

HOLDER,BATTERY

12 395 ₽/шт

24

01550-1016A

Болт

1 840 ₽/шт

25

01550-0616B

БОЛТ

81 ₽/шт

26

09320-12031

САЙЛЕНТБЛОК

204 ₽/шт

27

09301-08009

Кольцо/шайба

3 400 ₽/шт
