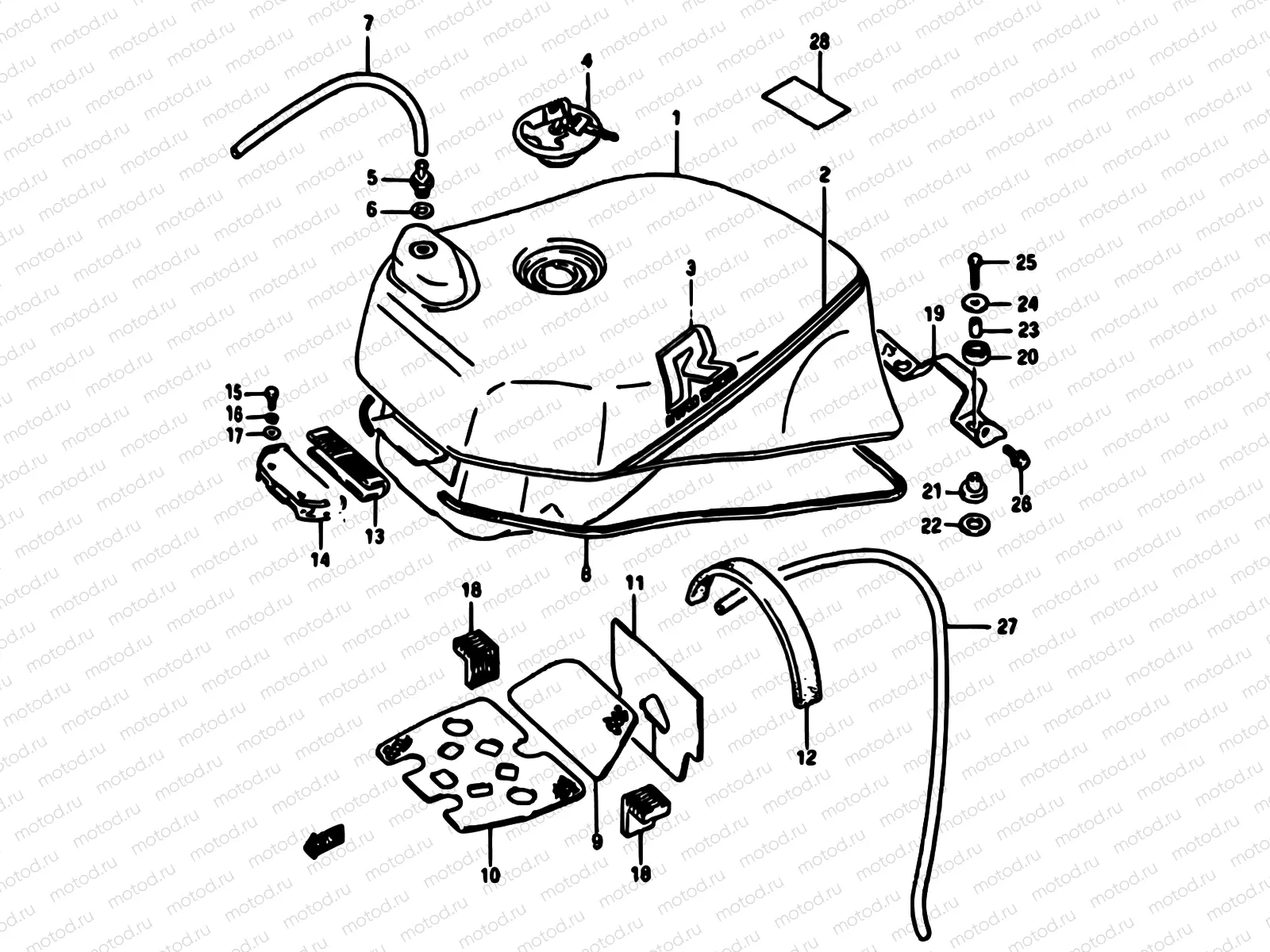

38 - FUEL TANK (MODEL H)

38 - FUEL TANK (MODEL H)
Например: 44100-28A50-9HE
1
44100-28A50-9HE
Tank assy,fuel
1
44100-28A50-7JK
Tank assy,fuel
1
44110-06BV0-13L
2
68110-27A30-9JH
.tape set,fuel tank
2
68110-27A30-9JJ
.tape set,fuel tank
3
68111-27A00-7TS
Emblem
1 906 ₽/шт
3
68111-27A00-7TW
Emblem
1 906 ₽/шт
4
44200-20841
Cap assy
5
44240-06B10
PLUG,FUEL TANK BREATHER
2 678 ₽/шт
6
09168-12012
Прокладка (12.5X20X2.5)
119 ₽/шт
7
09352-50005-600
ШЛАНГ
436 ₽/шт
8
68241-04X50-00B
MOLDING
1 696 ₽/шт
9
47166-03D00
Heat shield,fra
10
44192-27A01
11
44194-27A00
Heat shield,lower
12
44193-27A02
Heat shield,air cleaner
13
44511-27A10
Cushion
14
44521-27A00
Bracket,f.tank
15
09118-06086
Болт 6X25
1 680 ₽/шт
16
08321-0106A
Шайба
81 ₽/шт
17
08322-0106A
Шайба
81 ₽/шт
18
44545-27A10
Cushion,fuel ta
19
45211-27A00
Bracket,rear
20
09320-14017
CUSHION
114 ₽/шт
21
09320-10038
CUSHION
115 ₽/шт
22
09160-12088
WASHER(12.5X24X1.6)
1 560 ₽/шт
23
09180-06271
Кольцо/шайба
172 ₽/шт
24
09160-06501
Шайба
102 ₽/шт
25
01500-0635B
Болт
81 ₽/шт
26
09138-06038
Bolt
27
09352-50005-600
ШЛАНГ
436 ₽/шт
28
86932-73060
Ярлык топлива
162 ₽/шт
