Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX-R 750 SUZUKI GSX-R750 H SUZUKI 17 - CLUTCH

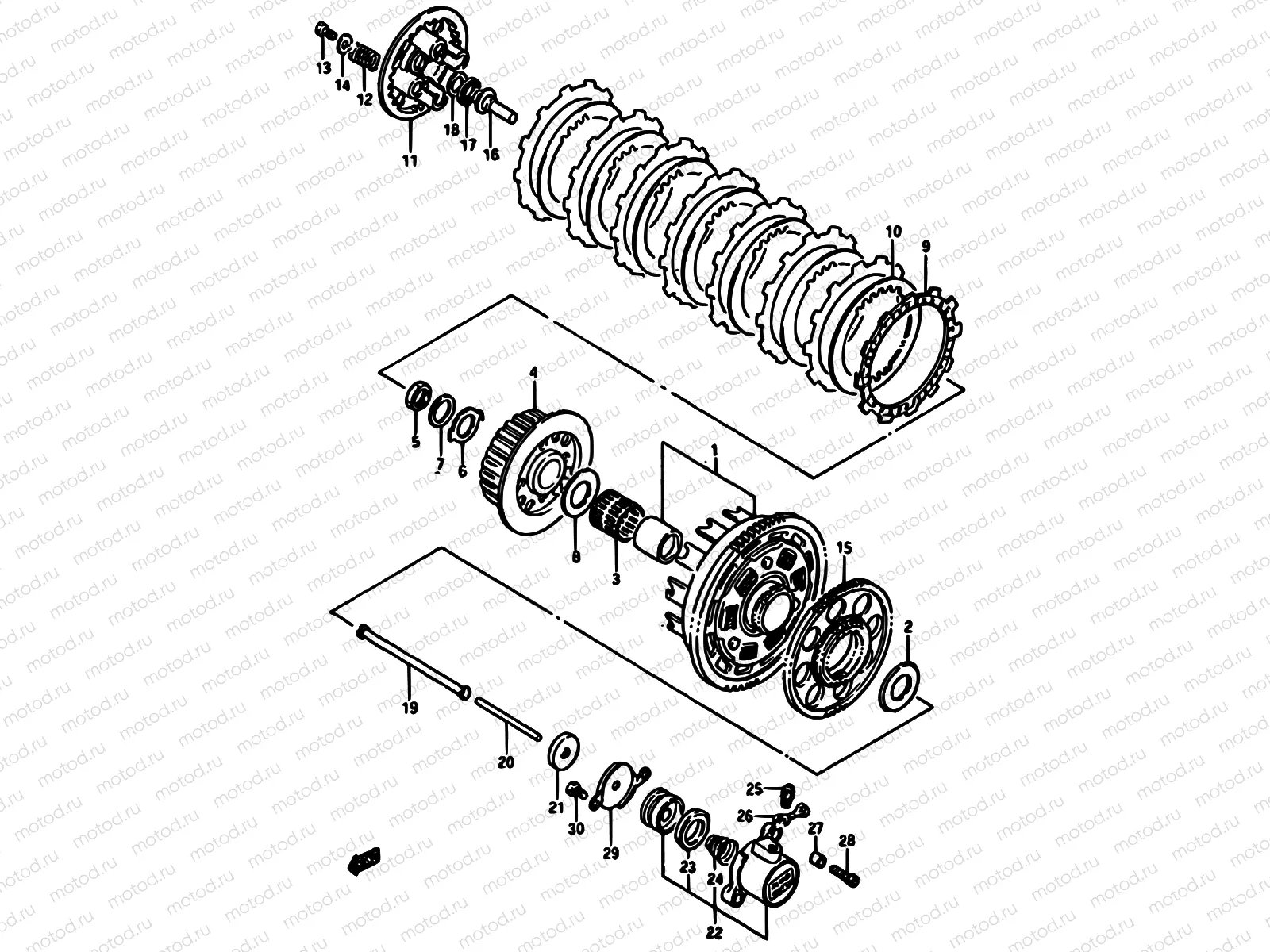

17 - CLUTCH

17 - CLUTCH

Например: 21200-27825

1

21200-27825

2

09160-25071

Шайба

8 090 ₽/шт

3

09263-35017

BEARING(35X40X35.8)

10 030 ₽/шт

4

21410-27A02

HUB,CLUTCH SLEEVE

9 775 ₽/шт

5

09140-22008

Гайка

485 ₽/шт

6

09169-22005

Шайба блокирующая

1 600 ₽/шт

7

09164-22007

Шайба

3 680 ₽/шт

8

09160-25056

WASHER

727 ₽/шт

9

21441-37430

ДИСК СЦЕПЛЕНИЯ

4 165 ₽/шт

10

21451-05A00

Диск сцепления

2 423 ₽/шт

11

21462-27A00

DISC,CLUTCH PRESSURE

3 617 ₽/шт

12

09440-20013

Пружина

275 ₽/шт

13

01500-0616B

Болт

1 330 ₽/шт

14

09160-06066

Шайба

102 ₽/шт

15

22721-27A03

GEAR,GENERATOR DRIVE

33 286 ₽/шт

16

23121-27A00

PIECE,CLUTCH PUSH

1 677 ₽/шт

17

09263-15003

Подшипник 15X28X2

532 ₽/шт

18

09160-15045

Шайба

211 ₽/шт

19

23110-27A00

ROD,CLUTCH

2 210 ₽/шт

20

23111-15501

ROD,CLUTCH PUSH,L

765 ₽/шт

21

09285-06015

САЛЬНИК УПЛОТНИТЕЛЬНЫЙ

840 ₽/шт

22

23160-08A03

CYLINDER,CLUTCH RELEASE

16 065 ₽/шт

23

23163-05A00

Стакан

238 ₽/шт

24

23164-05A00

Пружина

289 ₽/шт

25

59121-01A00

BLEEDER

1 226 ₽/шт

26

59122-01A00

CAP,BLEEDER

187 ₽/шт

27

04211-09129

Стопор

102 ₽/шт

28

07130-0625B

БОЛТ

97 ₽/шт

29

23117-46E00

КРЫШКА ЦИЛИНДРА СЦЕПЛЕНИЯ

617 ₽/шт

30

02112-0610B

Винт

81 ₽/шт
