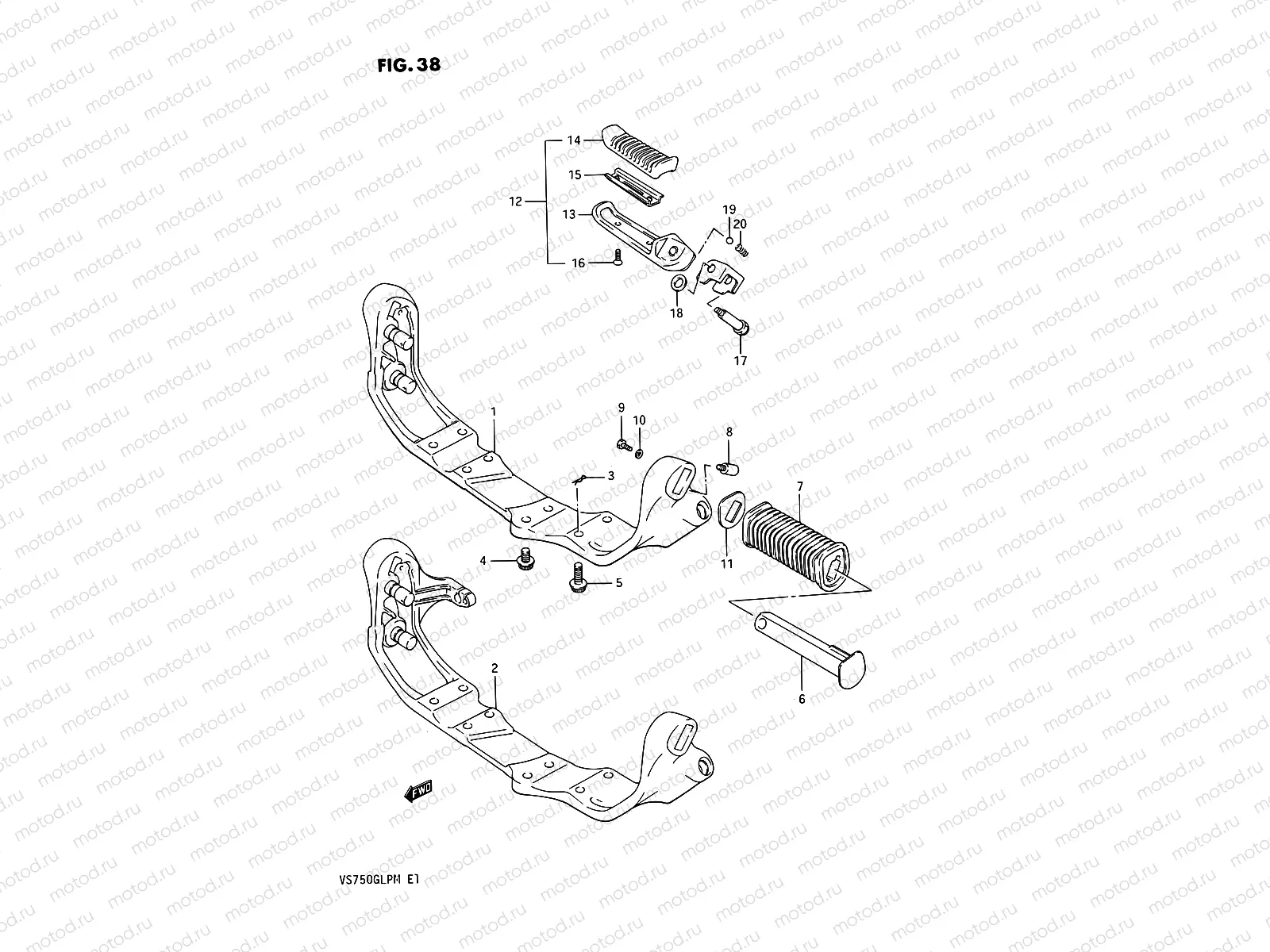

38 - FOOTREST (MODEL F/G)

38 - FOOTREST (MODEL F/G)
Например: 43510-38A00
1
43510-38A00
Bracket, front footrest
2
43510-38A30
Bracket, front footrest
2
43510-38A20
Bracket, front footrest
3
09385-08002
Clip
4
07120-0820A
Болт
1 840 ₽/шт
5
09106-08064
Болт
3 050 ₽/шт
6
43530-38A00
Repose pieds (Front, RH)
6
43540-38A00
Repose pieds (Front, LH)
7
43551-38A00
RUBBER,FR FOOTREST
1 445 ₽/шт
8
09106-06100
BOLT(6X8)
211 ₽/шт
9
01500-05127
Болт
1 210 ₽/шт
10
08321-0105A
Пластина замка
81 ₽/шт
11
43570-38A00
WASHER,FR FOOTREST,R
457 ₽/шт
11
43580-38A00
WASHER,FR FOOTREST,L
457 ₽/шт
12
43600-38A02
Repose pieds (PILLION RH)
12
43700-38A01
Repose pieds (PILLION LH)
13
43600-38A02
Repose pieds (PILLION RH)
13
43700-38A01
Repose pieds (PILLION LH)
14
43612-38A10
Footrest rubber (pillion)
15
43632-38A00
PLATE,RUBBER STOPPER
368 ₽/шт
16
02122-05167
Болт
82 ₽/шт
17
09111-06050
BOLT(6X34.5)
3 050 ₽/шт
18
08221-08164
SHIM
1 060 ₽/шт
19
06111-07004
Шарик-защёлка №1
81 ₽/шт
20
09440-05031
Пружина
97 ₽/шт
