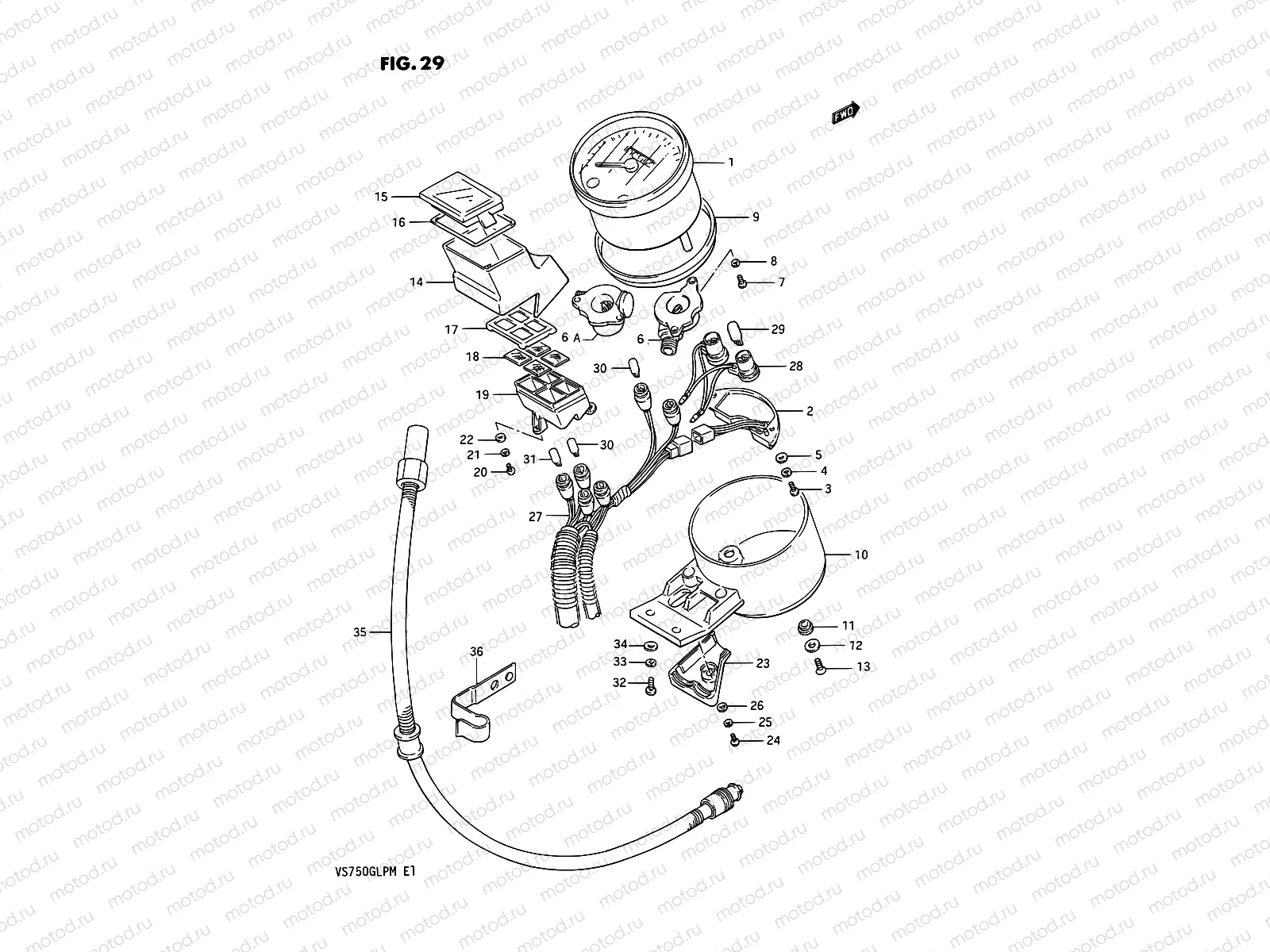

29 - SPEEDOMETER

29 - SPEEDOMETER

Например: 34110-38A30

1

34110-38A30

Speedometer (mile/kilo)

1

34110-38A60

Speedometer (mile/kilo)

1

34110-38A70

Speedometer

1

34110-39A20

Speedometer

1

34110-39A60

Speedometer (mile/kilo)

2

34490-38A00

Unit, water temp warning

3

02112-0308A

Болт

1 060 ₽/шт

4

09162-03001

Шайба блокирующая

900 ₽/шт

5

08322-0103B

Шайба

1 370 ₽/шт

6

34131-38A00

Box,gear

7

02112-04107

Болт

82 ₽/шт

8

08321-0104A

Пластина замка

82 ₽/шт

9

34288-38A00

Cushion, meter

10

34193-38A00

Cover, meter

11

34189-05A31

Cushion

364 ₽/шт

12

34181-38A00

Шайба

231 ₽/шт

13

02112-04087

Винт 4X8

85 ₽/шт

14

36381-38A00

Box, pilot lamp

15

36393-38A00

Lens

16

36395-38A00

CUSHION

489 ₽/шт

17

36386-38A00

PLATE,PILOT LENS

438 ₽/шт

18

36300-38810

Lens set, pilot lamp

19

36382-38A00

Case, pilot lamp

20

02112-0308A

Болт

1 060 ₽/шт

21

09162-03001

Шайба блокирующая

900 ₽/шт

22

08322-0103B

Шайба

1 370 ₽/шт

23

34152-38A00

Cover, pilot box

24

02112-04087

Винт 4X8

85 ₽/шт

25

08321-0104A

Пластина замка

82 ₽/шт

26

08322-01047

Шайба

85 ₽/шт

27

34173-38A20

Socket, meter no.1

28

34174-38A00

Socket, meter no.2

29

09471-12028

Лампочка

210 ₽/шт

30

09471-12085-LCP

Bulb (12v3w)

31

09471-12108

ЛАМПА НАКАЛИВАНИЯ

226 ₽/шт

32

02112-3616A

Болт

1 210 ₽/шт

33

08321-01067

Шайба, стопорная

81 ₽/шт

34

08322-0106A

Шайба

81 ₽/шт

35

34910-39A00

CABLE ASSY,SPEEDOMETER

13 431 ₽/шт

36

34938-38A02

GUIDE,SPEEDOMETER CABLE

1 156 ₽/шт
