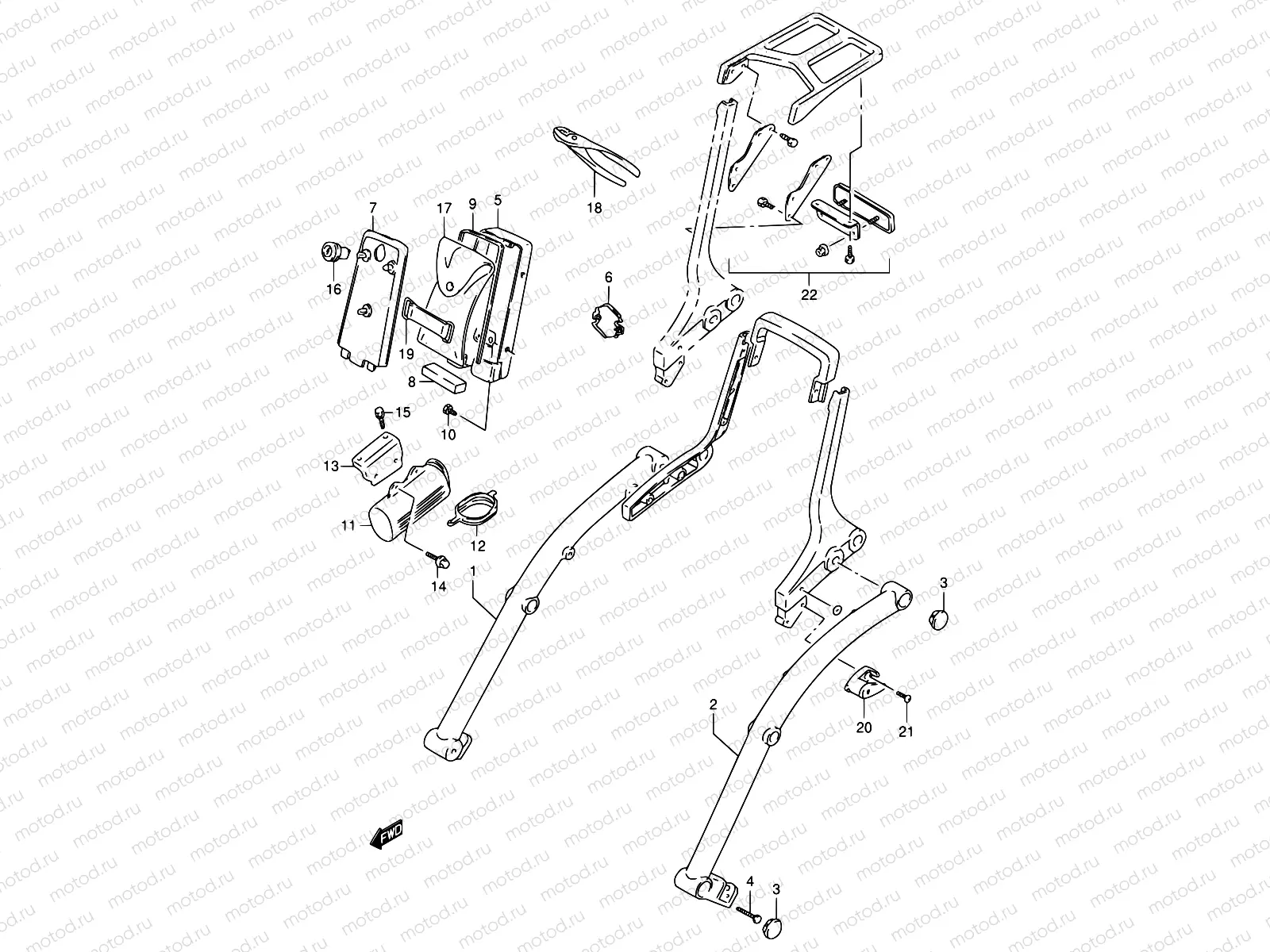

37B - FRAME HANDLE GRIP (MODEL T/V)

37B - FRAME HANDLE GRIP (MODEL T/V)

Например: 41610-38A20

1

41610-38A20

GRIP,FRAME HANDLE RH

27 957 ₽/шт

2

41620-38A20

GRIP,FRAME HANDLE LH

27 957 ₽/шт

3

95672-24A00

CAP,FRAME HANDLE GRIP

275 ₽/шт

4

01500-0820A

Болт

85 ₽/шт

5

47430-38B11-22S

Holder tool,rr.

6

68261-38A30

EMBLEM,TOOL HOLDER RR

2 463 ₽/шт

7

47441-38B00

HOLDER,TOOL FR

3 060 ₽/шт

8

47438-38B00

CUSHION,TOOL BACK

1 818 ₽/шт

9

47437-38B00

MOLDING,TOOL HOLDER RR

528 ₽/шт

10

01550-0612B

БОЛТ

81 ₽/шт

11

41551-38201

HOLDER,TOOL

2 111 ₽/шт

12

41552-37210

КРЫШКА ОТСЕКА ИНСТРУМЕНТОВ

969 ₽/шт

13

47440-38A10

Plate, tool holder

14

09116-06170

Болт M6X16

85 ₽/шт

15

09117-06065

Болт 6X16

2 030 ₽/шт

16

95700-24831

LOCK SET,TOOL HOLDER

5 005 ₽/шт

17

09800-21070

Tool assy

18

09812-00009

Plier, 150

19

09462-00034

ХОМУТ

510 ₽/шт

20

95700-38821

LOCK SET,HELMET

3 499 ₽/шт

21

02112-05127

Болт

81 ₽/шт

22

46300-38822

Carrier
