Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI VS 800 Intruder SUZUKI VS800GL T Intruder (E02,E04,E17,E18,E22,E25,E34,E37) SUZUKI (VIN: JS1VS52, VS52A111) 34 - FRAME (MODEL N/P/R/S/T)

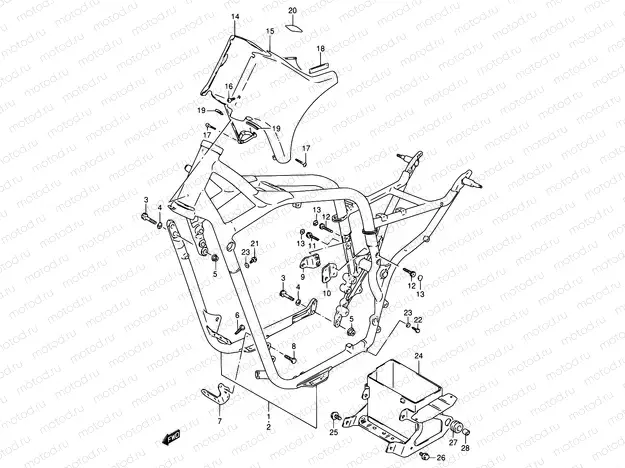

34 - FRAME (MODEL N/P/R/S/T)

34 - FRAME (MODEL N/P/R/S/T)

Например: 41101-39820-03F

1

41101-39820-03F

rame set (blue)

1

41101-39820-19A

Frame set (red)

1

41101-39821-19A

Frame set (red)

1

41101-39820-0CG

Frame set (blue)

1

41101-39821-33J

Frame set (black)

2

41101-39813-20F

rame set

2

41101-39813-1ZV

2

41101-39822-33J

Frame set (black)

2

41101-39822-20F

rame set (maroon)

3

09106-10019

BOLT(10X33)

2 310 ₽/шт

4

09164-10010

Шайба

3 250 ₽/шт

5

08319-3110B

Гайка

1 920 ₽/шт

6

01550-0820A

БОЛТ

102 ₽/шт

7

41920-38A00-019

Plate,eng mount

8

01570-0816A

БОЛТ

102 ₽/шт

9

41950-38A11-019

PLATE,ENGINE MOUNT NO.3,R

2 757 ₽/шт

10

41960-38A10-019

PLATE,ENGINE MOUNT NO.3,L

2 248 ₽/шт

11

07130-0830A

БОЛТ (хром)

2 070 ₽/шт

12

09106-08070

Болт верхний

3 280 ₽/шт

13

09250-06004

CAP(OD:14.5)

97 ₽/шт

14

47350-38A01-20F

Cvr,fr. head r.

14

47350-38A01-1ZV

RH COVER

15

47360-38A01-20F

Cover, frame head lh (maroon)

15

47360-38A01-1ZV

Cover, frame head lh (green)

16

02142-0610B

Винт держатель

85 ₽/шт

17

02112-0425B

Болт

85 ₽/шт

18

33652-07D00

КОЖУХ

299 ₽/шт

19

68241-04X50-300

MOLDING

262 ₽/шт

20

47358-38A00

TAPE,FRAME HEAD COVER

559 ₽/шт

21

09360-06007

Болт соединяющий

179 ₽/шт

22

01550-0610B

Болт

85 ₽/шт

23

09168-06004

Кольцо прокладочное

113 ₽/шт

24

41540-38A12

HOLDER,BATTERY

12 395 ₽/шт

25

01550-1016A

Болт

1 840 ₽/шт

26

01550-0616B

БОЛТ

81 ₽/шт

27

09320-12031

САЙЛЕНТБЛОК

204 ₽/шт

28

09301-08009

Кольцо/шайба

3 400 ₽/шт
