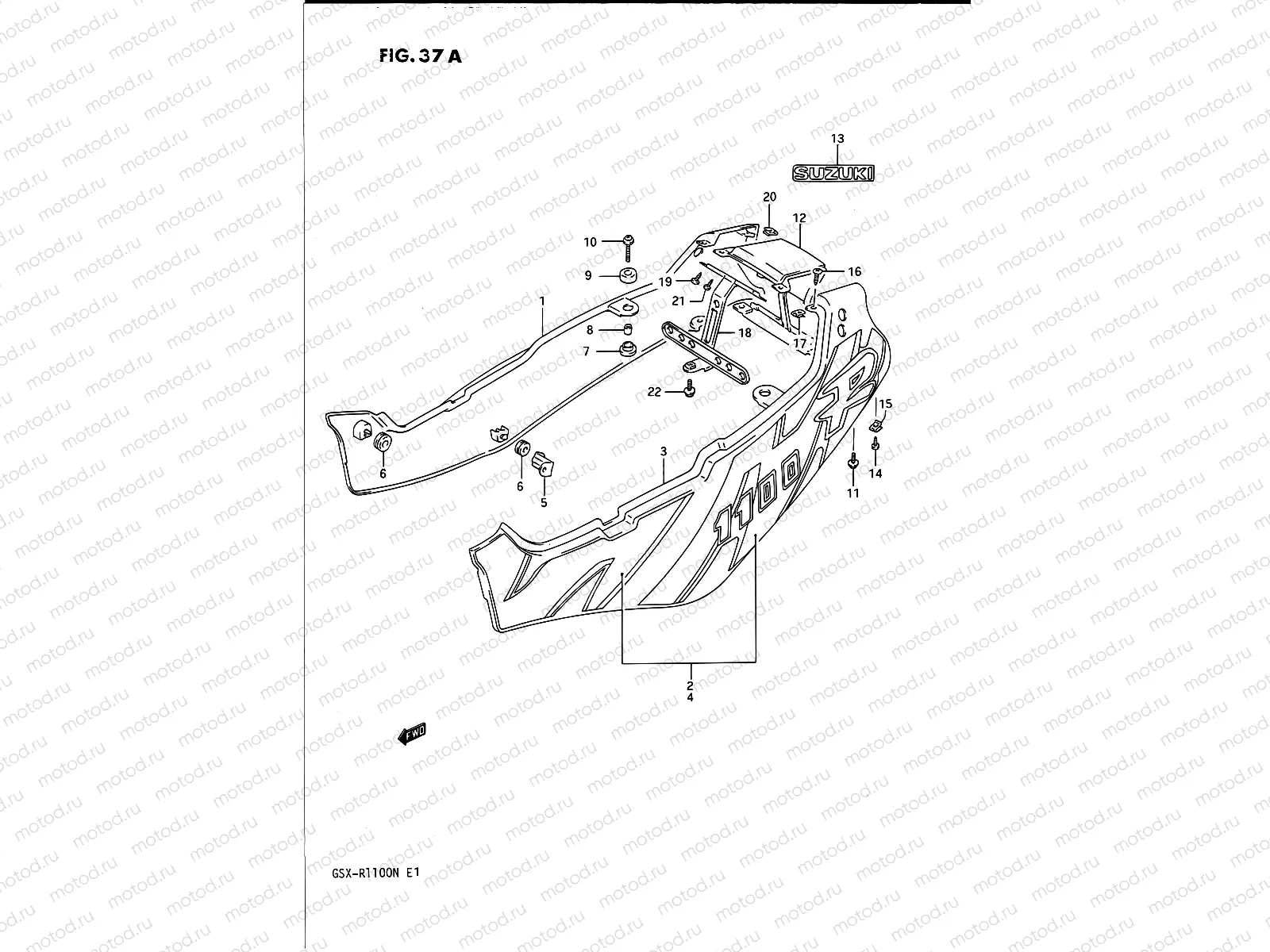

37A - FRAME COVER (MODEL N)

37A - FRAME COVER (MODEL N)
Например: 47110-41C30-0JW
1
47110-41C30-0JW
over,frame,rh
1
47110-41C30-33J
over comp,fram
1
47110-41C30-36X
over, frame rh (black)
2
68130-41C10-1MF
.tape, rh
2
68130-41C10-1MG
.tape, rh
2
68130-41C10-1MA
.tape, rh
3
47210-41C30-0JW
over,frame,lh
3
47210-41C30-33J
over,frame,lh
3
47210-41C30-36X
over, frame lh (black)
4
68140-41C10-1MF
Tape.frmc.,l.
4
68140-41C10-1MG
Tape.frmc.,l.
4
68140-41C10-1MA
.tape, lh
5
43815-41C0V
Bracket,frame c
6
09320-08527
Cushion
1 640 ₽/шт
7
45326-17C00
USHION,FRAME COVER LWR
786 ₽/шт
8
09180-06286
Кольцо/шайба
162 ₽/шт
9
45149-04A00
CUSHION,TAIL COVER UPR
162 ₽/шт
10
09136-06083
Винт 6X30
1 720 ₽/шт
11
09136-06017
Винт 6X16
85 ₽/шт
12
47310-41C20-0YX
over,frame
12
47310-41C20-36X
over,frame
13
68166-31310-0FP
Emblem, suzuki
14
03141-1412B
Болт
82 ₽/шт
15
09148-04024
Гайка
97 ₽/шт
16
03241-1512B
Болт
82 ₽/шт
17
09148-05019
Гайка
102 ₽/шт
18
47410-41C00
Plate,electric
19
03241-1512B
Болт
82 ₽/шт
20
09148-05038
ГАЙКА
97 ₽/шт
21
03541-0412A
ШАЙБА
85 ₽/шт
22
09116-06109
Болт
1 490 ₽/шт
