Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX-R 1100 SUZUKI GSX-R1100 N (E01) SUZUKI 36 - SEAT

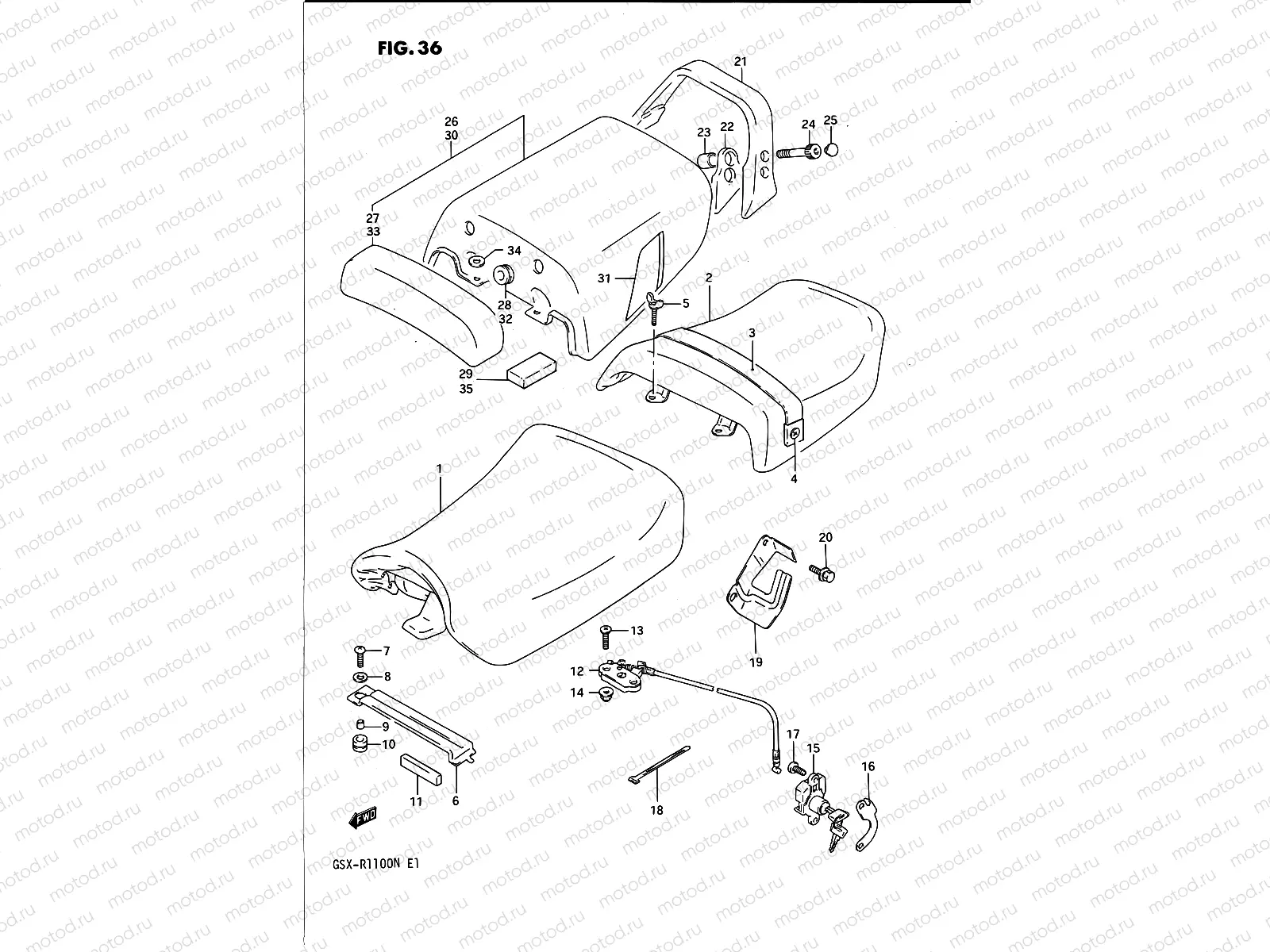

36 - SEAT

36 - SEAT

Например: 45100-41C00-58R

1

45100-41C00-58R

Seat assy

2

45300-41C11-58R

Seat, pillion

2

45300-41C01-58R

3

45180-41C00-58R

.band, seat (black)

4

45186-06B00

OLT

371 ₽/шт

5

09139-06056

Винт 6X20

187 ₽/шт

6

45271-40C0V

PLATE,SEAT SUPPORT RR

12 082 ₽/шт

7

02142-0620B

Болт

1 060 ₽/шт

8

09160-06052

Шайба

136 ₽/шт

9

09180-06248

Кольцо/шайба

179 ₽/шт

10

09320-08501

САЙЛЕНТБЛОК

1 880 ₽/шт

11

45272-17C02

USHION,PLATE SEAT SUPPORT

405 ₽/шт

12

45220-17C00

BRACKET,SEAT SUPPORT RR

5 005 ₽/шт

13

02122-0625B

Болт

1 090 ₽/шт

14

08319-31067

Гайка

153 ₽/шт

15

45700-19841

Cap set,seat

16

45123-17C00

Plate, seat lock

17

09139-06075

Винт,6X12

1 560 ₽/шт

18

09407-09402

CLAMP

1 410 ₽/шт

19

45290-41C01

Plate, seat lock cable

20

01550-0616B

БОЛТ

81 ₽/шт

21

46211-41C00-0JW

Handle,pill.rid

21

46211-41C00-019

Handle,pillion

22

46238-41C01

ushion,pillion

23

09180-08178

SPACER(8.5X16X34)

5 630 ₽/шт

24

07130-0865B

Болт

2 620 ₽/шт

25

09250-06004

CAP(OD:14.5)

97 ₽/шт

30

45500-41821-0JW

30

45500-41821-33J

Box set,seat tl

31

68160-41C00-M13

.tape set, tail box

31

68160-41C00-M14

.tape set, tail box

31

68160-41C00-M15

.tape set, tail box

32

09320-12031

САЙЛЕНТБЛОК

204 ₽/шт

33

46220-41C00-58R

Backrest,seat

34

09160-06084

Шайба 6.5X18X1

81 ₽/шт

35

51827-01A00

CUSHION,HEAD LAMP HOUSING

533 ₽/шт
