Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI VS 750 GL Intruder SUZUKI VS750GLF J Intruder (E04,E18,E22,E34,E75,E77) SUZUKI 37 - PROP STAND - REAR BRAKE (MODEL G/H/J/K/L/M)

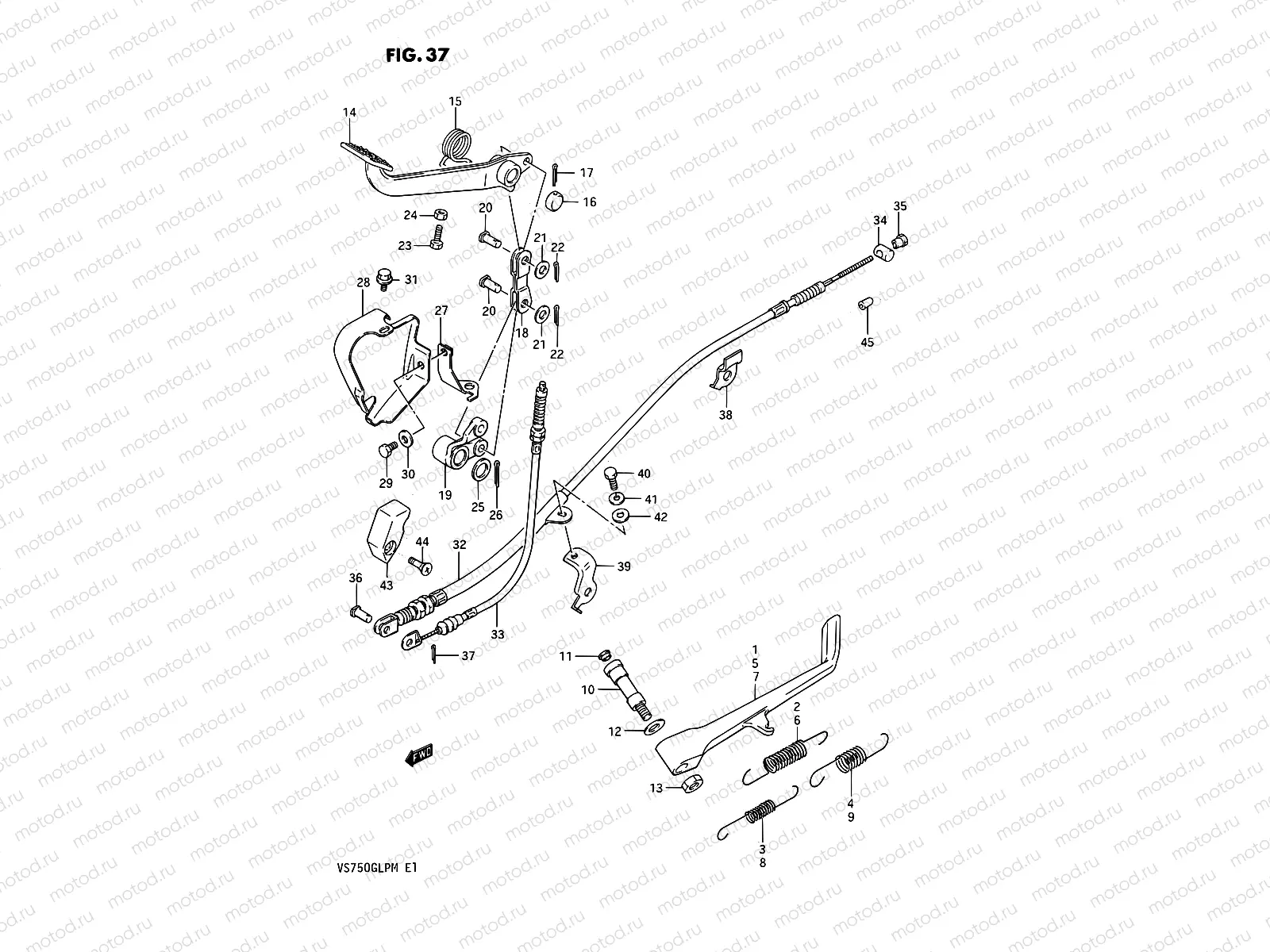

37 - PROP STAND - REAR BRAKE (MODEL G/H/J/K/L/M)

37 - PROP STAND - REAR BRAKE (MODEL G/H/J/K/L/M)

Например: 09443-09034

3

09443-09034

Spring, inner

4

09443-16011-XC0

Spring

5

42310-38A00

Stand, prop

5

42310-24B01

STAND,PROP

7 351 ₽/шт

6

09443-15026-XC0

Spring

7

42310-24B01

STAND,PROP

7 351 ₽/шт

8

09443-13025

Пружина

4 570 ₽/шт

9

09443-18021

Пружина

4 110 ₽/шт

10

42341-38B01

OLT,PROP STAND

708 ₽/шт

11

43575-34500

CAP

170 ₽/шт

12

09181-15158

ШАЙБА САТЕЛЛИТОВ ДИФФЕРЕНЦИАЛА

194 ₽/шт

13

08310-00107

Гайка

85 ₽/шт

14

43100-38A31

PEDAL ASSY,BRAKE

9 071 ₽/шт

15

09448-31034

Пружина

437 ₽/шт

16

43135-07A02

CAP,BRAKE PEDAL

559 ₽/шт

17

04111-3030A

Стопор

81 ₽/шт

18

43230-38A02

LINK,BRAKE ROD NO.1

1 443 ₽/шт

19

43260-38A22

rm,brake pedal

20

09200-08055

PIN

2 310 ₽/шт

21

08322-01087

Шайба

81 ₽/шт

22

04111-2015A

Штифт

81 ₽/шт

23

01500-06207

Болт

81 ₽/шт

24

08310-00067

Гайка

81 ₽/шт

25

09160-16043

Шайба

1 020 ₽/шт

26

04111-3030A

Стопор

81 ₽/шт

27

43290-38A10

Bracket, brake cover

28

43295-38A31

COVER,BRAKE

4 457 ₽/шт

29

09128-06044

SCREW(6X10)

129 ₽/шт

30

09160-06094

Шайба 6.5X15X1

97 ₽/шт

31

01547-06107

BOLT

980 ₽/шт

32

58510-38A01

CABLE,RR BRAKE

10 322 ₽/шт

33

58830-38A00

CABLE,STOP LAMP SWITCH

2 444 ₽/шт

34

09209-13018

Стопор

204 ₽/шт

35

09150-06010

Гайка

194 ₽/шт

36

09200-05001

ШТИФТ

129 ₽/шт

37

04111-2015A

Штифт

81 ₽/шт

38

58721-38A00

CLAMP,RR BRAKE CABLE

489 ₽/шт

39

43275-38A00

BRACKET,RR BRAKE CABLE

798 ₽/шт

40

01500-0616B

Болт

1 330 ₽/шт

41

08321-01067

Шайба, стопорная

81 ₽/шт

42

08322-0106A

Шайба

81 ₽/шт

43

58631-38A00

GUIDE,RR BRAKE CABLE

457 ₽/шт

44

02122-0620B

Винт

1 090 ₽/шт

45

61442-33310

CAP,GREASE NIPPLE

170 ₽/шт
