Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1300 R Hayabusa SUZUKI GSX1300R K1 Hayabusa (E03,E28,E33) SUZUKI (VIN: JS1A1111) 37 - FUEL TANK (MODEL X)

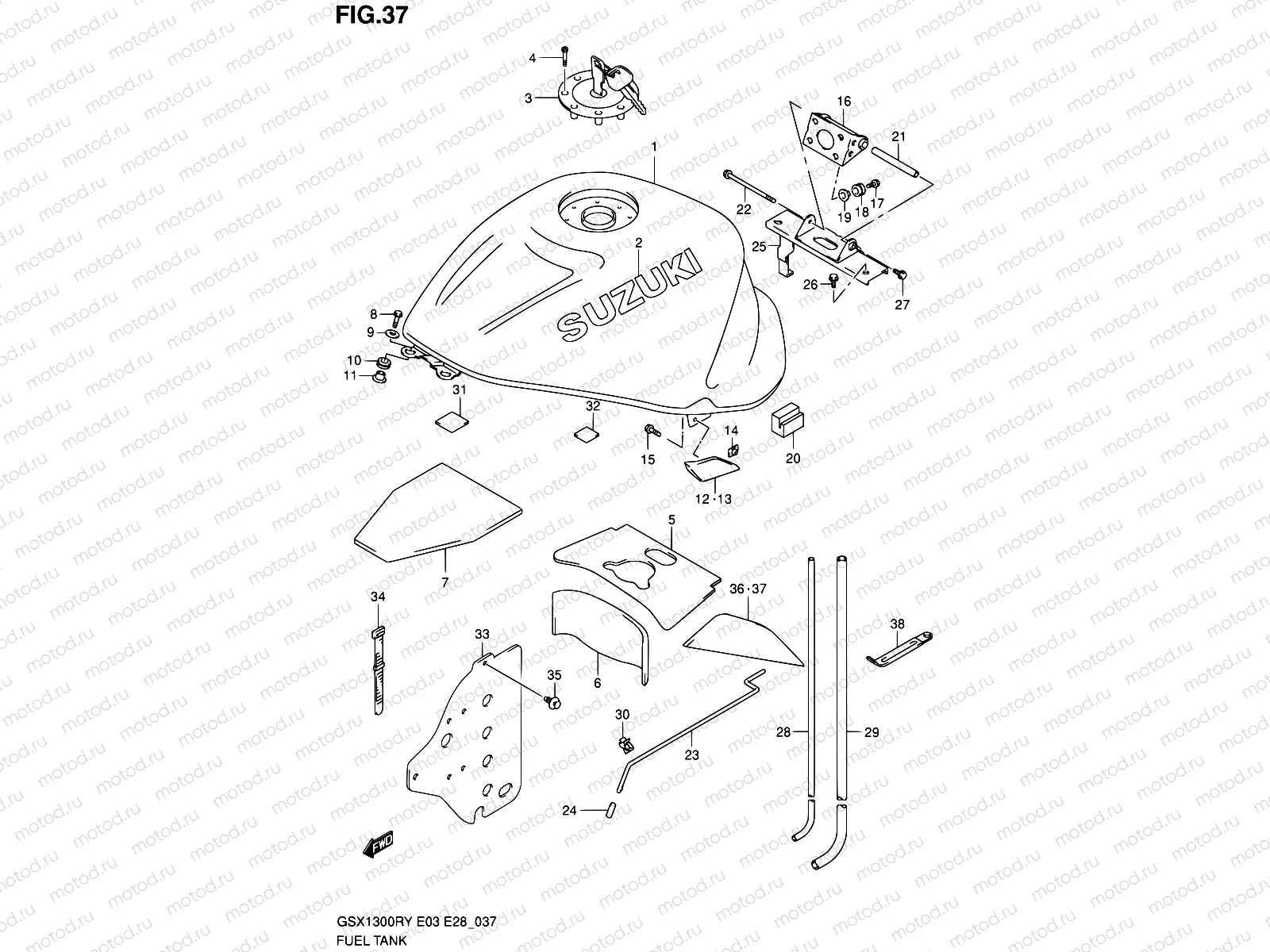

37 - FUEL TANK (MODEL X)

37 - FUEL TANK (MODEL X)

Например: 44100-24F21-M9S

1

44100-24F21-M9S

Tank assy, fuel (M9S)

1

34800-24820

Jauge de niveau de carburant

1

44100-24F10-M9S

Tank assy, fuel

1

44100-24F10-M9T

ank assy, fuel

2

68111-32B10-29F

Emblem (Brown)

2

68111-32B10-Y7L

Emblem (Black)

3

44201-33811

Fuel cap

3

44200-33890

CAP ASSY,FUEL TANK FILLER

23 069 ₽/шт

4

09106-05017

БОЛТ

113 ₽/шт

5

44191-24F01

SHIELD,FUEL TANK HEAT NO.1

5 279 ₽/шт

6

44192-24F00

SHIELD,FUEL TANK HEAT NO.2

4 927 ₽/шт

7

44193-24F00

SHIELD,FUEL TANK HEAT NO.3

9 384 ₽/шт

8

09139-06029

Болт

178 ₽/шт

9

09160-06084

Шайба 6.5X18X1

81 ₽/шт

10

09320-09009

РЕЗИНКА

187 ₽/шт

11

09169-06062

Кольцо/шайба

114 ₽/шт

12

44533-24F00

COVER,FUEL TANK SIDE,R

1 267 ₽/шт

13

44543-24F00

COVER,FUEL TANK SIDE,L

1 267 ₽/шт

14

44540-24F10

PLATE,FUEL TANK SIDE

817 ₽/шт

15

02142-0610B

Винт держатель

85 ₽/шт

16

44560-24F01

BRACKET,FUEL TANK RR NO.1

2 424 ₽/шт

17

09116-06152

BOLT(6X20)

146 ₽/шт

18

09320-08001

Damper

19

09169-06062

Кольцо/шайба

114 ₽/шт

20

44541-24F01

Cushion,fuel Tank Side

536 ₽/шт

21

44561-33E10

SPACER,FUEL TANK RR

1 427 ₽/шт

22

01550-0895B

Болт

2 620 ₽/шт

23

44574-33E01

STAY,FUEL TANK

3 315 ₽/шт

24

09251-07003

КРЫШКА ВОЗДУШНОГО ФИЛЬТРА

162 ₽/шт

25

44550-24F00

Кронштейн, задний

4 653 ₽/шт

26

01550-0812B

Болт

97 ₽/шт

27

01550-0616B

БОЛТ

81 ₽/шт

28

44423-24F01

Hose,fuel Tank Breather

888 ₽/шт

29

09352-70113-600

Hose, drain

30

09403-05310

CLAMP

2 030 ₽/шт

31

44534-24F00

CUSHION

223 ₽/шт

32

44534-24F00

CUSHION

223 ₽/шт

33

44271-24F00

SHEET,HEAT SHIELD RUBBER

6 217 ₽/шт

34

09407-18402

Струбцина (L:165)

211 ₽/шт

35

09409-06322-5PK

ХОМУТ МАЛЫЙ

306 ₽/шт

36

44194-24F00

SHIELD,FUEL TANK HEAT,R

3 578 ₽/шт

37

44195-24F00

Shield,t.heat l

38

09404-06039

Clamp(L:65)

194 ₽/шт
