Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1300 R Hayabusa SUZUKI GSX1300R K1 Hayabusa (E03,E28,E33) SUZUKI (VIN: JS1A1111) 13 - PUMP ASSY (MODEL X/Y)

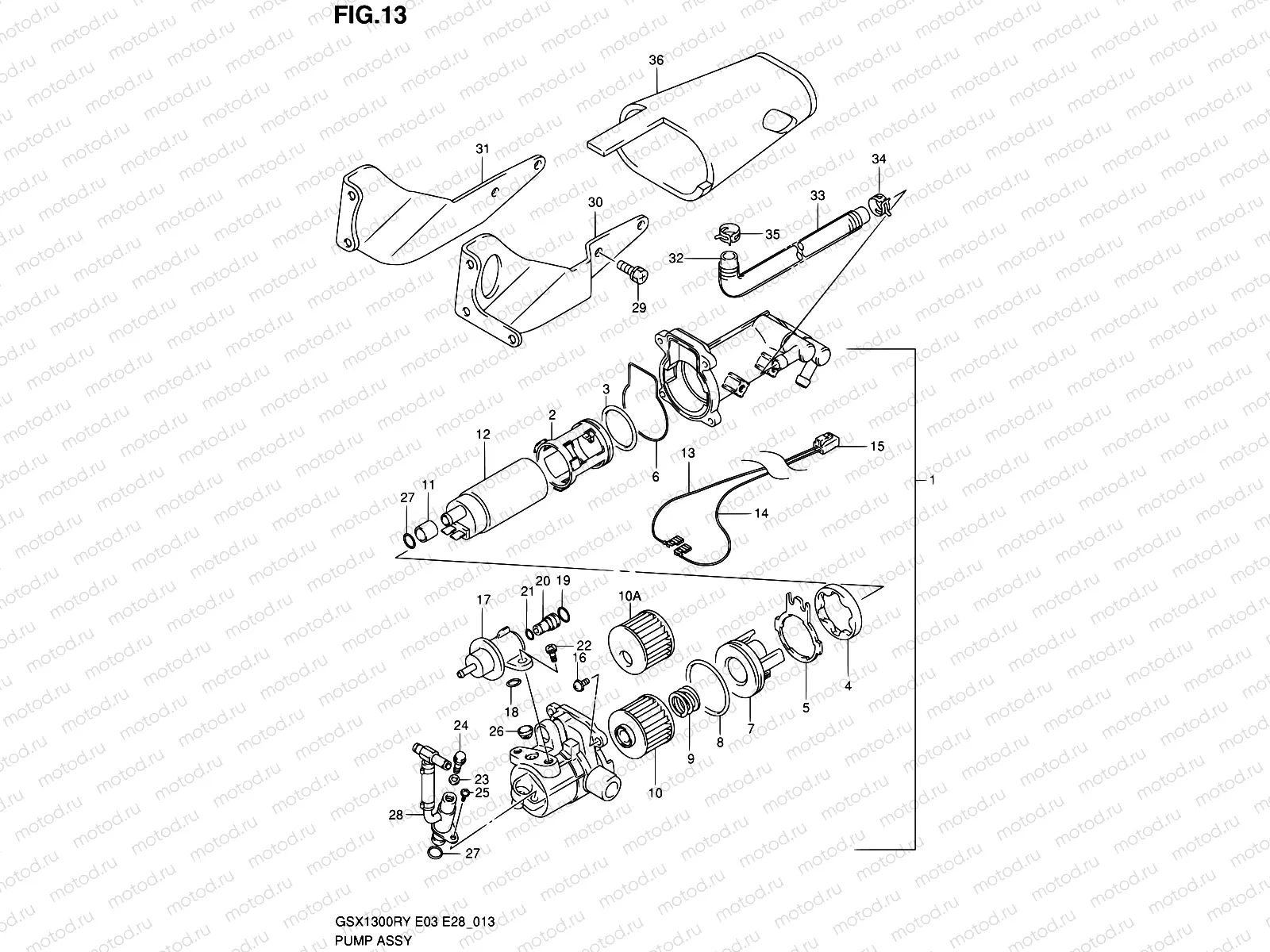

13 - PUMP ASSY (MODEL X/Y)

13 - PUMP ASSY (MODEL X/Y)

Например: 15100-24F31

1

15100-24F31

Pump Assy,fuel

88 264 ₽/шт

2

15130-24F10

Изолятор

18 744 ₽/шт

3

15142-24F00

O RING

4 420 ₽/шт

4

15141-24F00

Изолятор

3 304 ₽/шт

5

15143-24F00

PLATE,STAY

1 627 ₽/шт

6

15144-24F00

.packing

7

15145-24F00

.collar

7

15145-24F30

Втулка тяги КПП

2 717 ₽/шт

8

15146-24F00

O RING

1 795 ₽/шт

9

15151-24F00

Пружина

399 ₽/шт

9

15151-24F30

Пружина

399 ₽/шт

10

15410-24F00

STRAINER,FUEL

14 025 ₽/шт

10

15152-24F30

STRAINER,FUEL

5 357 ₽/шт

11

15155-24F00

Втулка тяги КПП

1 470 ₽/шт

12

15180-24F00

Насос топливный

39 882 ₽/шт

13

15147-24F00

Жгут проводов

2 307 ₽/шт

14

15148-24F00

HARNESS(-)

2 307 ₽/шт

15

15154-24F00

HOUSING,CONNECTOR

344 ₽/шт

16

15153-24F00

Болт

219 ₽/шт

17

15610-24F00

REGULATOR ASSY,PRESSURE

19 688 ₽/шт

18

15156-24F00

O RING

481 ₽/шт

19

15157-24F00

O RING

481 ₽/шт

20

15158-24F00

JOINT

3 656 ₽/шт

21

15159-24F00

O RING

399 ₽/шт

22

15161-24F00

Болт

235 ₽/шт

23

15162-24F00

PACKING

1 236 ₽/шт

24

15163-24F00

Vis

25

15164-24F00

Болт

399 ₽/шт

26

15165-24F00

Стрейнер

504 ₽/шт

27

15721-24F00

O-RING

468 ₽/шт

28

15170-24F00

PIPE SET

17 652 ₽/шт

29

13611-24F10

Болт

1 114 ₽/шт

30

15211-24F00

Plate,fuel pump

31

15212-24F00

Plate,fuel pump

32

15801-24F00

HOSE,FUEL RETURN

1 518 ₽/шт

32

15801-24F10

HOSE,FUEL RETURN

2 261 ₽/шт

33

09440-17020-XC0

Пружина

1 276 ₽/шт

34

09401-13417

ХОМУТ МАЛЫЙ

170 ₽/шт

34

09401-14404

CLIP

1 330 ₽/шт

35

09401-11415

CLIP

113 ₽/шт

35

09401-12405

CLIP

170 ₽/шт

36

15310-24F00

Cover,fuel pump
