Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSX-R 400 SUZUKI GSX-R400R L SUZUKI 37 - FRAME COVER (MODEL L)

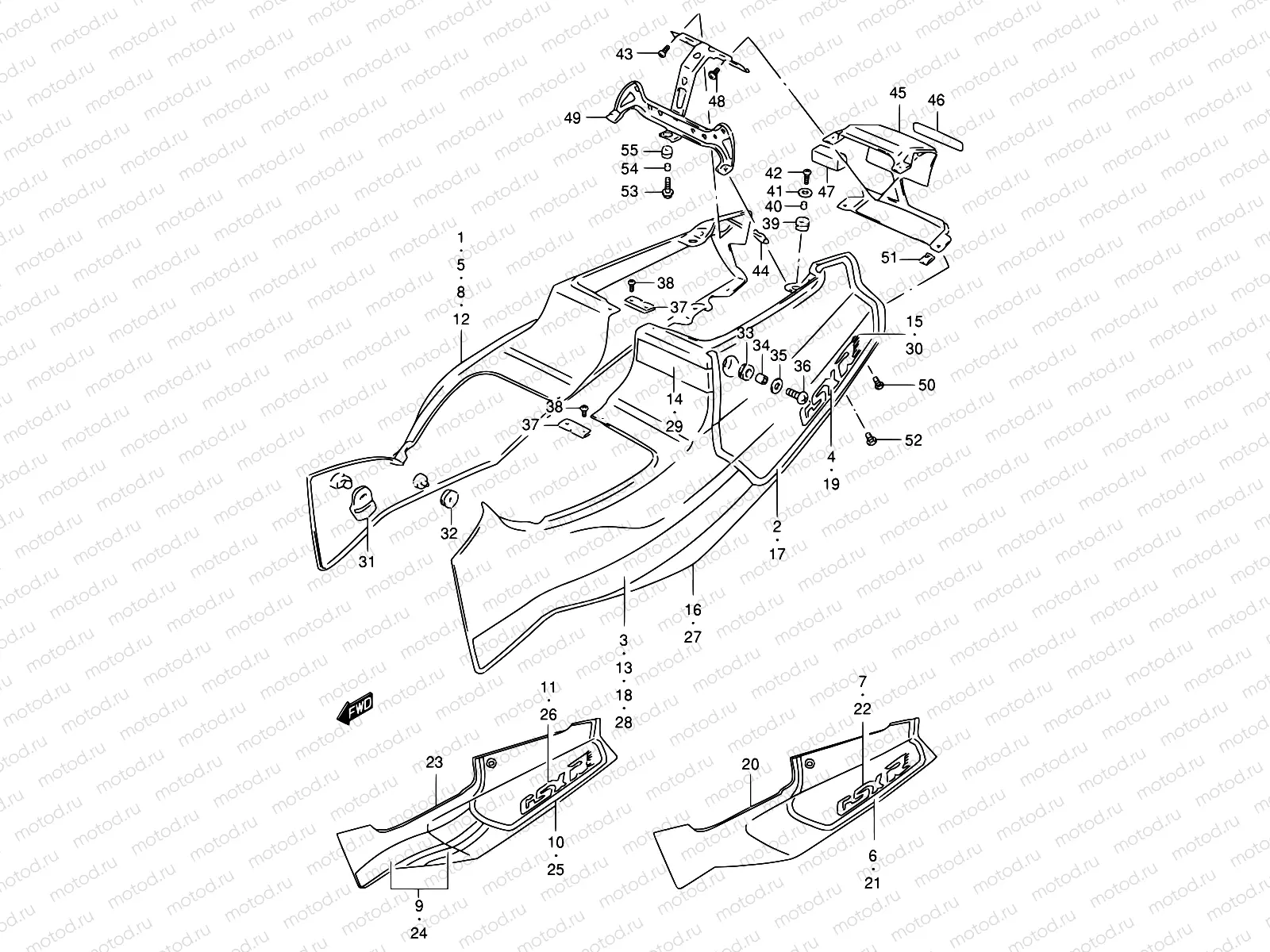

37 - FRAME COVER (MODEL L)

37 - FRAME COVER (MODEL L)

Например: 47110-33C00-3SL

1

47110-33C00-3SL

over, frame rh

2

68130-33C00-0NE

.tape set, rh (blue)

3

68135-33C00-0MB

.tape, rh

4

68131-33C00-D15

.emblem

5

47110-33C10-D23

over, frame rh

6

68135-33C10-16B

.tape, rh (silver)

7

68131-33C10-D23

.emblem

8

47110-33C20-C67

over, frame rh

9

68130-33C10-D27

.tape set, rh

10

68135-33C10-0ED

.tape, rh

11

68131-33C10-80A

.emblem

16

47210-33C00-3SL

over, frame lh

17

68140-33C00-0NE

.tape set, lh (blue)

18

68145-33C00-0MB

.tape, lh

19

68131-33C00-D15

.emblem

20

47210-33C10-D23

over, frame lh

21

68145-33C10-16B

.tape, lh (silver)

22

68131-33C10-D23

.emblem

23

47210-33C20-C67

over, frame lh

24

68140-33C10-D27

.tape set, lh

25

68145-33C10-0ED

.tape, lh

26

68131-33C10-80A

.emblem

31

47164-12C01

Damper

32

09320-08527

Cushion

1 640 ₽/шт

33

94433-26B01

Cushion

34

09180-06258

SPACER(6.5X9X6.7)

1 410 ₽/шт

35

09160-06054

Шайба

129 ₽/шт

36

09139-06050

Болт

187 ₽/шт

37

47168-12C00

Nut,cntr cover

38

09139-05021

Винт (5X12)

81 ₽/шт

39

94433-26B01

Cushion

40

09180-06258

SPACER(6.5X9X6.7)

1 410 ₽/шт

41

09160-06054

Шайба

129 ₽/шт

42

09139-06063

Винт

2 230 ₽/шт

43

03241-1512B

Болт

82 ₽/шт

44

09148-05019

Гайка

102 ₽/шт

45

47310-33C00-0JW

over, frame center (white)

45

47310-33C00-0UL

over, frame center (silver)

45

47310-33C00-33J

over, frame center (black)

46

68166-31310-0NE

MBLEM, SUZUKI

46

68166-31300-16B

.emblem (silver)

46

68166-31310-13L

Emblem,"suzuki"

375 ₽/шт

47

47191-22D00

RUBBER

282 ₽/шт

48

03242-0412B

Болт

85 ₽/шт

49

47410-33C00

Bracket, tail lamp

50

03241-1512B

Болт

82 ₽/шт

51

09148-05019

Гайка

102 ₽/шт

52

09136-06017

Винт 6X16

85 ₽/шт

53

01500-06207

Болт

81 ₽/шт

54

09180-06248

Кольцо/шайба

179 ₽/шт

55

09320-08501

САЙЛЕНТБЛОК

1 880 ₽/шт
